SB3

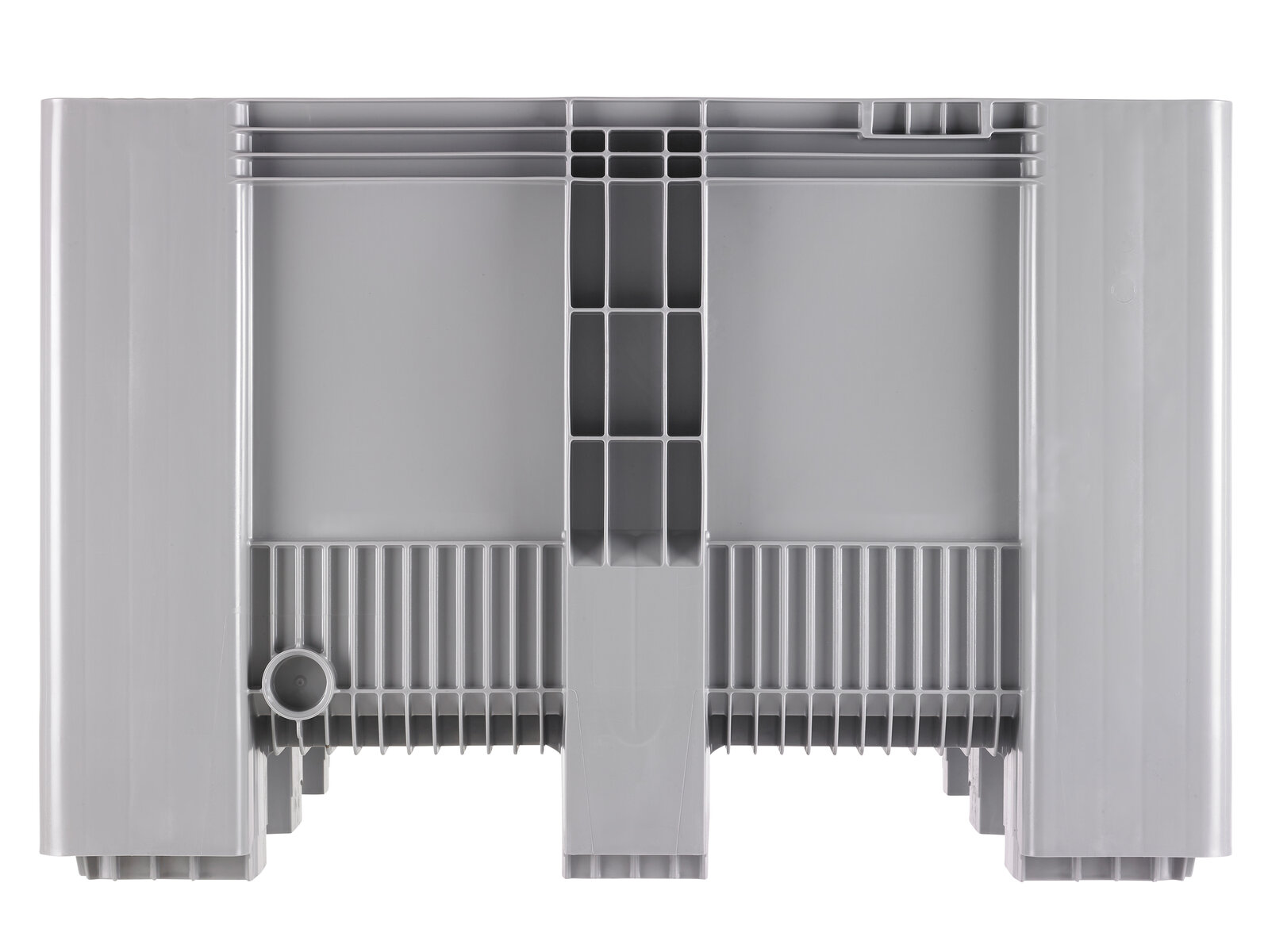

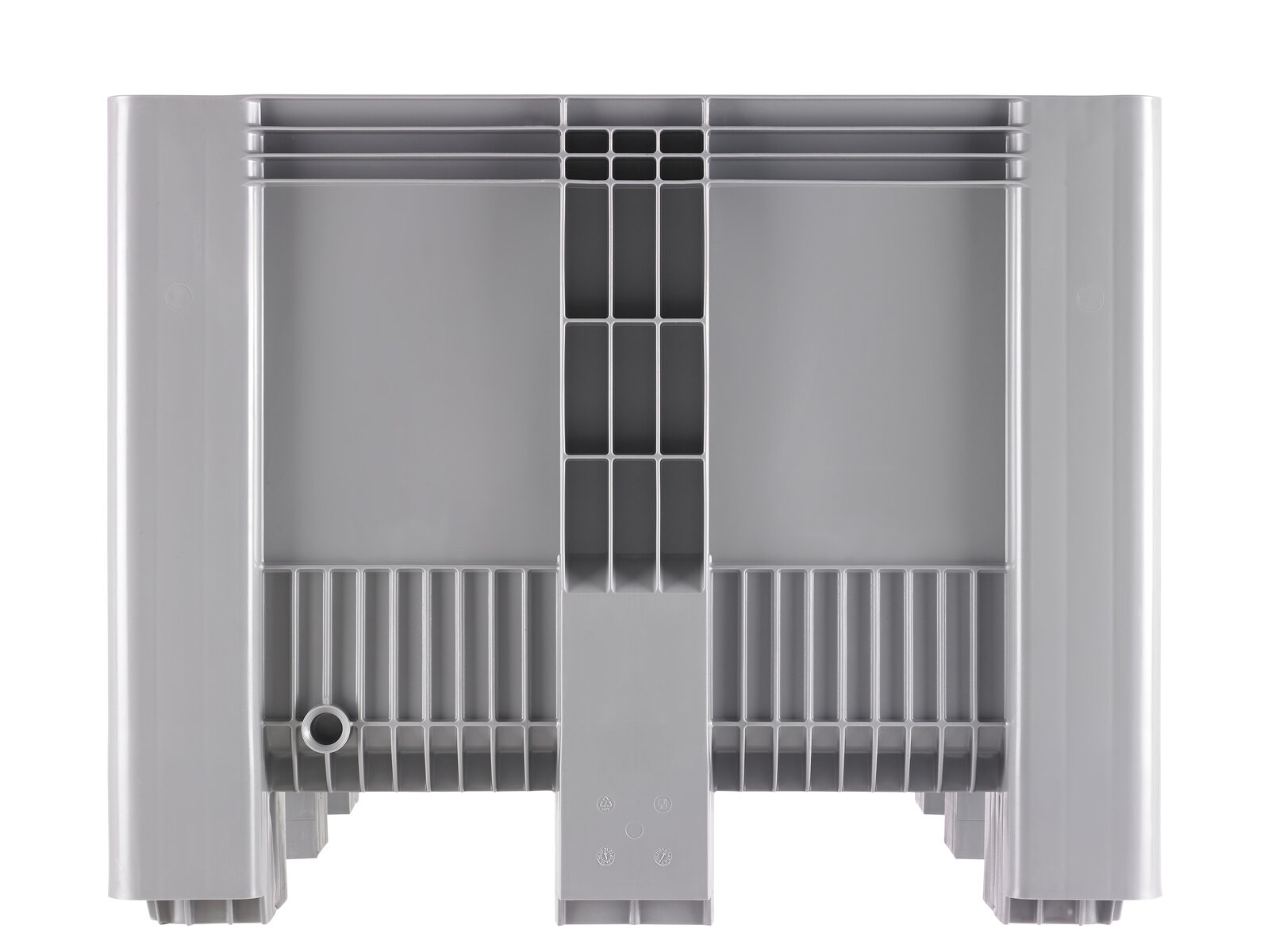

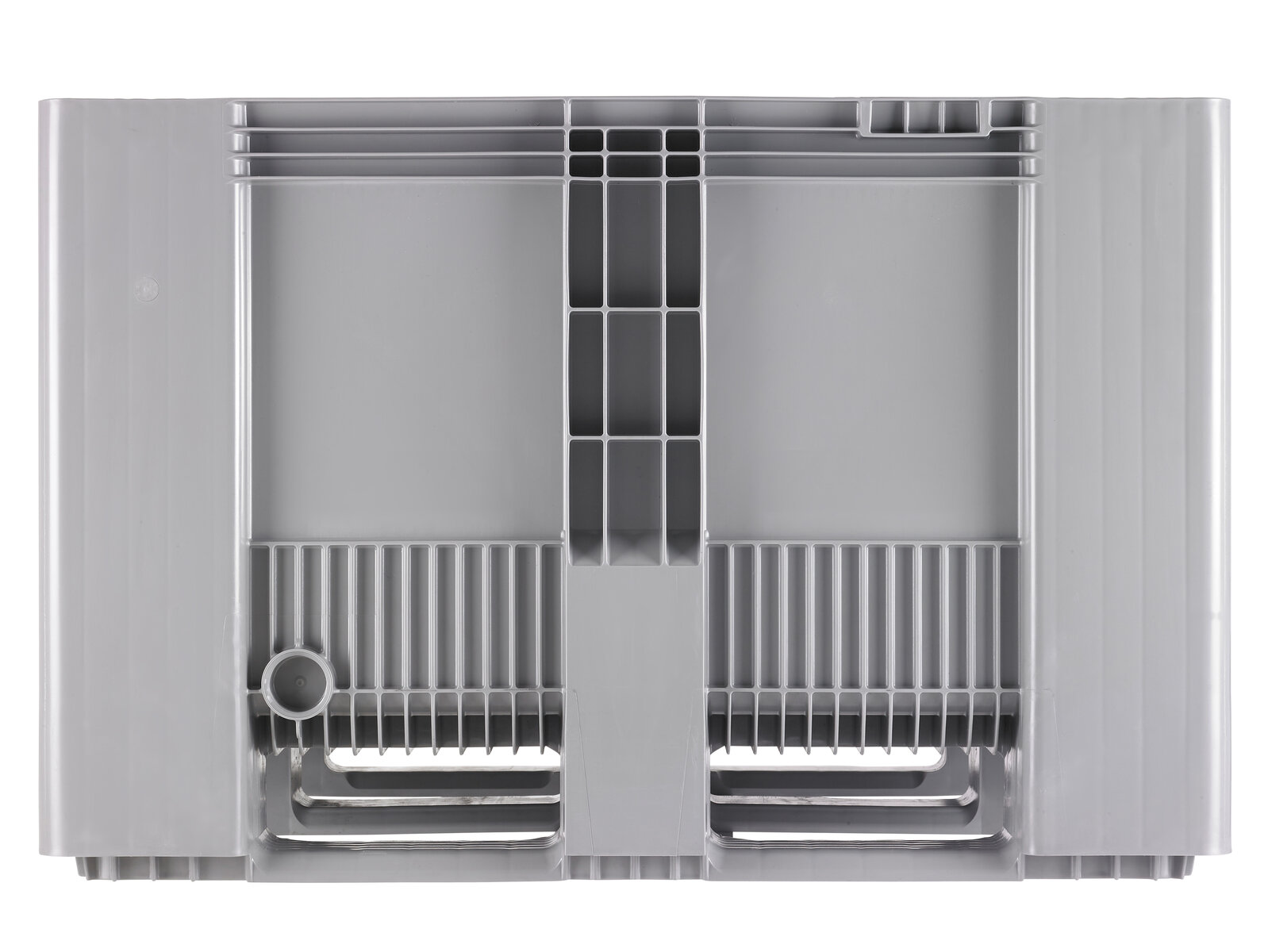

The SB3 pallet box is optionally available in a closed or perforated version, with three runners or nine feet. The particularly stable runner or foot connection ensures extreme resistance and, with the former version, secure lift-tilt emptying by a rotating forklift. Additional ribs on the outer walls of the large load carrier provide increased impact protection against forklift tines while the seamless construction and the smooth inner surfaces enable easy emptying, easy cleaning and good drying properties. The all-around stacking shoulder in the upper and lower edge make the container compatible with a large number of other pallet boxes (Euro stacking system).

Characteristics:

One-piece injection moulded with 3 runners or 9 feet
Walls and bottom closed

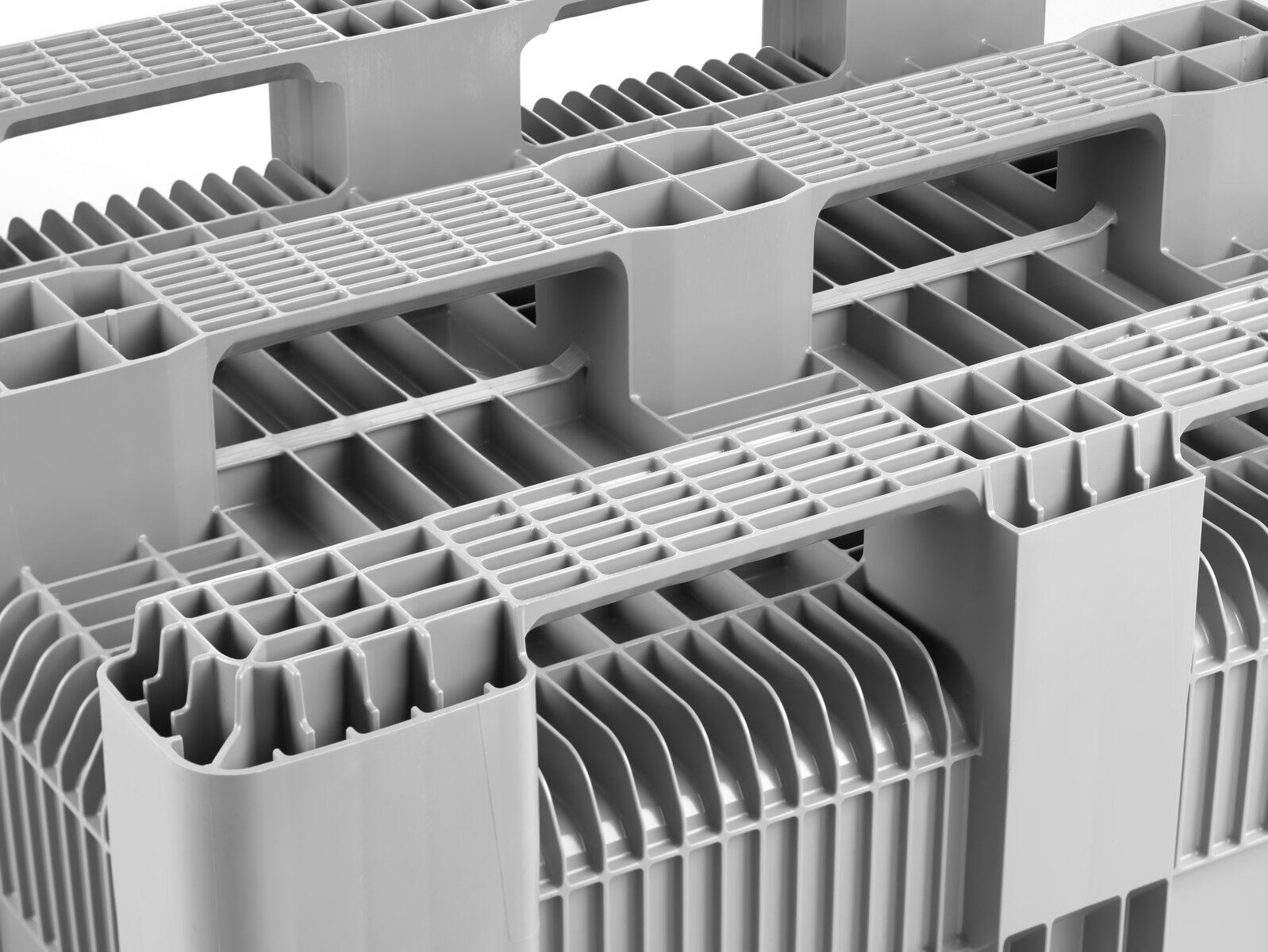

Extra strong connection of the runners or feet

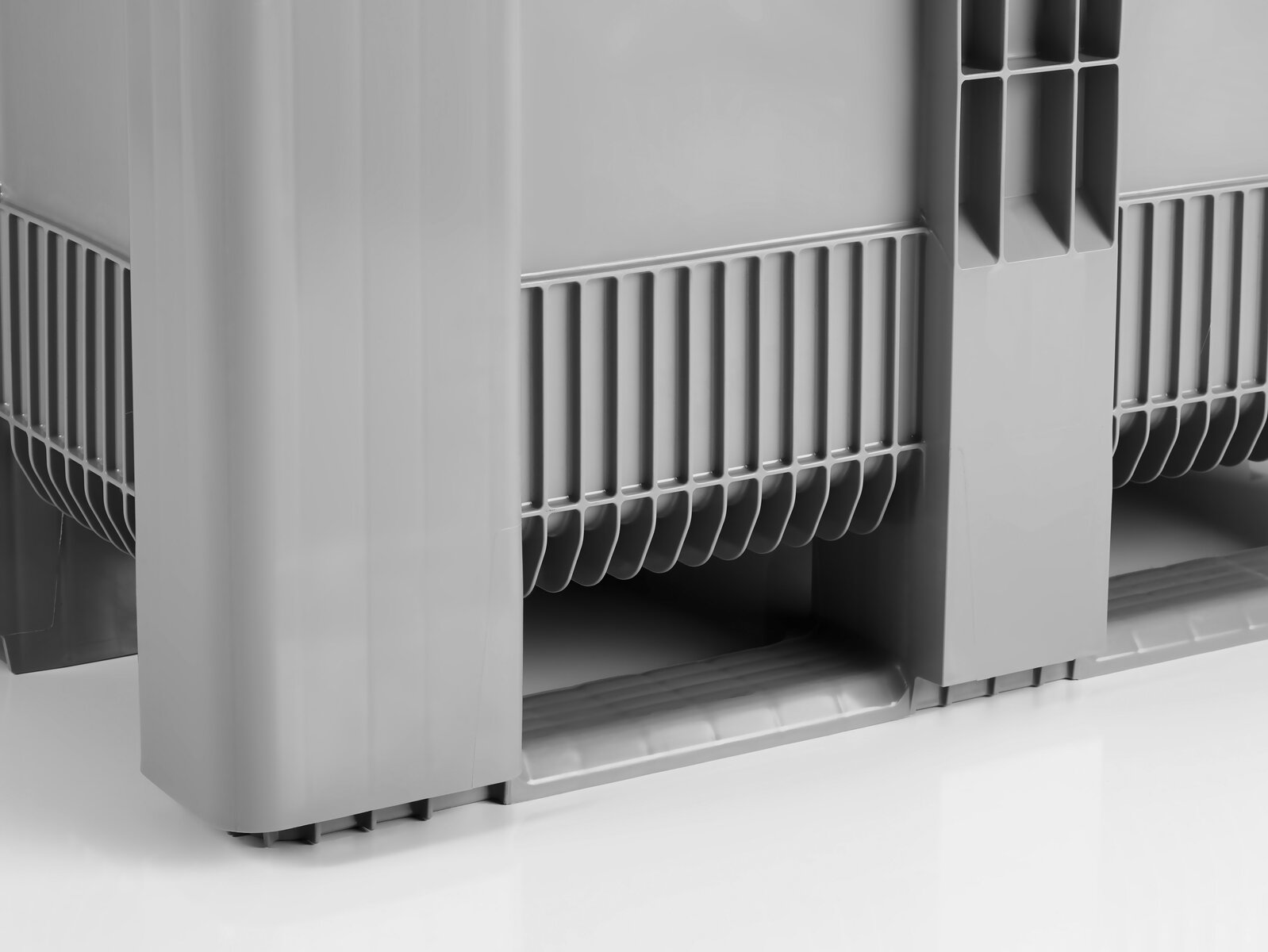

Ram protection through additional ribs on the sides, for increased resistance to forklift tines

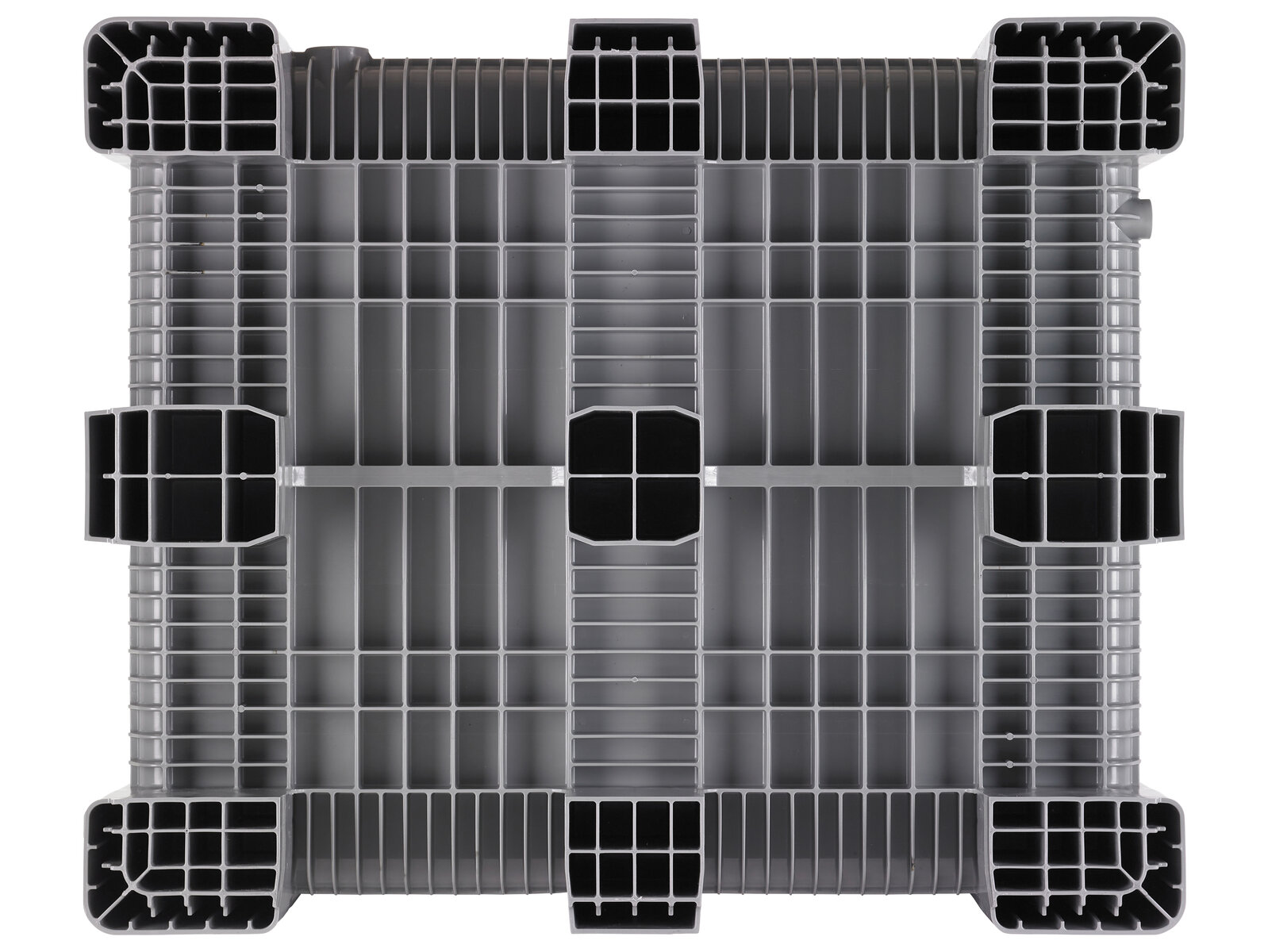

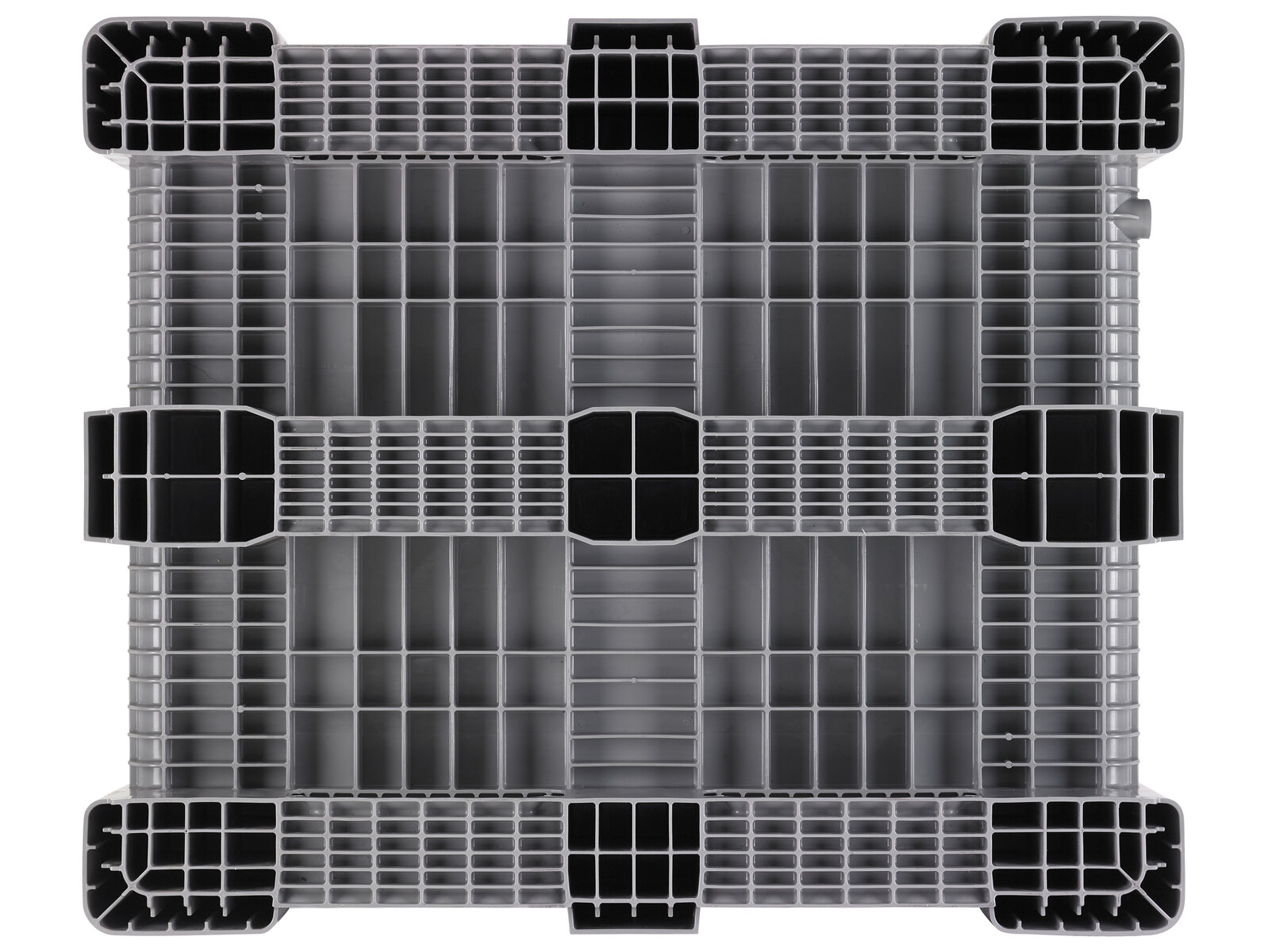

High stability of container bottom due to strong ribbing
Euro stacking system (all-around stacking shoulder) for compatibility with a variety of other pallet boxes
Smooth interior walls for easy emptying and cleaning

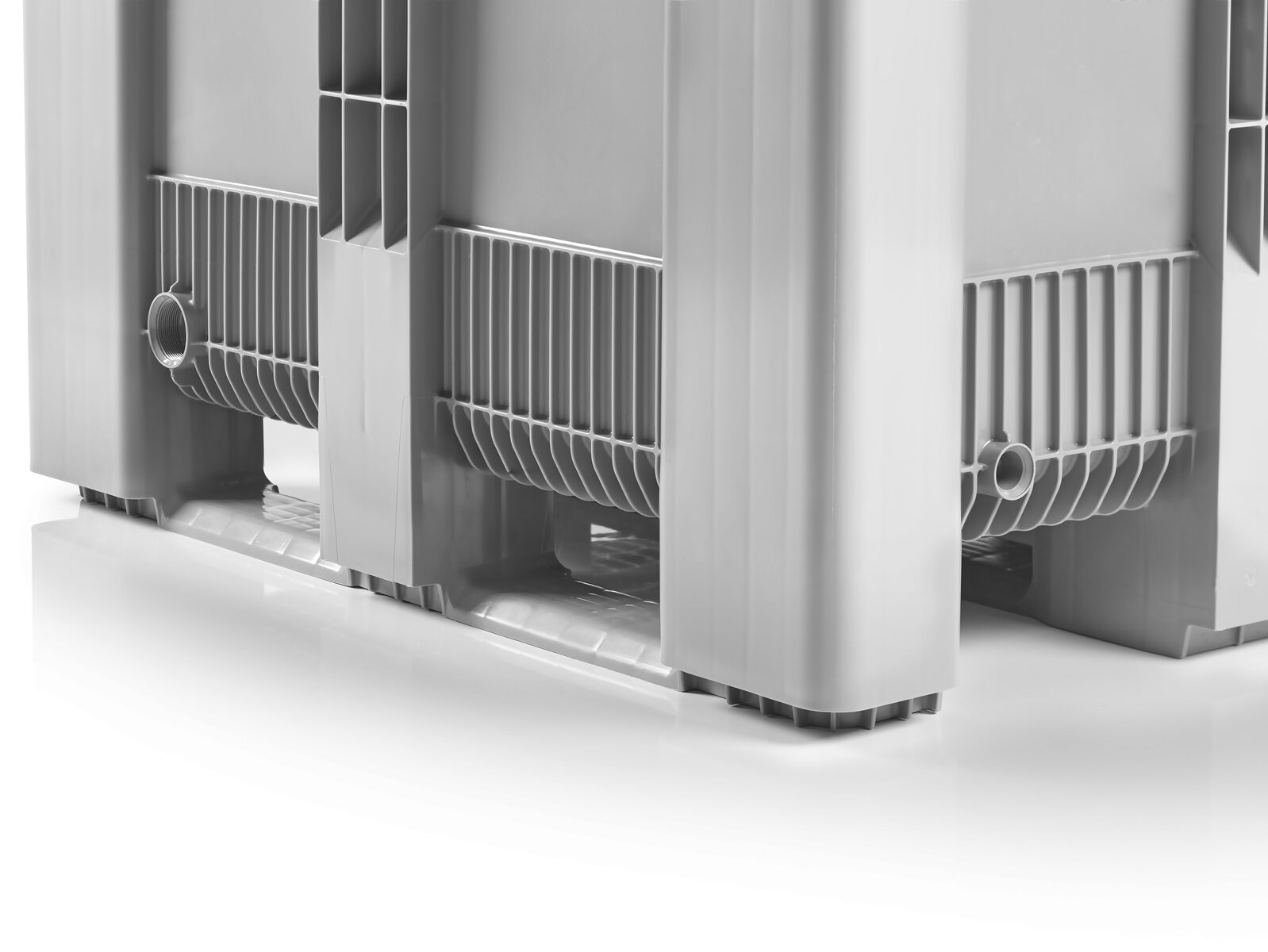

One closed drain port with integrated thread and drilling mark, each on one long side (2-inch) and on one short side (1-inch)
The container is based on DIN EN 13626 and DIN EN ISO 12048

Options:

One open drain port with integrated thread each on one long side (2-inch) and on one short side (1-inch)
RFID Transponder
Lid
Individual printing

Product enquiry

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
81941811	43.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
81940700	43.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded
81941891	40.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	9 feet

Further links:

Video

Data sheet (PDF)

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
81941811	43.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
81940700	43.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded
81941891	40.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	9 feet

Technical Data *¹

Internal Dimensions (mm)	1200 x 1000 x 790
Internal Dimensions (mm)	1122 x 912 x 620
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
81941811	43.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
81940700	43.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded
81941891	40.5 kg	610 l	5,000 kg	700 kg	1,200 kg	light grey	9 feet

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Stacking Load: at a room temperature of approx. 20°C.

Dynamic Load: on a forklift with an evenly distributed load at a room temperature of approx. 20°C.

Technical drawings

SB3 3 runners

SB3 9 feet

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 30 St. Container 40': 0 St. Container 40' High Cube: 84 St. Container 45': 0 St. Conventional trailer 45’ high cube container: 104 St.
Truck	MEGA Trailer: 130 St. Jumbo: 140-150

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
Technical drawings

Art. no.: 81941811
Colour: light grey
Runners: 3, unwelded
Rim (mm):

Art. no.: 81940700
Colour: light brown
Runners: 3, unwelded
Rim (mm):

Art. no.: 81941310
Colour: blue
Runners: 3, unwelded
Rim (mm):

Art. no.: 81941510
Colour: RAL 6029
Runners: 3, unwelded
Rim (mm):

Art. no.: 81941910
Colour: RAL 3003
Runners: 3, unwelded
Rim (mm):

Art. no.: 81941410
Colour: yellow
Runners: 3, unwelded
Rim (mm):

Art. no.: 81941891
Colour: light grey
Runners: 9 feet
Rim (mm):
