CB3 High

The CB3 High pallet box is injection moulded in one shot with three runners or nine feet and therefore particularly robust. With a height of 1,140mm and a capacity of around 1,000 litres, the CB3 High is ideal for efficiently transporting particularly large quantities or bulky goods. The single-mould production of the pallet box ensures a robust runner or foot connection. Additional ribs above the entry openings of the closed outer walls offer increased protection against forklift tines. The strong ribbing of the lower deck of the CB3 High ensures that the bottom of the container is very robust. There are integrated stacking cams on the outside corners lock with the stacking pockets in the bottom, ensuring stacked boxes are firmly secured.

Characteristics:

Once-piece injection moulded with 3 runners or 9 feet
Walls closed
Strong connection of the runners or feet

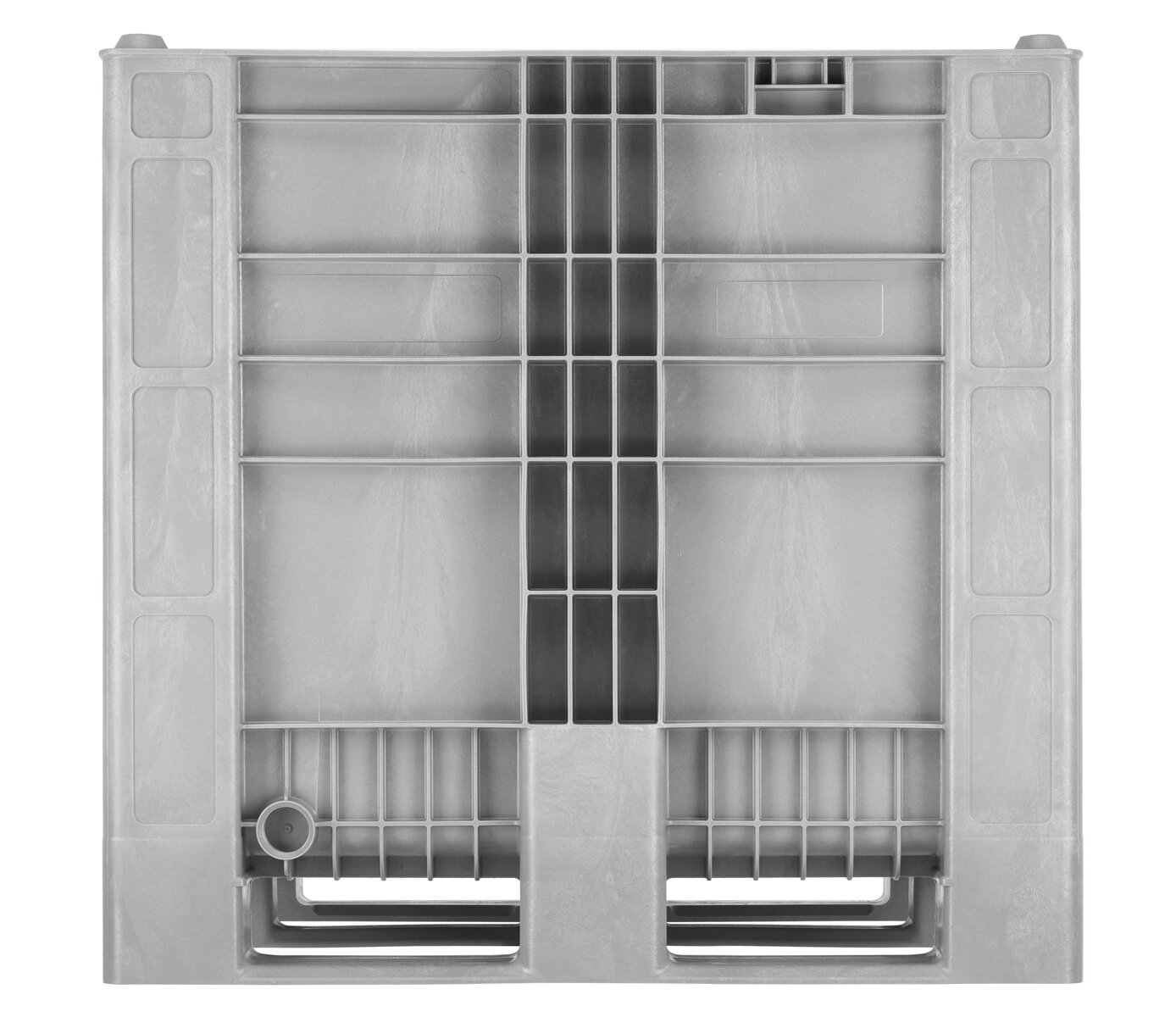

Ram protection through additional ribs on the sides, for increased resistance to forklift tines

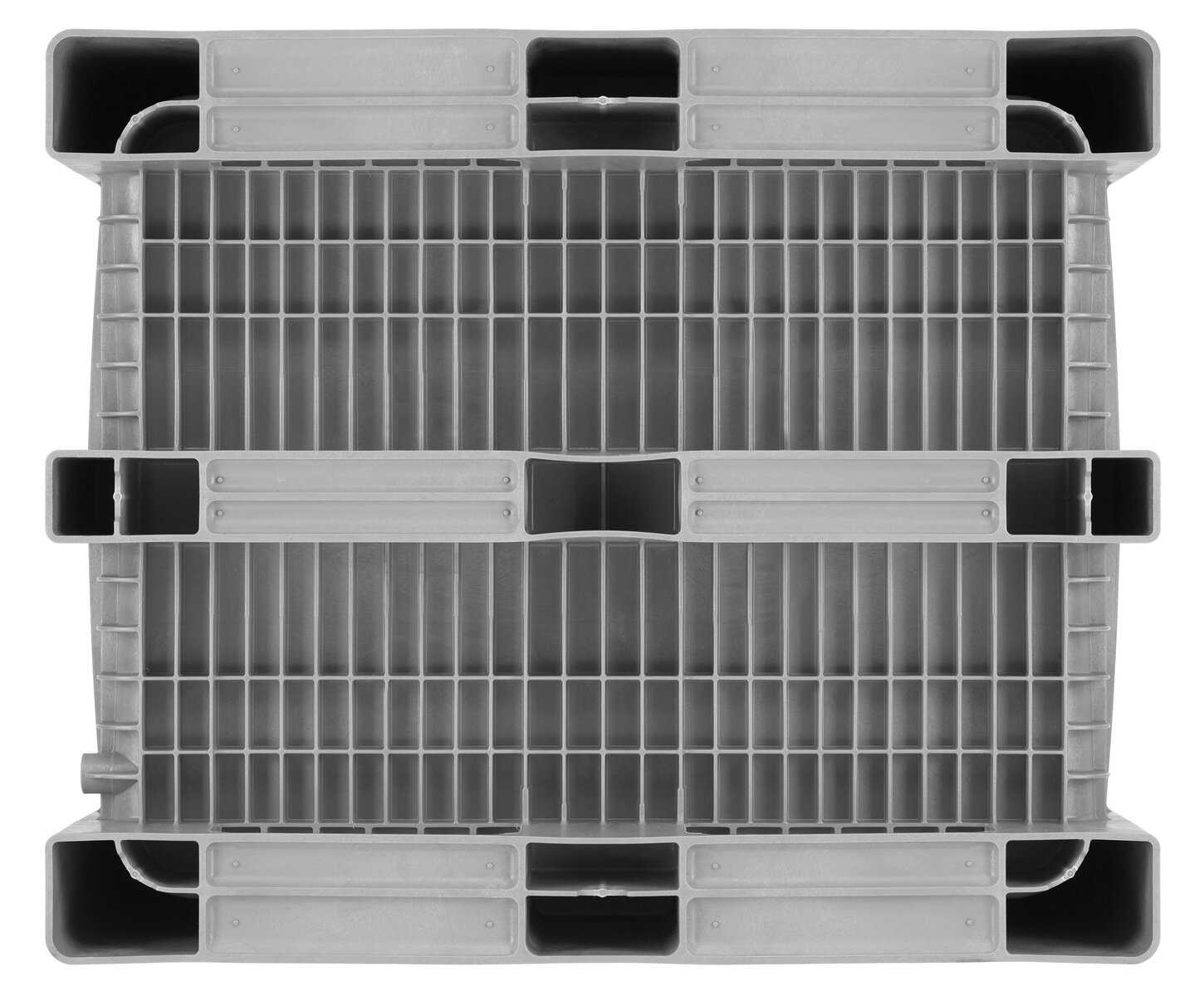

High stability of container bottom due to strong ribbing
Integrated interlocking corners (stacking cams)

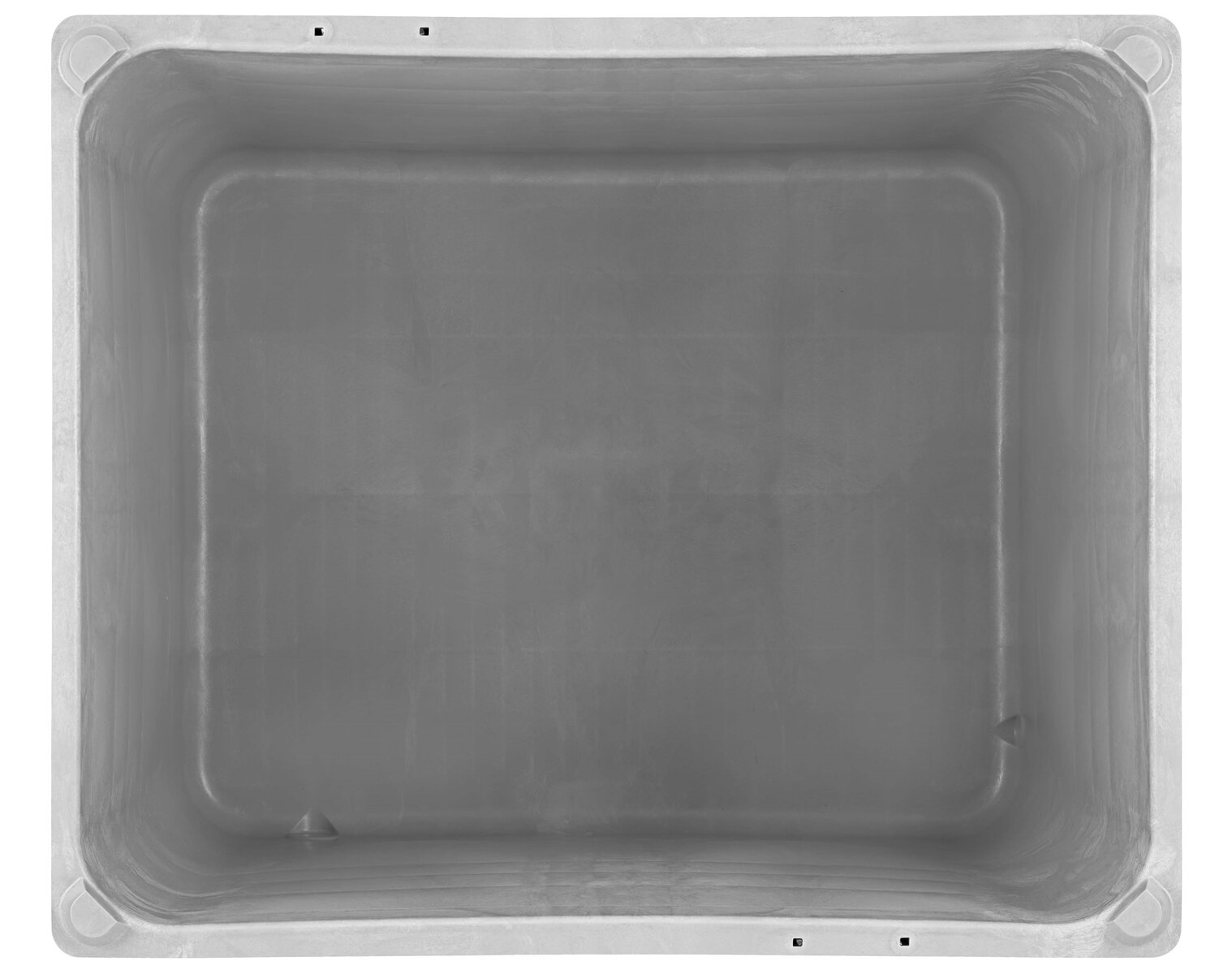

Smooth interior walls for easy emptying and cleaning
One closed drain port with integrated thread and drilling mark, each on one long side (2-inch) and on one short side (1-inch)
The container is based on DIN EN 13626 and DIN EN ISO 12048

Options:

Lateral trunnions for effortless lift-tilt emptying
One open drain port with integrated thread each on one long side (2-inch) and on one short side (1-inch)
RFID Transponder
Lid
Individual printing

Product enquiry

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners	Amount
83271810	49.5 kg	1,000 l	4,000 kg	1000 kg	1,500 kg	light grey	3, unwelded

Further links:

Data sheet (PDF)

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
83271810	49.5 kg	1,000 l	4,000 kg	1000 kg	1,500 kg	light grey	3, unwelded

Technical Data *¹

Internal Dimensions (mm)	1200 x 1000 x 1140
Internal Dimensions (mm)	1108 x 897 x 983
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
83271810	49.5 kg	1,000 l	4,000 kg	1000 kg	1,500 kg	light grey	3, unwelded

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Stacking Load: with a holding capacity of 1000 kg at approx. 20°C.
Dynamic Load: on a forklift with an evenly distributed load at a room temperature of approx. 20°C.

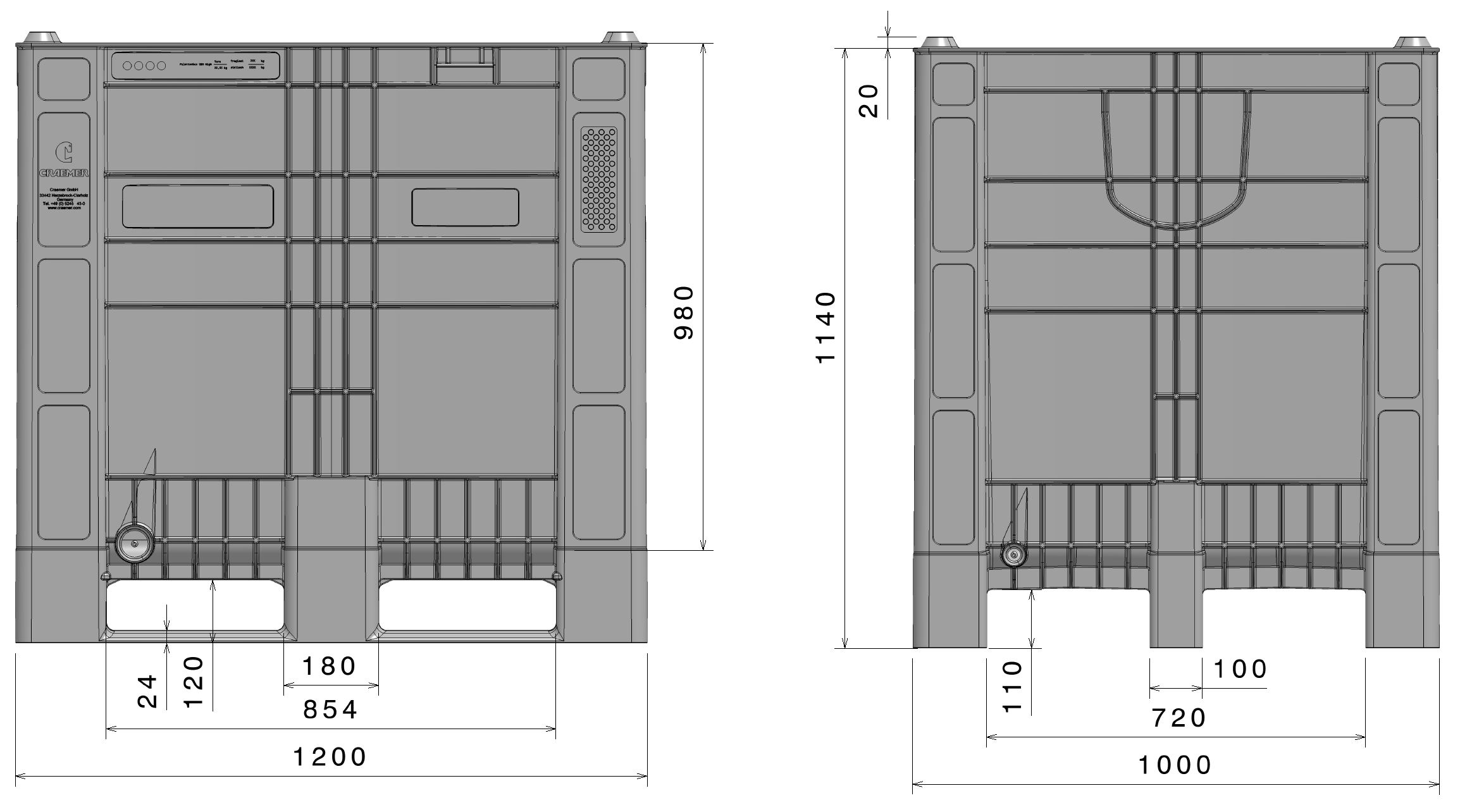

Technical drawings

CB3 High

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 18 St. Container 40': 0 St. Container 40' High Cube: 44 St. Container 45': 0 St. Conventional trailer 45’ high cube container: 52 St.
Truck	MEGA Trailer: 52 St. Jumbo: 56-60

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
Technical drawings

Art. no.: 83271810
Colour: light grey
Runners: 3, unwelded
Rim (mm):

Art. no.: 83271877
Colour: light grey
Runners: 3, unwelded
Rim (mm):

Art. no.: 83271910
Colour: red
Runners: 3, unwelded
Rim (mm):
