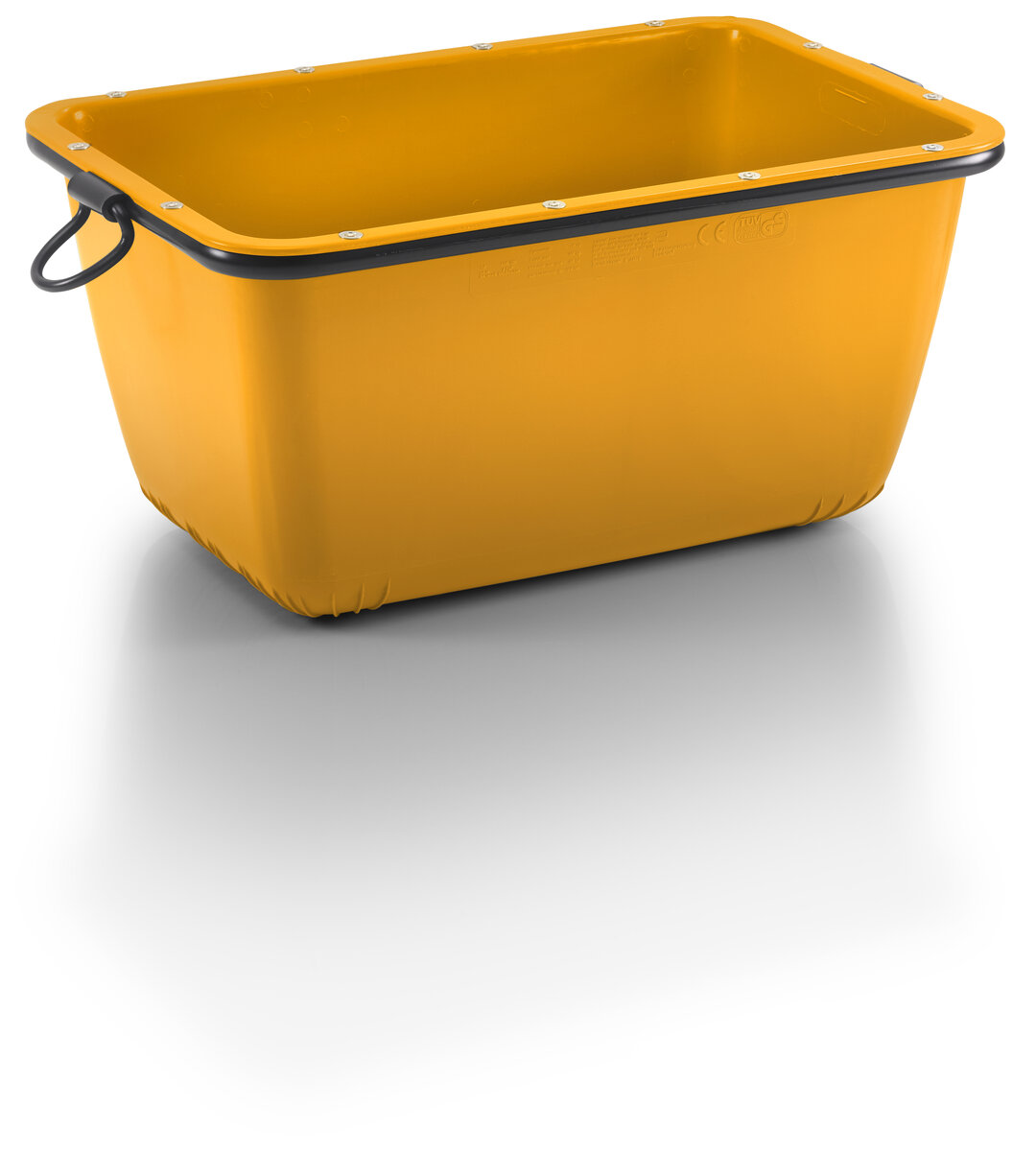

Ready mortar skip FMK

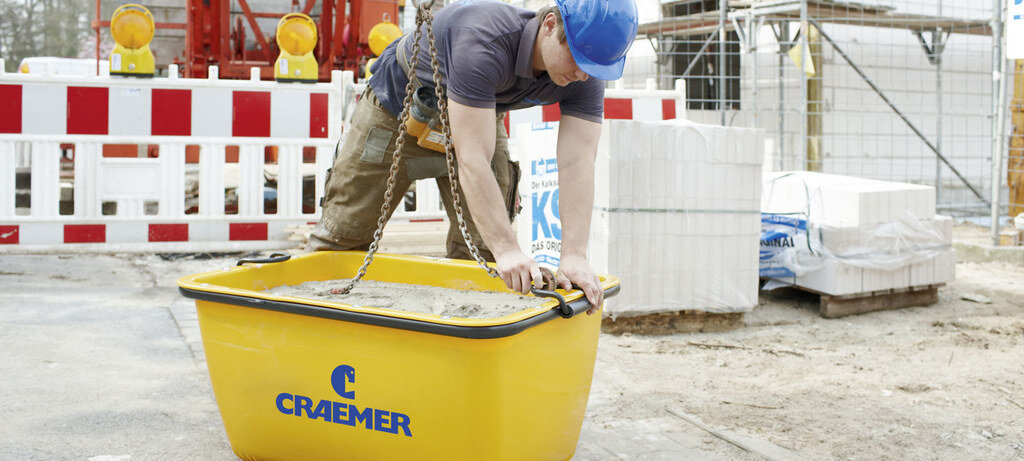

This Craemer original was specially designed for transporting ready mortar and is perfectioned for the daily handling at the construction site.

Characteristics:

Made from flexible, breaking resistant PE, specially developed for the construction industry
High manufacturing quality
Stable frame
Solid anti-wear ribs protect the base from wearing through

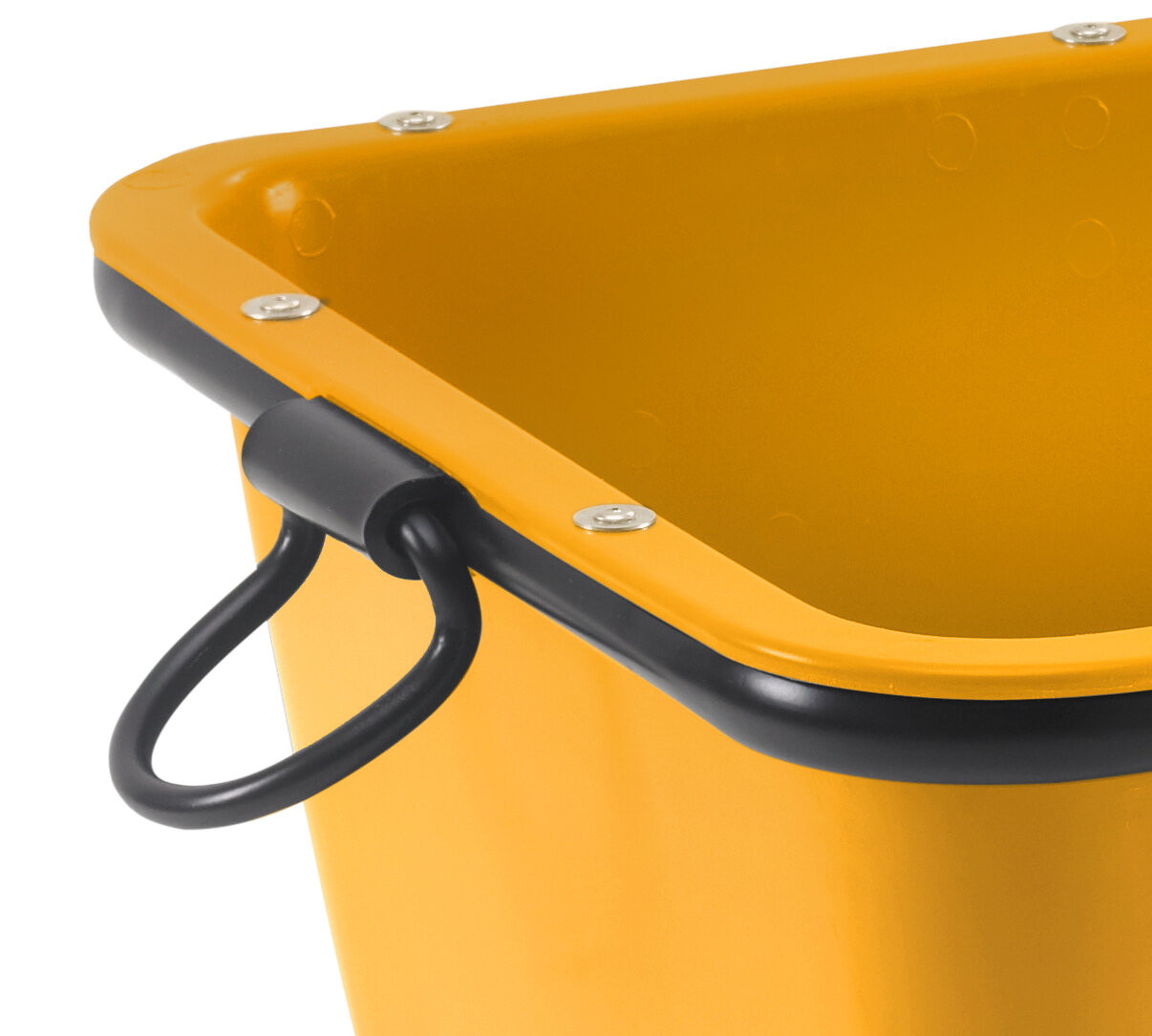

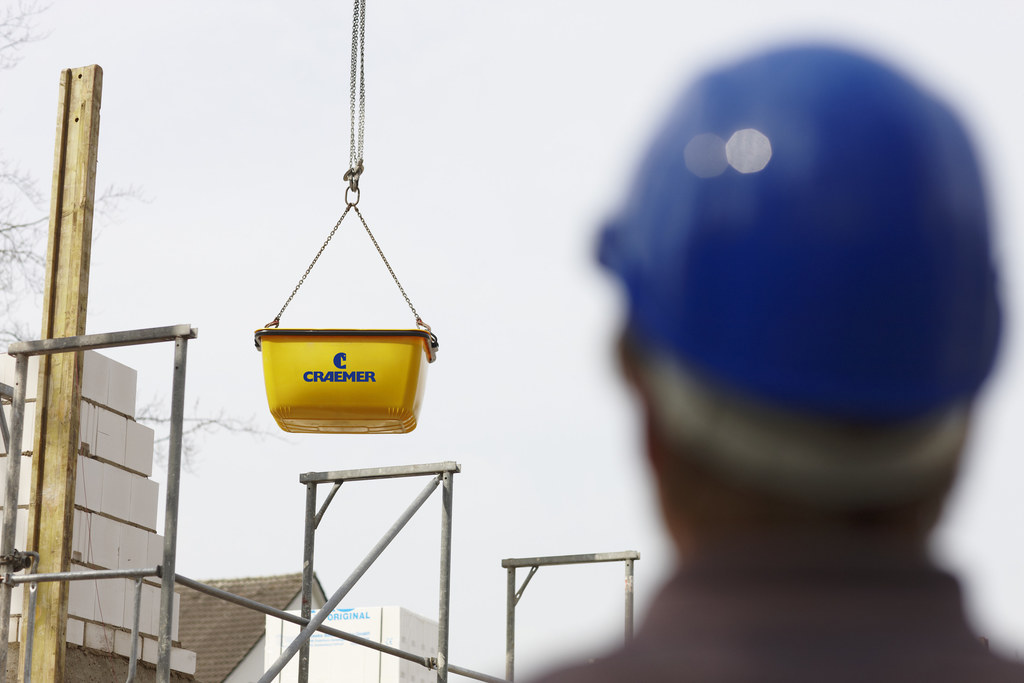

Craneable thanks to sturdy handles

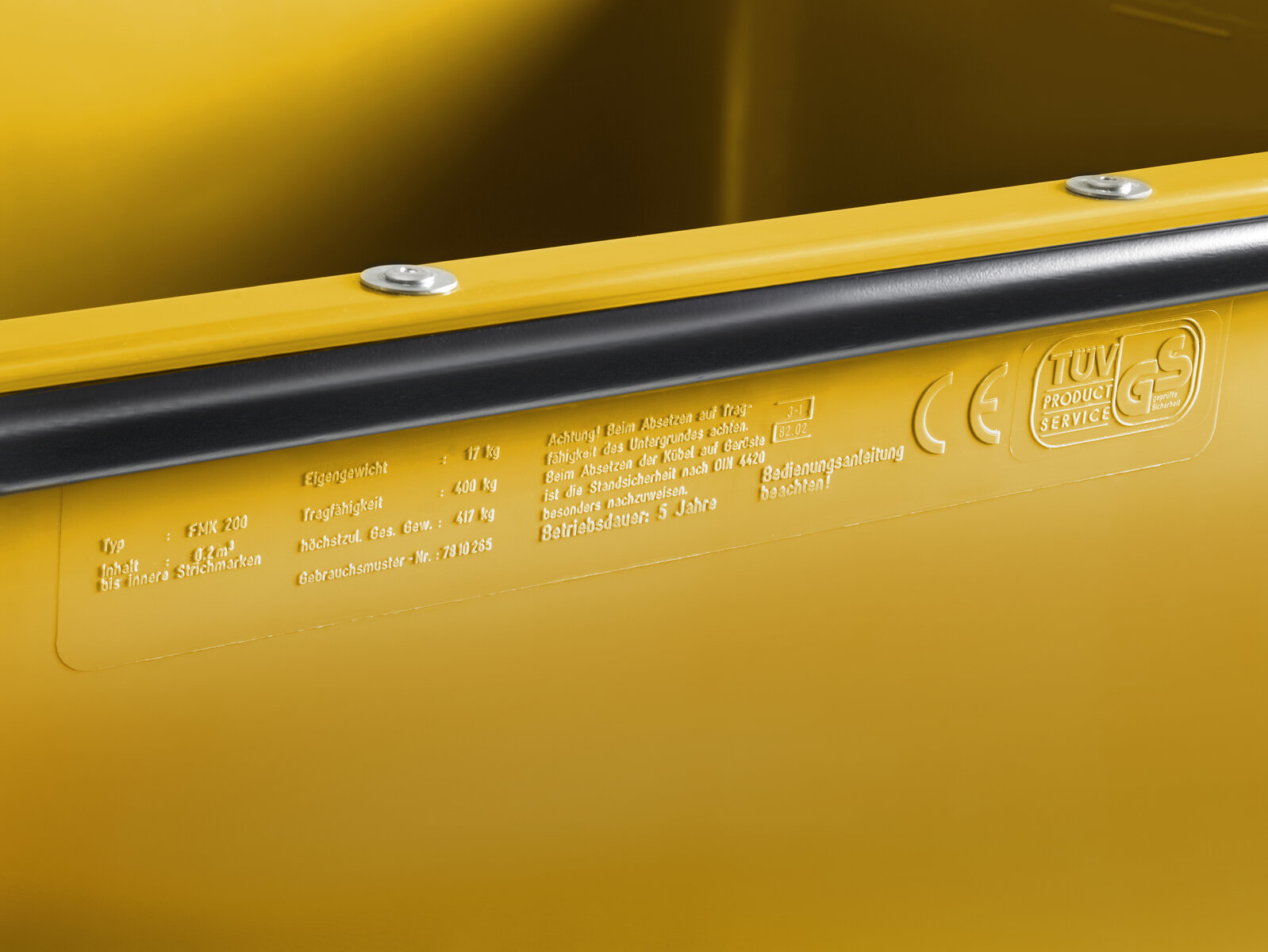

If used appropriately and serviced regularly, the German quality control authority TÜV attests the ready mortar skip a safe service life of five years

Accessories:

Individual marking by own colour or labelling

Product enquiry

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Material	Holding Capacity	Stacking height inside each other	Colour
81611411	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	yellow

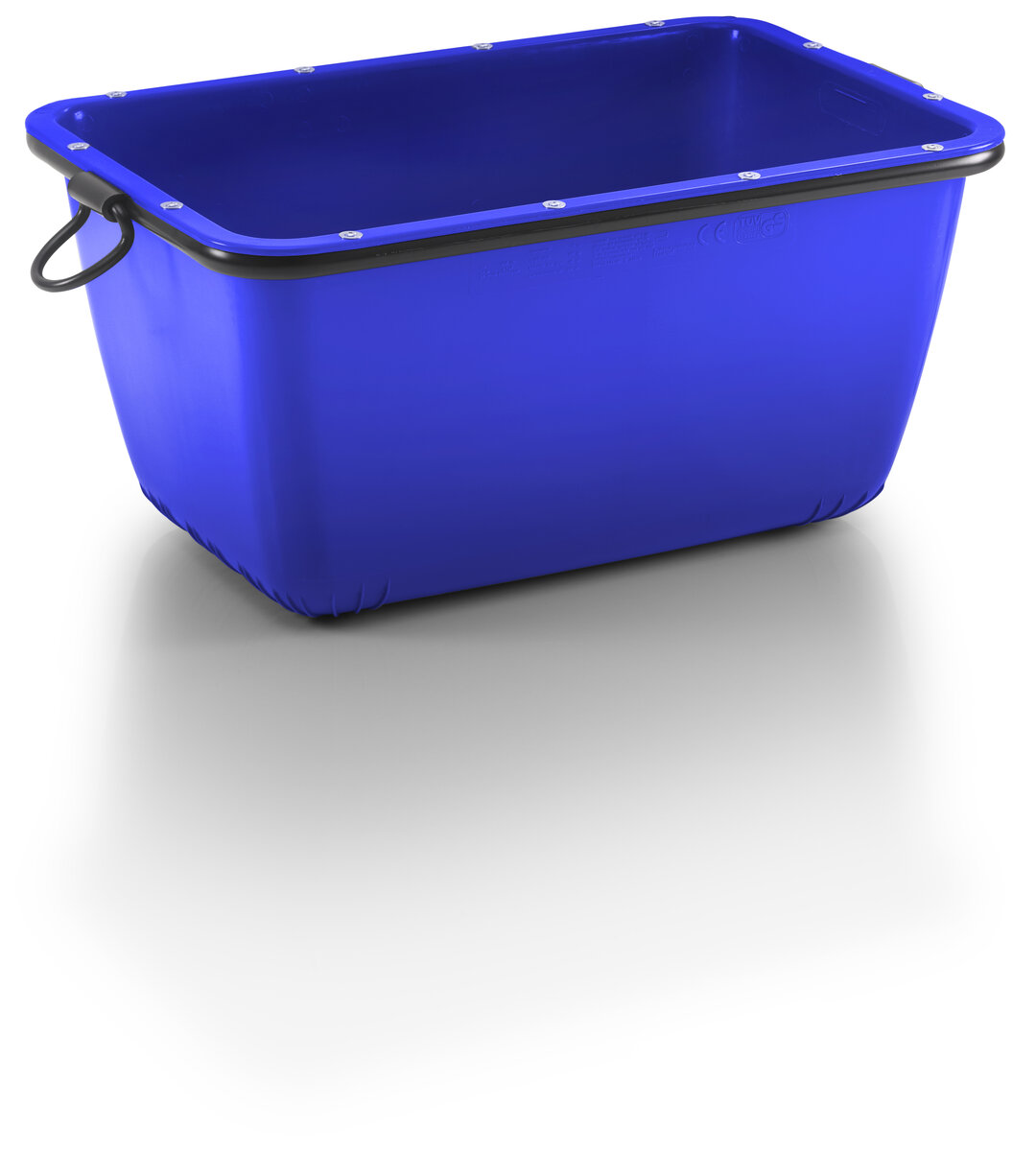

81611311	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	blue

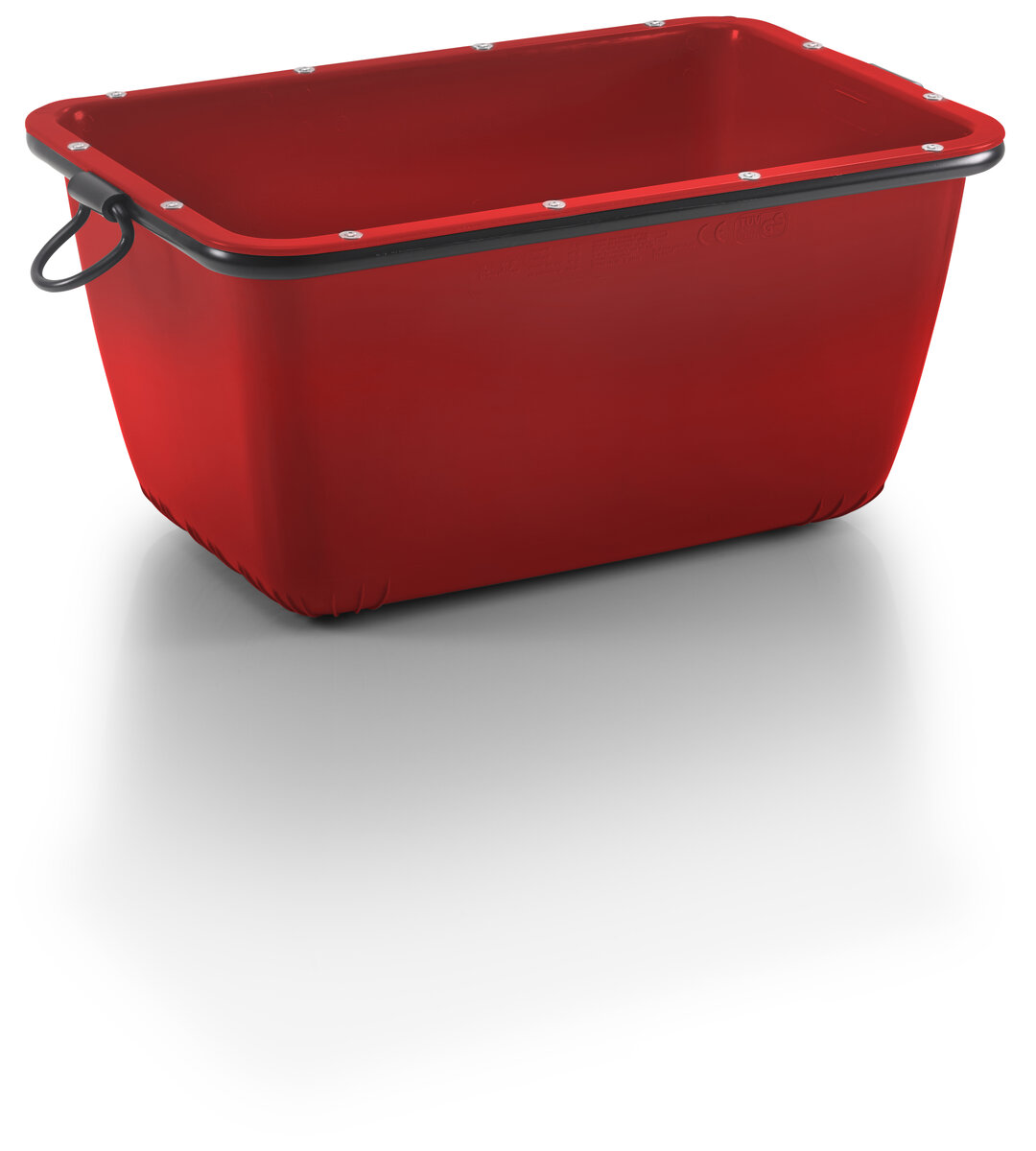

81611911	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	red

Further links:

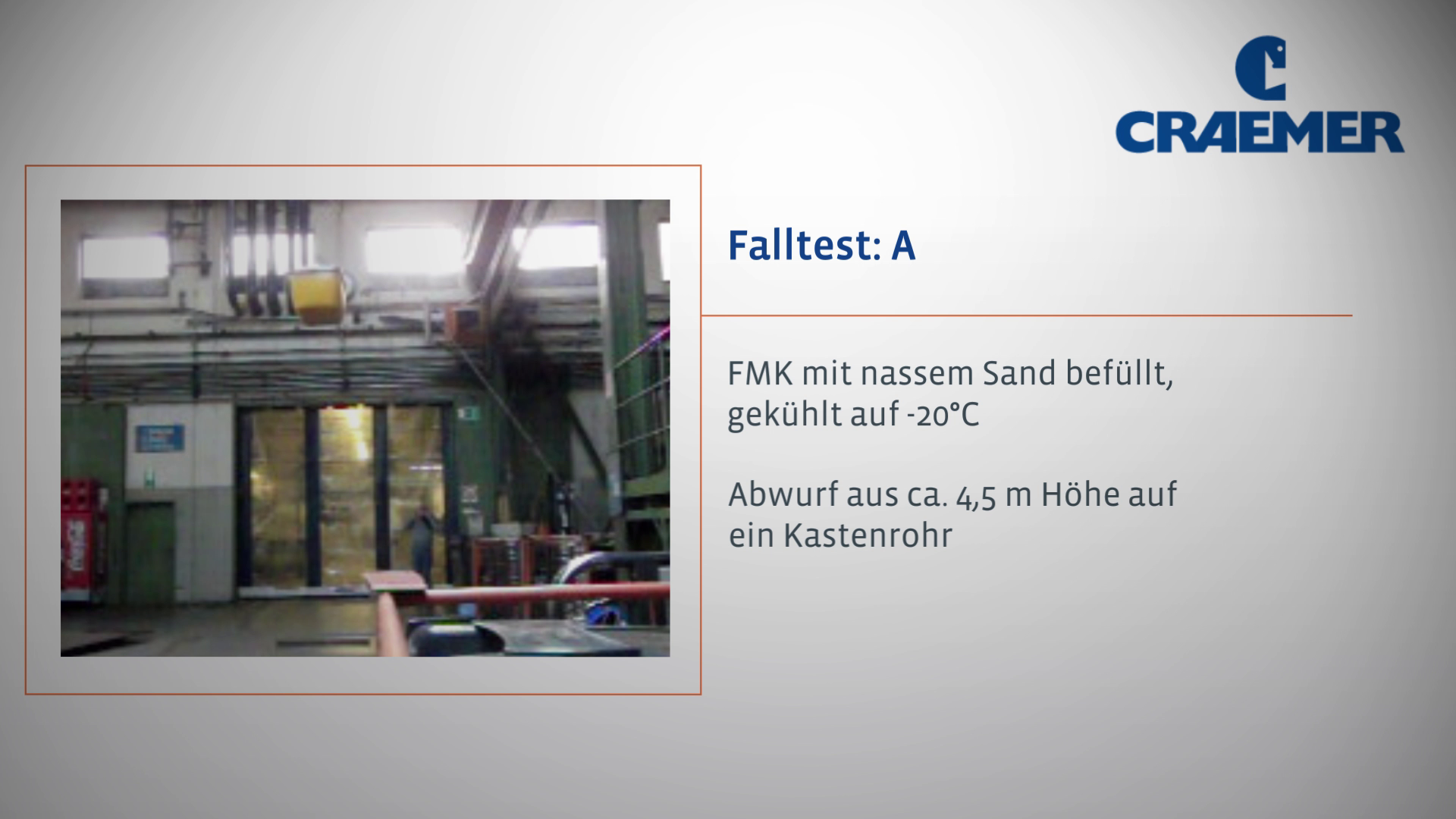

Video

Certificate

Data sheet (PDF)

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Material	Holding Capacity	Stacking height inside each other	Colour
81611411	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	yellow
81611311	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	blue
81611911	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	red

Technical information *¹

Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Material	Holding Capacity	Stacking height inside each other	Colour
81611411	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	yellow
81611311	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	blue
81611911	Ready mortar skip FMK	990 x 665 x 490	910 x 585 x 480	17 kg	200 l	Tub PE, frame steel	700 kg	45 mm	red

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

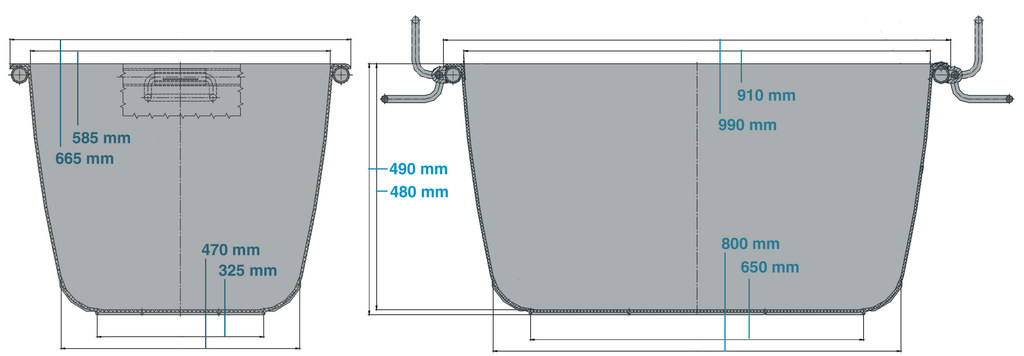

Technical drawings

Ready mortar skip FMK 200 l

Loading quantities (Pcs / Approximate amount)

Container
Truck

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
Technical drawings

Art. no.: 81611411
Colour: gelb
Runners:
Rim (mm):

Art. no.: 81611311
Colour: blau
Runners:
Rim (mm):

Art. no.: 81611911
Colour: rot
Runners:
Rim (mm):

Art. no.: 82700000
Colour: blau
Runners:
Rim (mm):

Art. no.: 81611511
Colour: grün
Runners:
Rim (mm):

Art. no.: 81611811
Colour: hellgrau
Runners:
Rim (mm):
