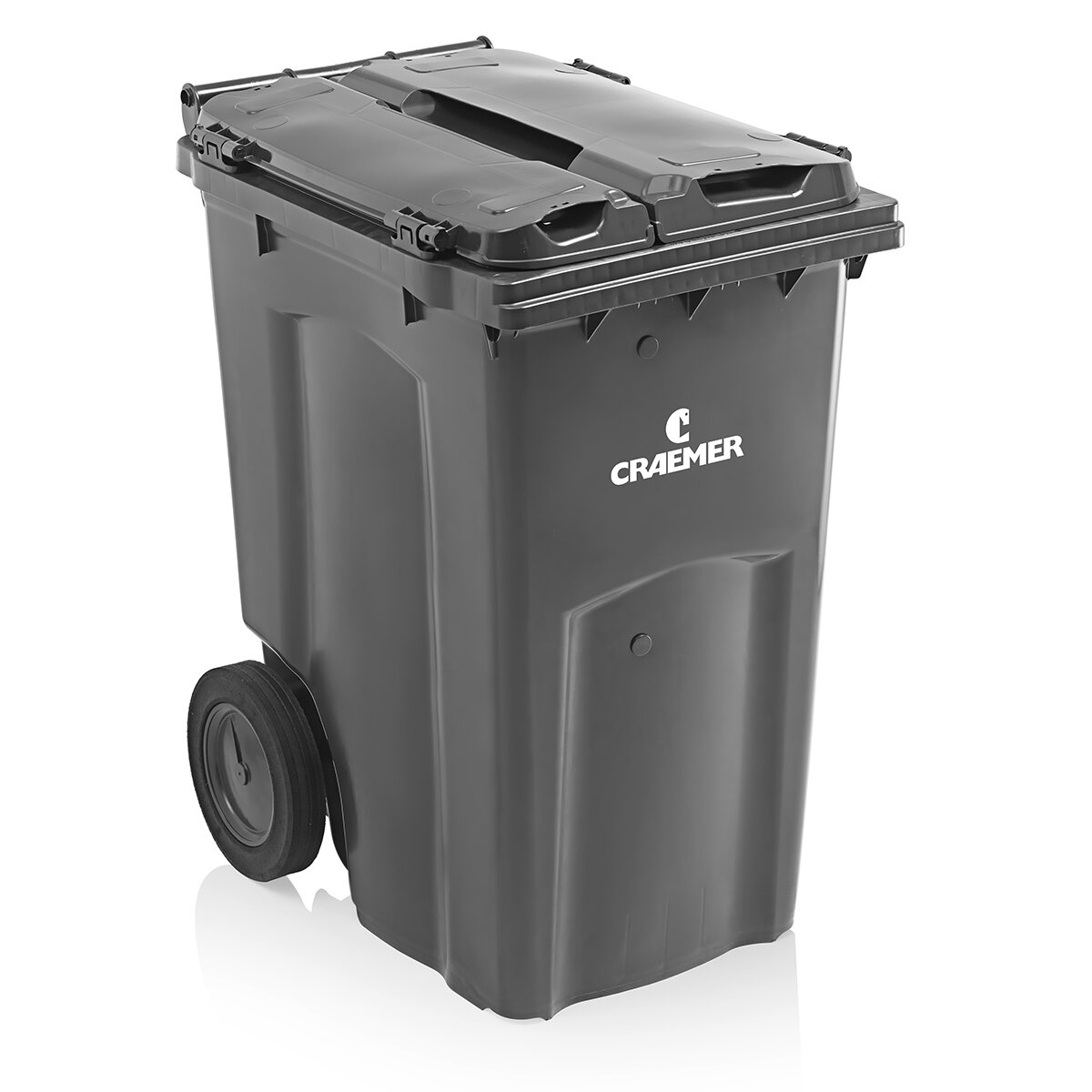

MGBneo Twin-compartment wheeled bin system
The Craemer twin-compartment wheeled bin system for MGBneo 240 L and 340/360 L allows two different waste fractions to be presented for collection in separate compartments within a single bin. This tried and tested system has been used successfully in Scandinavia for many years in combination with split lifter/body vehicles able to collect different recycling and waste streams separately in a single vehicle. The collection of materials separately with minimal cross-contamination has negated the need to sort post-collection resulting in better material quality. The provision of twin-compartment containers has reduced the number of bins issued to individual households and allowed collection agencies to manage their resources more efficiently.
Characteristics:
- Saloon lid and divider wall within each bin can be positioned to provide either 40/60, 50/50 or 60/40 compartment ratios
- Easy and secure fitting, quick and easy lid replacement
- Convoluted design feature of the divider wall provides rigidity and allows easy discharge of contents
- Integrated rain spoiler reduces rainwater run-off into bin
-
Technical Data *1
Container corresponds to EN840, RAL-GZ 951/1, Directive 2000/14/EG Travelling gear External, wheel Ø 250 mm, rubber tired wheels, wheel axle from tempered, galvanized steel Reciever Comb lift Prepared for transponders Yes Extra equipment / Accessories *2 colour clips for marking the compartments, noise insulation plugs, wheels Ø 200 mm, special colours on request Art. no.Outer length (mm)Outer width (mm)Outer height (mm)VolumeMaterial LidMaterial BodyHolding Capacity* 3Available coloursTwin-compartment wheeled bin system 40-60 580 ±5 mm 740 max. mm 1100 max. mm 240 l PE PE 96 kg anthracite Twin-compartment wheeled bin system 50-50 580 ±5 mm 740 max. mm 1100 max. mm 240 l PE PE 96 kg anthracite Twin-compartment wheeled bin system 60-40 580 ±5 mm 740 max. mm 1100 max. mm 240 l PE PE 96 kg anthracite Twin Compartment Wheeled Bin System 340-360 | 40-60 590 ±20 mm 880 max. mm 1115 max. mm 340 l PE PE 136/144 kg anthracite Twin Compartment Wheeled Bin System 340-360 l 50-50 590 ±20 mm 880 max. mm 1115 max. mm 340 l PE PE 136/144 kg anthracite *1:
All specifications quoted are subject to change. Craemer reserve the right to make changes to product design and specification.
*2:
Extra equipment, accessories, as well as other colors are available at extra cost and on request.
-
Technical Data *1
-

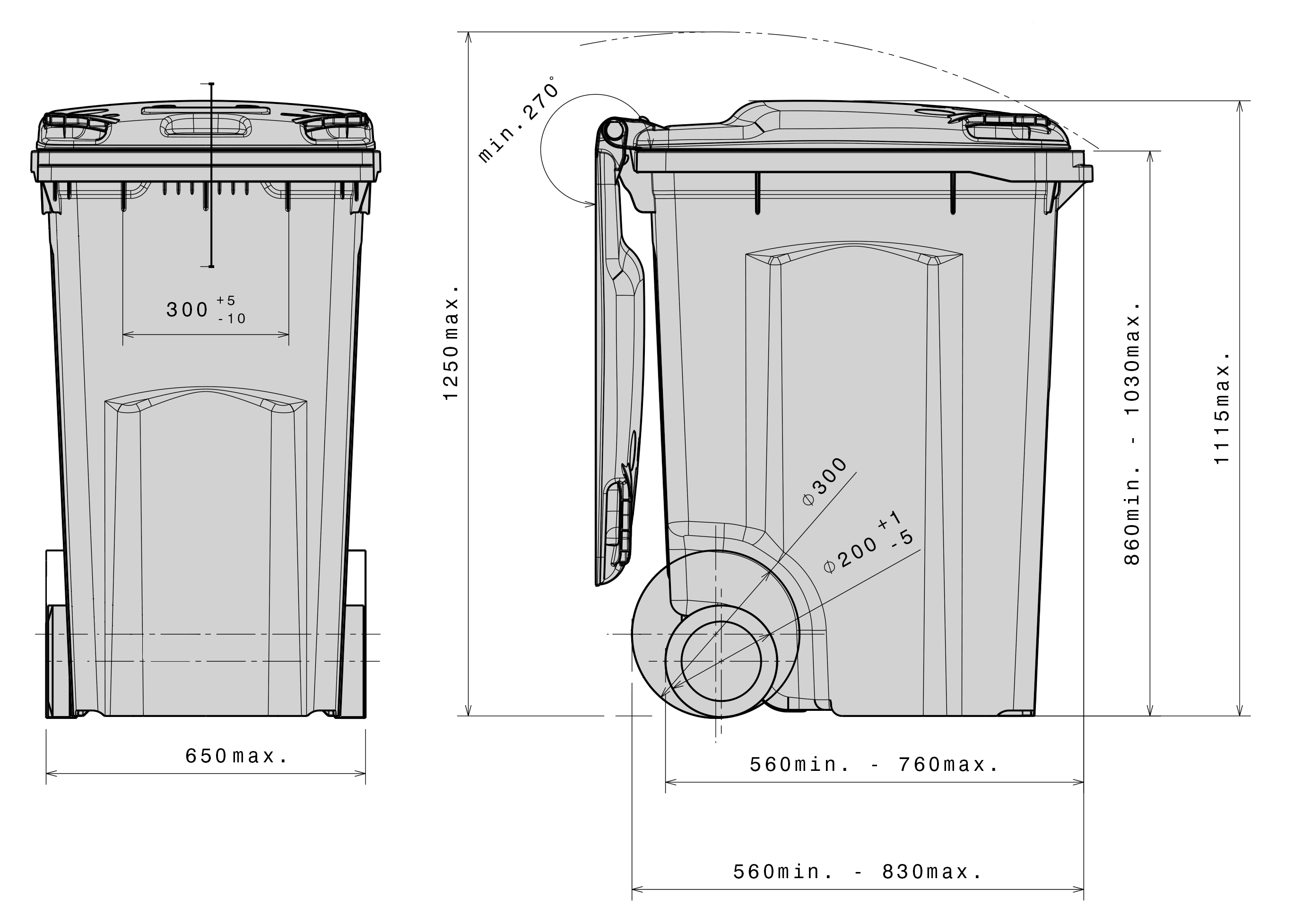

Technical drawings
MGBneo Wheelie Bin 240 l
MGBneo Wheelie Bin 340 l
-
Loading quantities (Pcs / Approximate amount)
On request
-
Labeling options
On the lid, on the body
