MGBneo

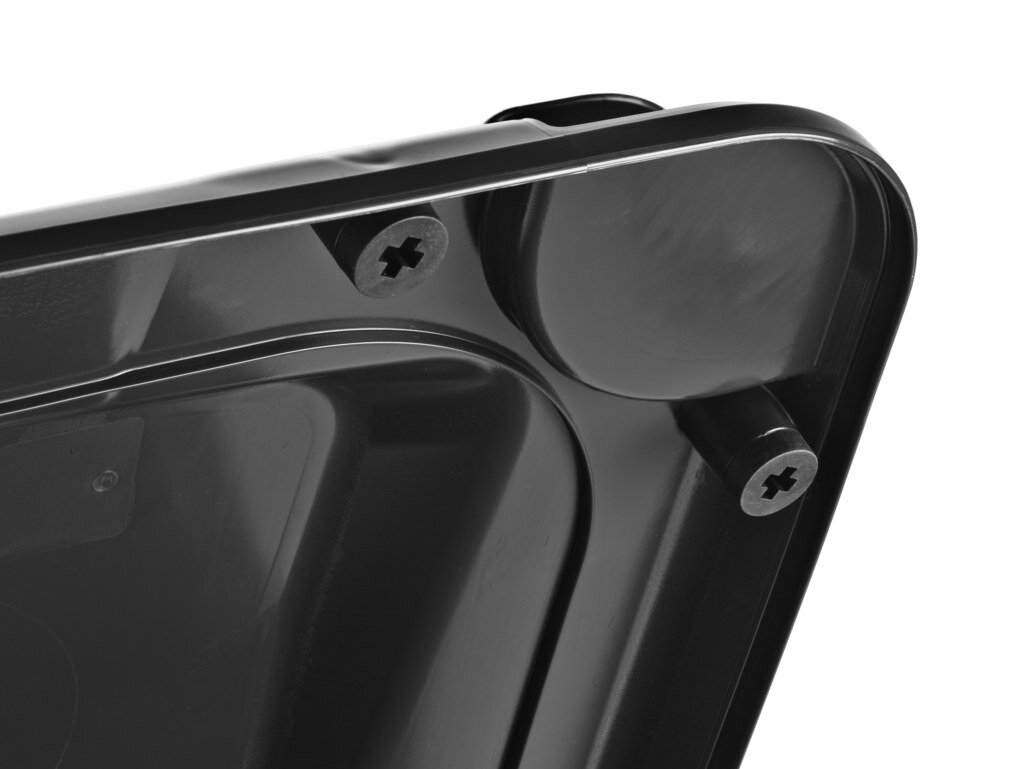

The 120 - 360 l MGBneo are an economic solution for modern waste management companies. They comply with DIN EN 840 and RAL-GZ951/1 (GGAWB) and are noise reduced according to EU directive 2000/14/EG.

Characteristics:

Optimised construction for an economic use of storage space

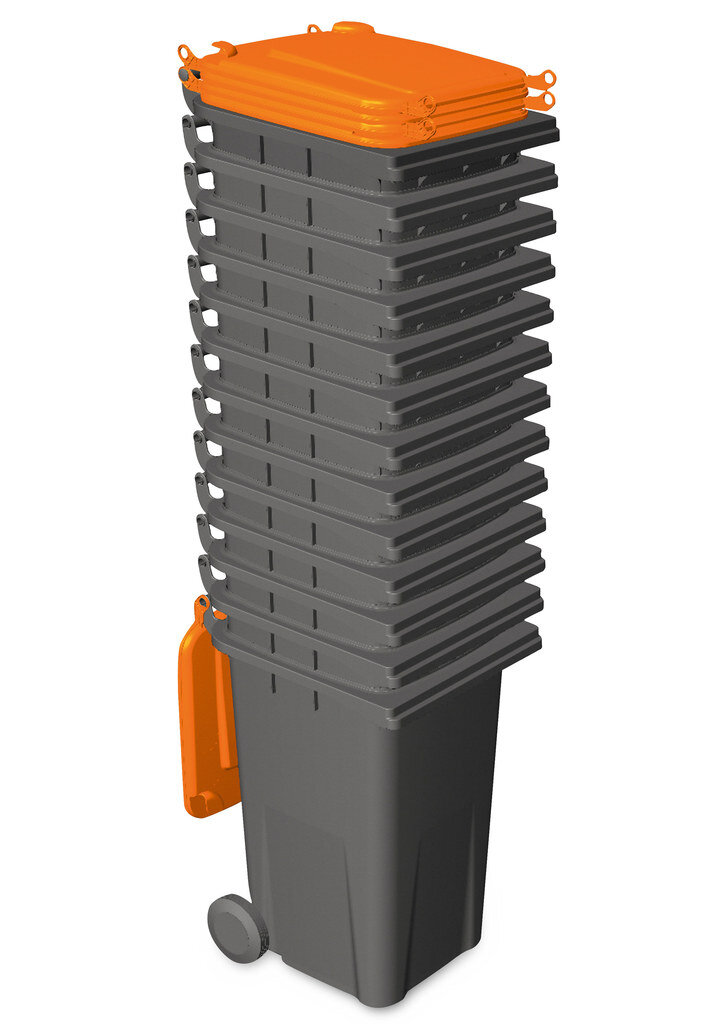

Stacks of up to 13 (selected bin sizes) enable cost saving potential for transport and storage processes
Robust thanks to uniform wall thickness and reinforcement of all walls
Large printing area offers space for individual labelling
Release pins allow quick and easy lid replacements
DDA notch option for ease of bin identification
Coloured lid inserts for optional colour-coded identification
External wheels, available with 200 mm or 250 mm Ø (120-240 l) / 200 mm or 300 mm Ø (340-360 l) rubber tires

Product enquiry

Art. no.	Outer length (mm)	Outer width (mm)	Outer height (mm)	Volume	Material Lid	Material Body	Holding Capacity* ³	Available colours

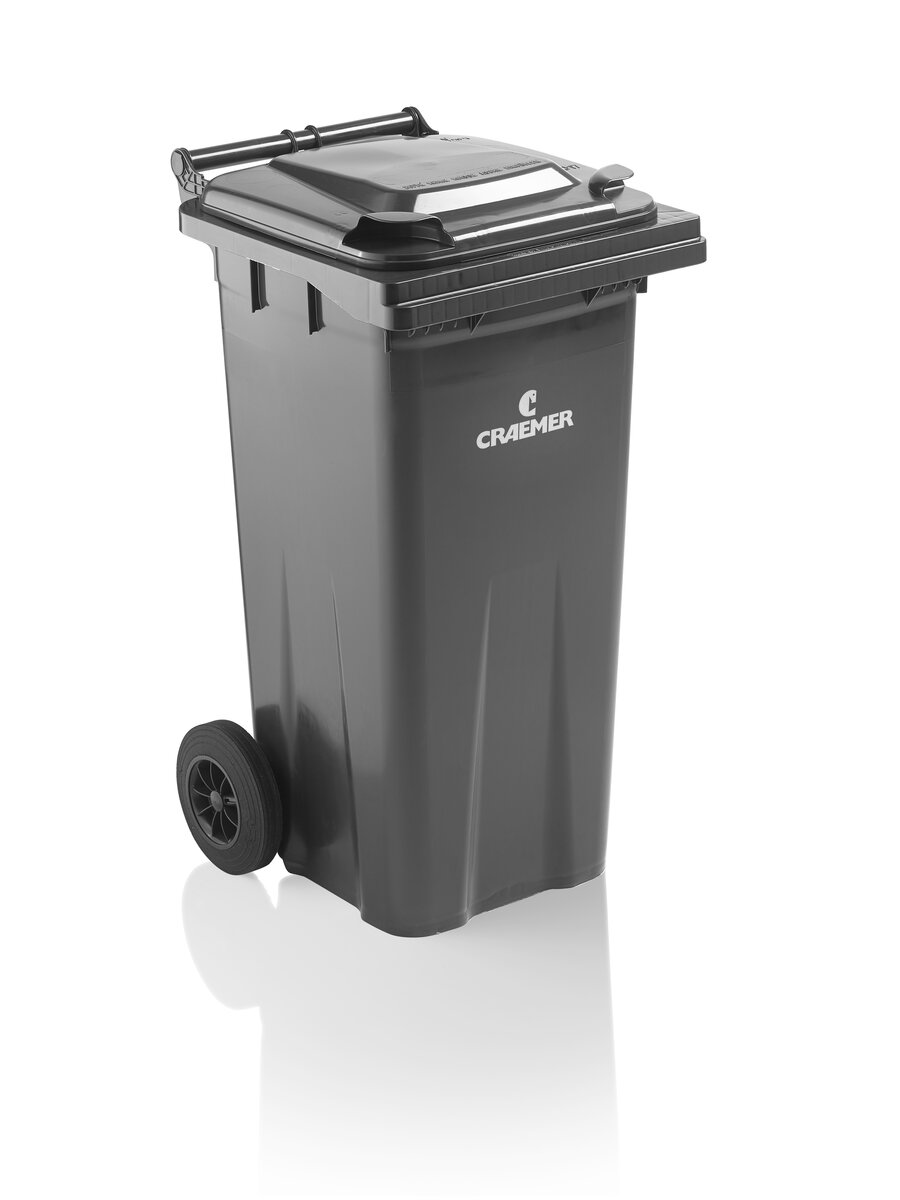

MGBneo 120	505 max. mm	555 max. mm	1005 max. mm	120 l	PE	PE	48 kg	red, green, brown, blue, yellow, anthracite
MGBneo 140	505 max. mm	555 max. mm	1100 max. mm	140 l	PE	PE	56 kg	red, green, brown, blue, yellow, anthracite

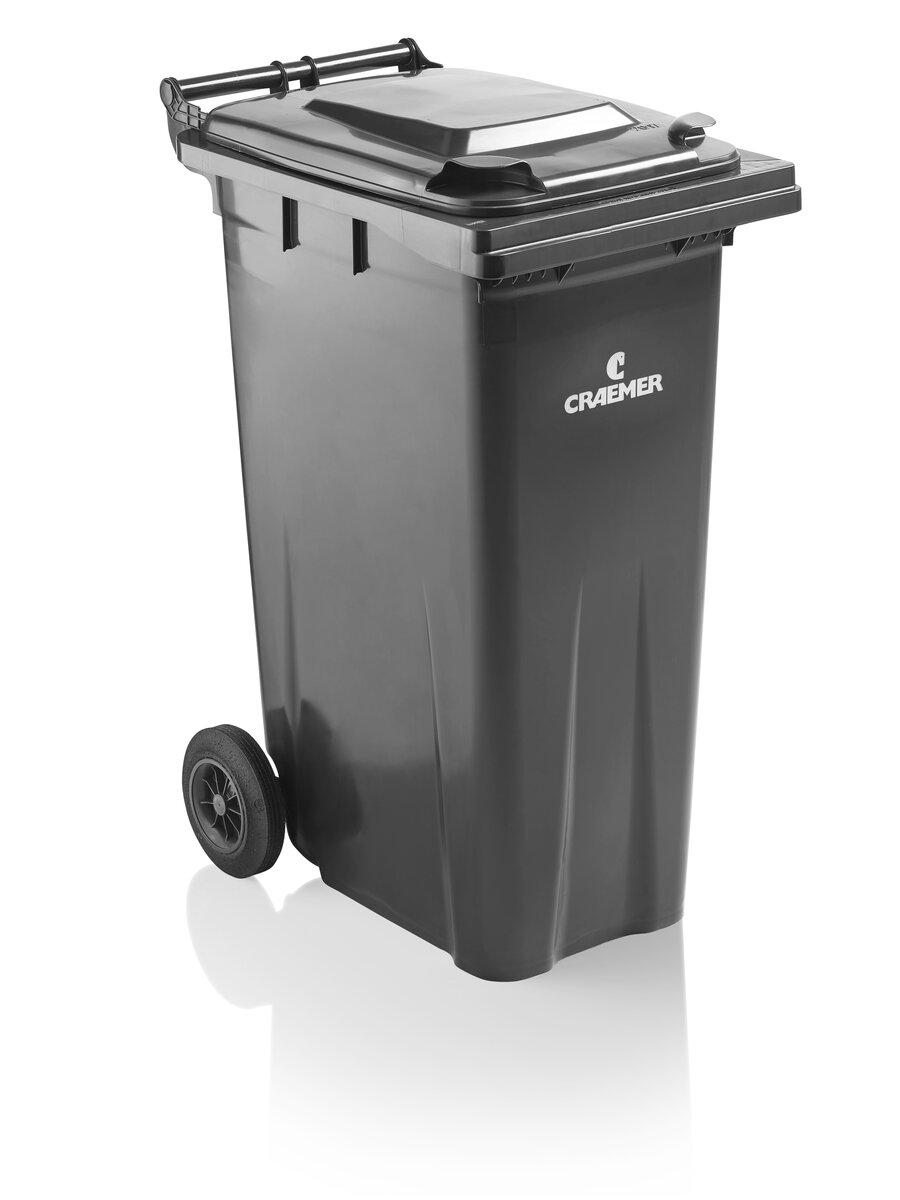

MGBneo 180	505 max. mm	755 max. mm	1100 max. mm	180 l	PE	PE	72 kg	red, green, brown, blue, yellow, anthracite

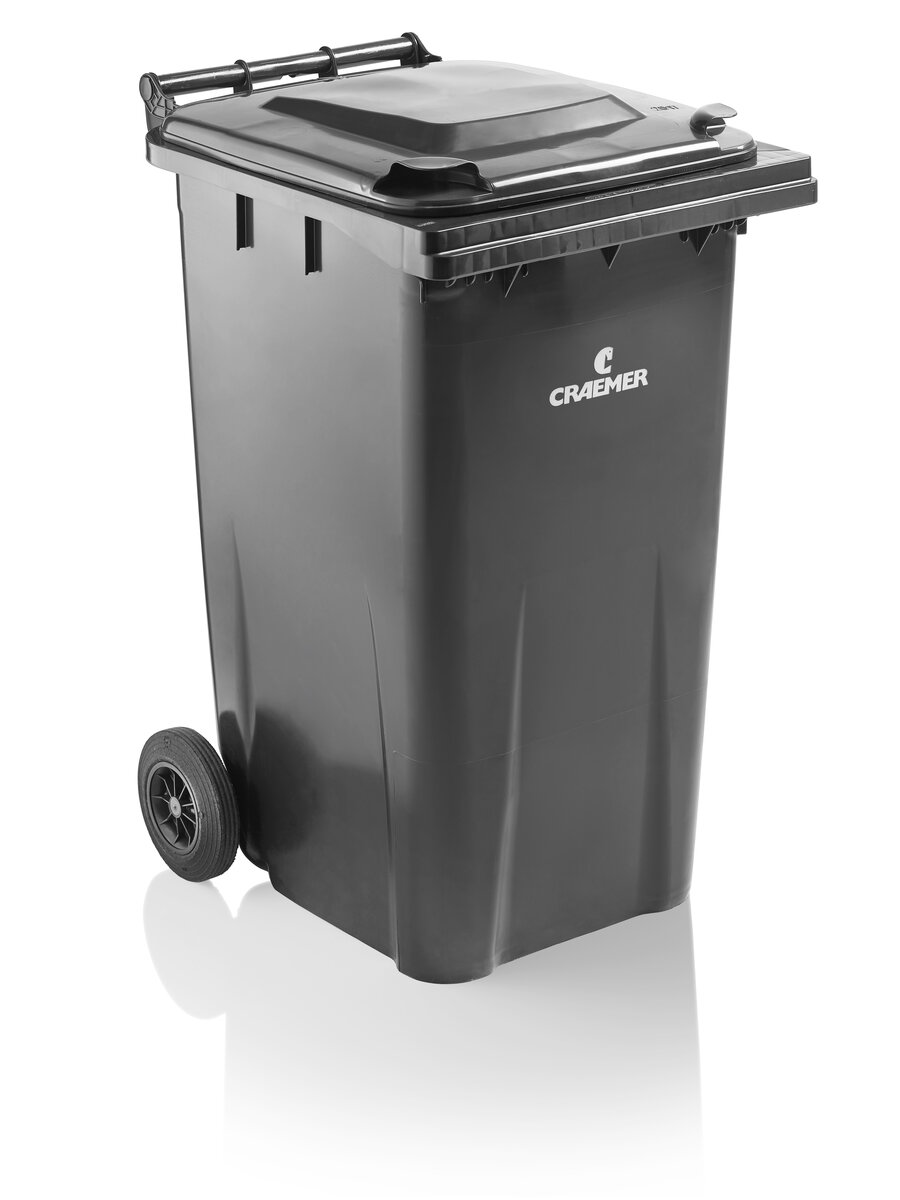

MGBneo 240	580 ±5 mm	740 max. mm	1100 max. mm	240 l	PE	PE	96 kg	red, green, brown, blue, yellow, anthracite
MGBneo 340 360	590 ±20 mm	880 max. mm	1115 max. mm	340 l	PE	PE	136 kg / 144 kg	red, green, brown, blue, yellow, anthracite

Further links:

Video

Data sheet (PDF)

Art. no.	Outer length (mm)	Outer width (mm)	Outer height (mm)	Volume	Material Lid	Material Body	Holding Capacity* ³	Available colours
MGBneo 120	505 max. mm	555 max. mm	1005 max. mm	120 l	PE	PE	48 kg	red, green, brown, blue, yellow, anthracite
MGBneo 140	505 max. mm	555 max. mm	1100 max. mm	140 l	PE	PE	56 kg	red, green, brown, blue, yellow, anthracite
MGBneo 180	505 max. mm	755 max. mm	1100 max. mm	180 l	PE	PE	72 kg	red, green, brown, blue, yellow, anthracite
MGBneo 240	580 ±5 mm	740 max. mm	1100 max. mm	240 l	PE	PE	96 kg	red, green, brown, blue, yellow, anthracite
MGBneo 340 360	590 ±20 mm	880 max. mm	1115 max. mm	340 l	PE	PE	136 kg / 144 kg	red, green, brown, blue, yellow, anthracite

Art. no.: MGBneo 120
Volume: 120 l

Art. no.: MGBneo 140
Volume: 140 l

Art. no.: MGBneo 180
Volume: 180 l

Art. no.: MGBneo 240
Volume: 240 l

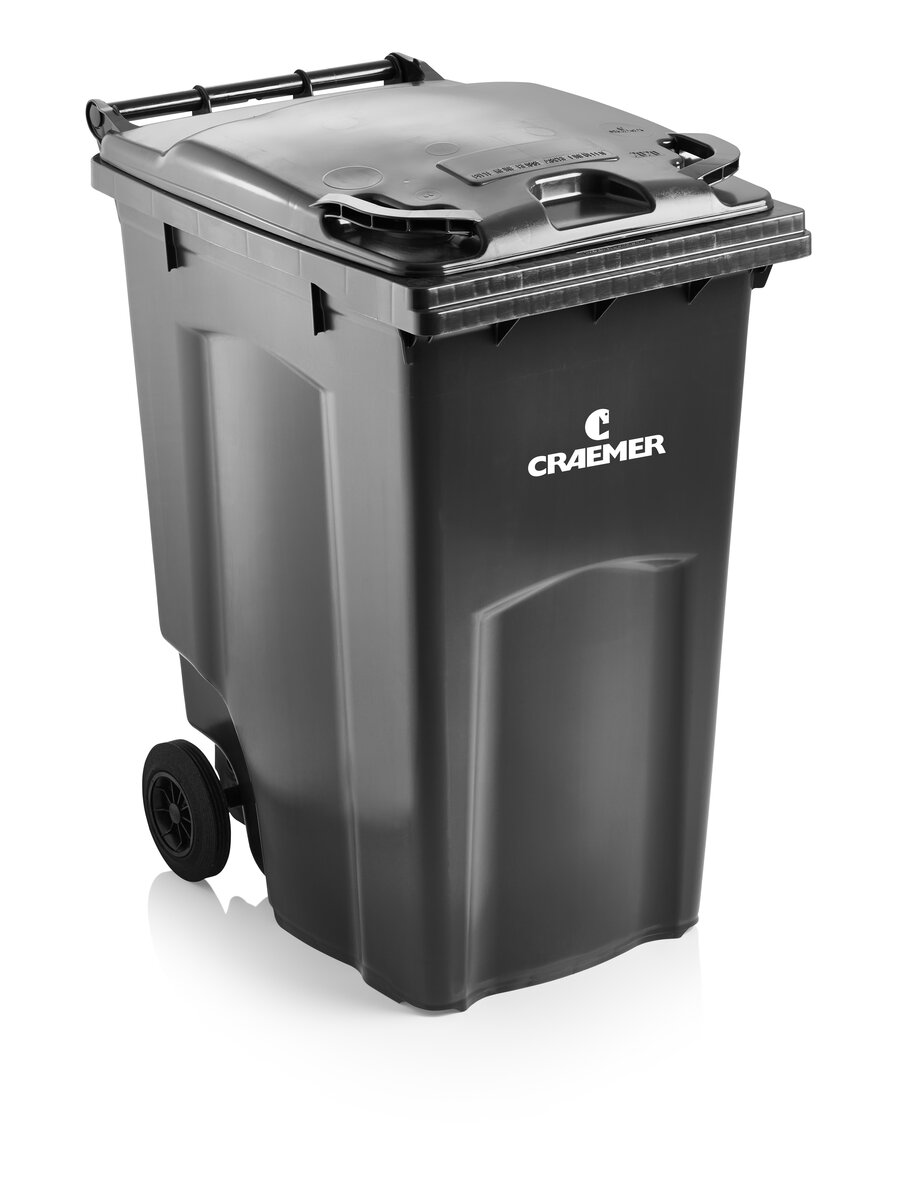

Art. no.: MGBneo 340 360
Volume: 340 l

Technical Data *¹

Container corresponds to	EN 840, RAL-GZ951/1, Directive 2000/14/EG
Travelling gear	External, wheel Ø 200 mm, rubber tired wheels, wheel axle from tempered, galvanized steel
Reciever	Comb lift
Prepared for transponders	Yes
Extra equipment / Accessories ^*2	Lids openable on both sides, Automatic lock, Reflectors, Wheels 120-240 l = Ø 250 mm / 340 l = Ø 300 mm, Paper aperture, Glas aperture, Lid lock

Art. no.	Outer length (mm)	Outer width (mm)	Outer height (mm)	Volume	Material Lid	Material Body	Holding Capacity* ³	Available colours
MGBneo 120	505 max. mm	555 max. mm	1005 max. mm	120 l	PE	PE	48 kg	red, green, brown, blue, yellow, anthracite
MGBneo 140	505 max. mm	555 max. mm	1100 max. mm	140 l	PE	PE	56 kg	red, green, brown, blue, yellow, anthracite
MGBneo 180	505 max. mm	755 max. mm	1100 max. mm	180 l	PE	PE	72 kg	red, green, brown, blue, yellow, anthracite
MGBneo 240	580 ±5 mm	740 max. mm	1100 max. mm	240 l	PE	PE	96 kg	red, green, brown, blue, yellow, anthracite
MGBneo 340 360	590 ±20 mm	880 max. mm	1115 max. mm	340 l	PE	PE	136 kg / 144 kg	red, green, brown, blue, yellow, anthracite

*1:

All specifications quoted are subject to change. Craemer reserve the right to make changes to product design and specification.

*2:

Extra equipment, accessories, as well as other colors are available at extra cost and on request.

Technical Data *¹

Art. no.: MGBneo 120
Volume: 120 l

Art. no.: MGBneo 140
Volume: 140 l

Art. no.: MGBneo 180
Volume: 180 l

Art. no.: MGBneo 240
Volume: 240 l

Art. no.: MGBneo 340 360
Volume: 340 l
Technical drawings

MGBneo Wheelie Bin 120 l

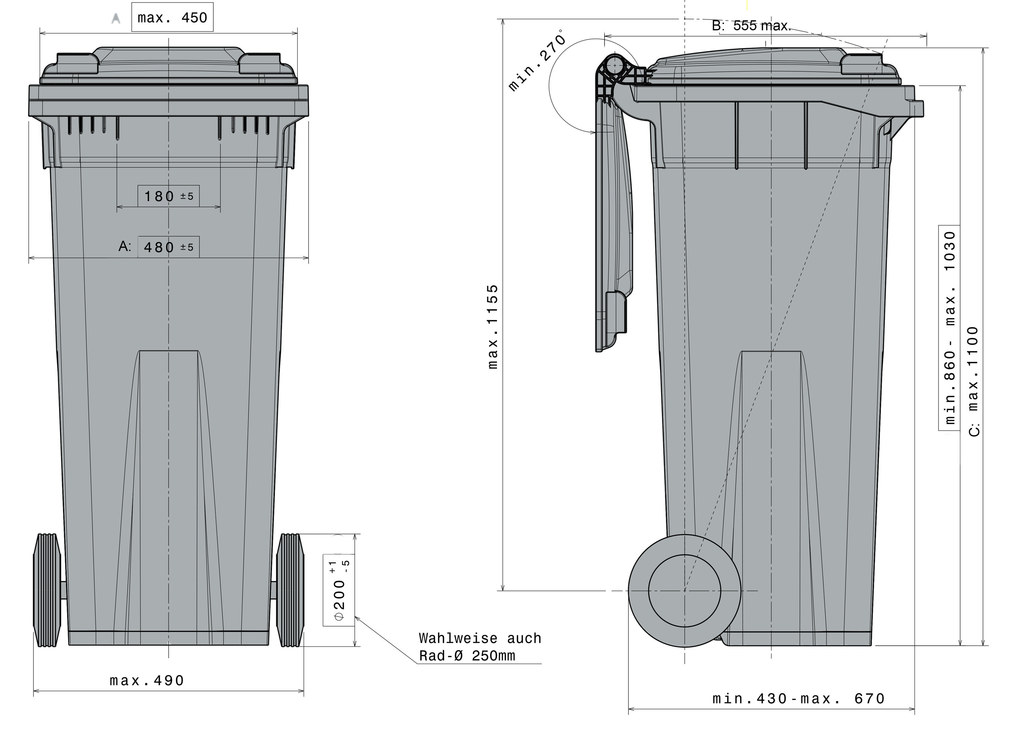

MGBneo Wheelie Bin 140 l

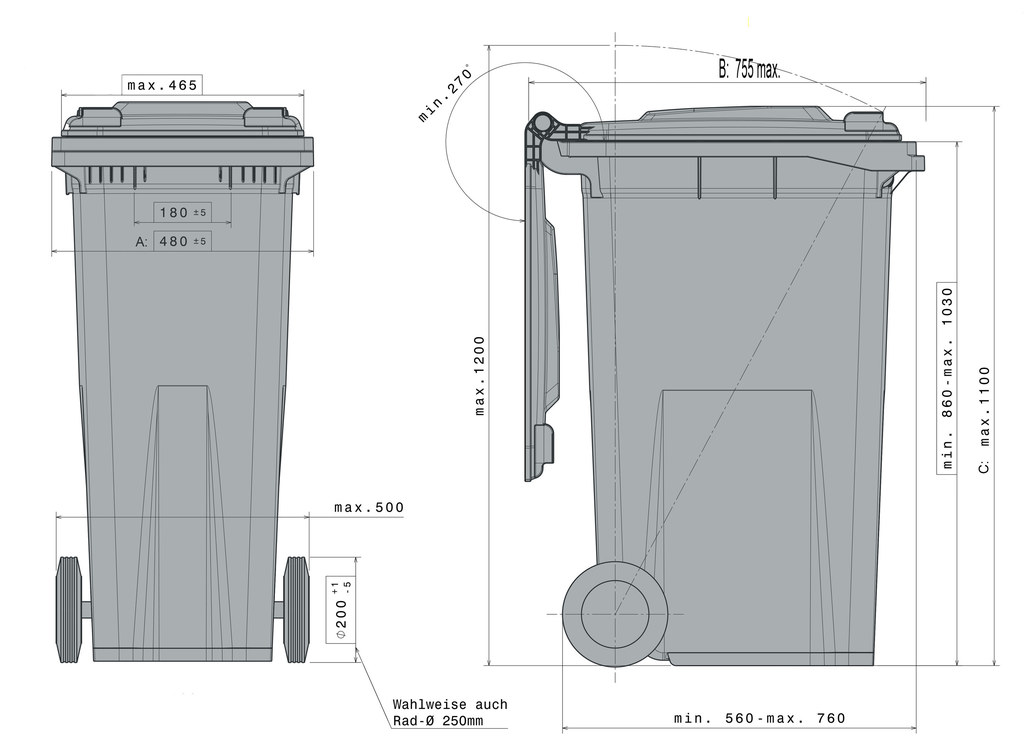

MGBneo Wheelie Bin 180 l

MGBneo Wheelie Bin 240 l

MGBneo Wheelie Bin 340 l
Loading quantities (Pcs / Approximate amount)

On request
Labeling options
On the lid, on the body
