Mortar tub D-SMK

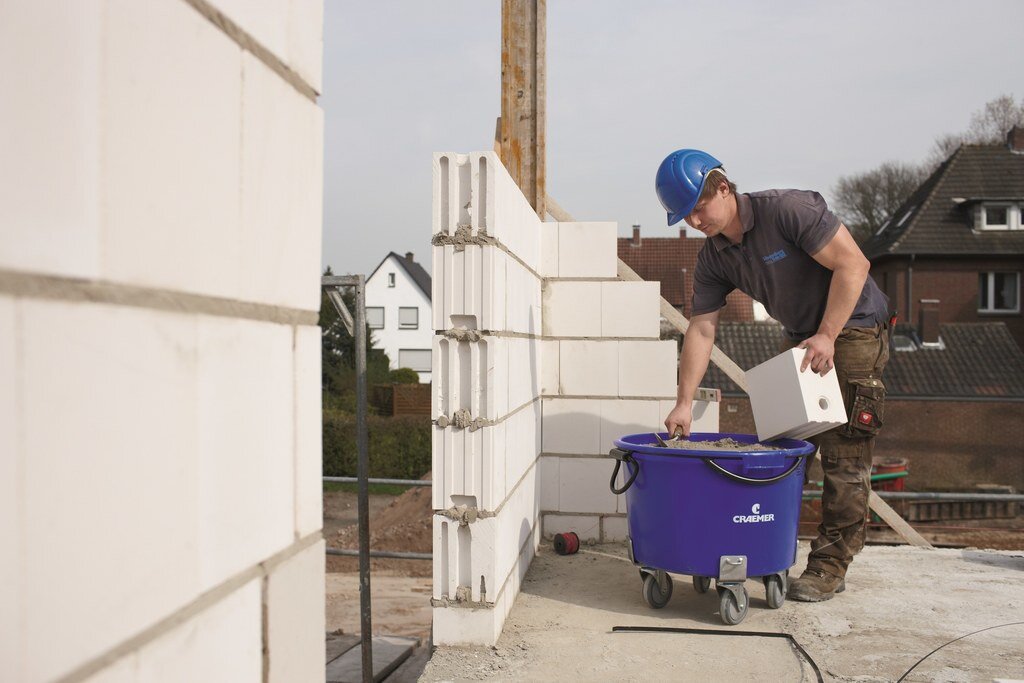

The mortar tubs designed for use by various trades, such as masons, plasterers, stucco plasteres or floorers. They are perfect partners of the ready mortar skips.

Characteristics:

Made from pure PE
Robust construction
Available with or without frame

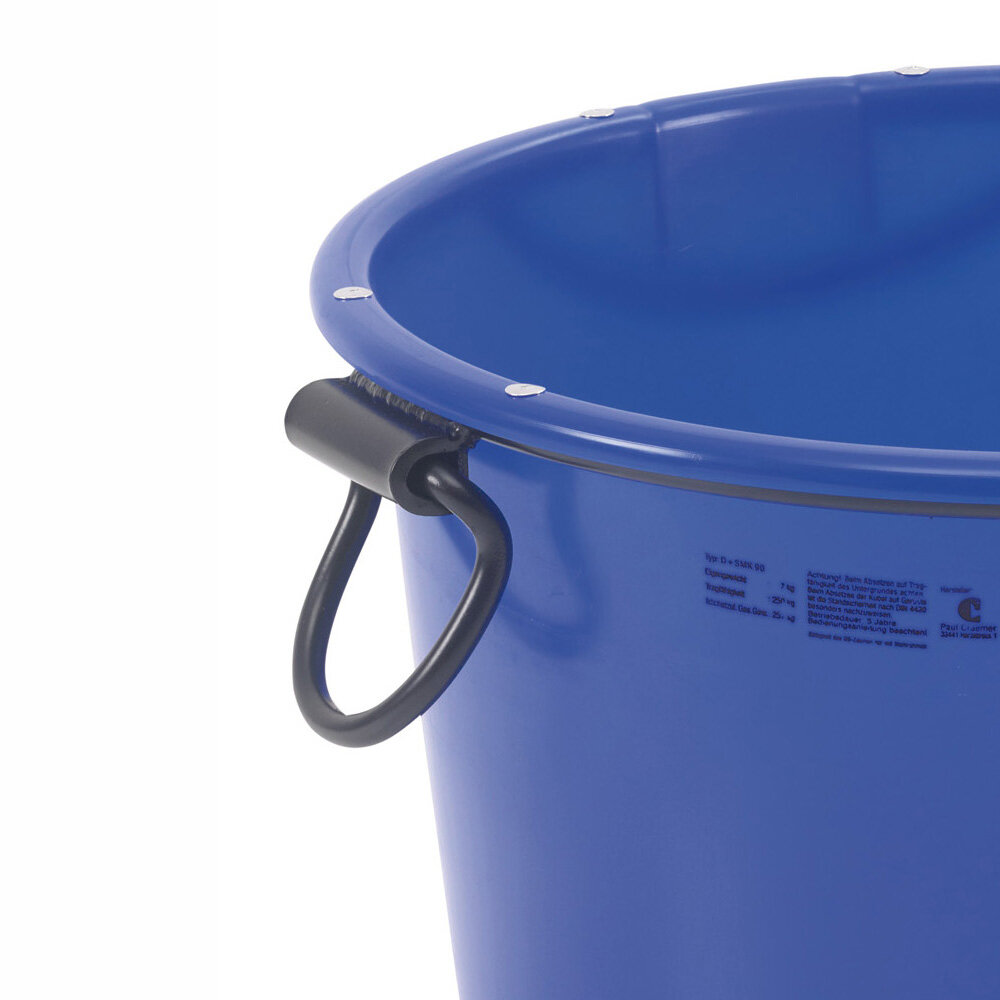

Craneable (with frame)
If used appropriately and serviced regularly, the German quality control authority TÜV attests the mortar tub a safe service life of five years (version with frame)

Accessories:

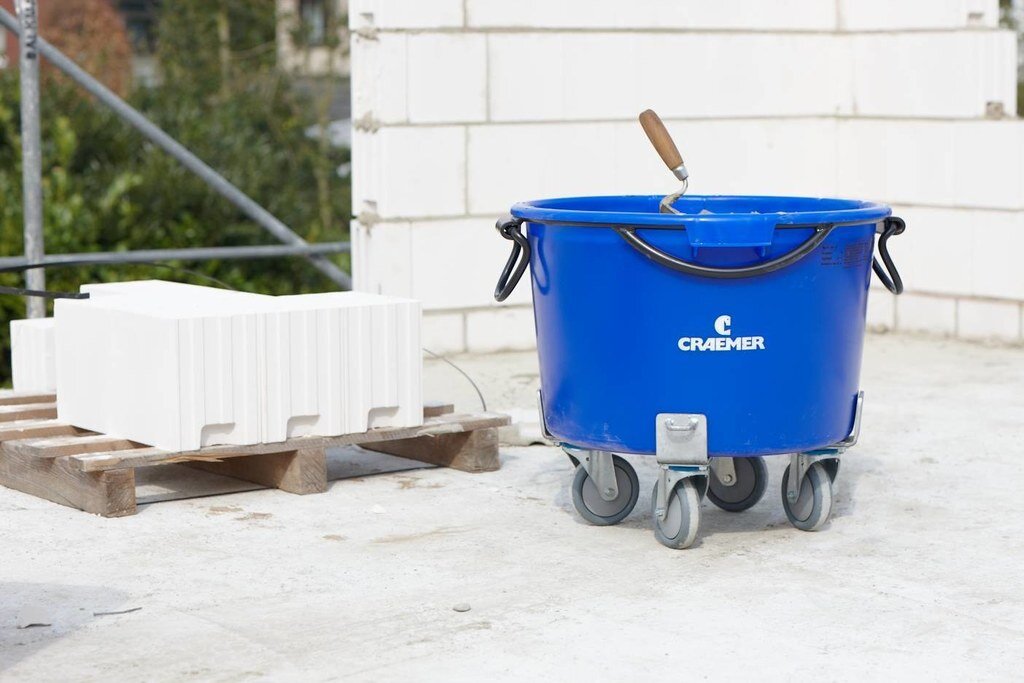

Trolley

Product enquiry

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Material	Holding Capacity* ³	Extra Load	Stacking height inside each other	Colour
81911311	Mortar tub, with coated tubular steel frame, nestable, GS-tested through TÜV product service, no. AL 980811857008	Ø 628 x 385	Ø 576 x 385	7.3 kg	90 l	Tub PE, frame steel	250 kg	257 kg	105 mm	RAL 5010
81911310	Mortar tub 90 l, without frame, nestable	Ø 628 x 385	Ø 576 x 385	3.3 kg	90 l				105 mm	RAL 5010
82710000	Trolley, 4 rubber guide rollers	610 x 555 x 237		9.7 kg		zinc-coated

Further links:

Certificate

Data sheet (PDF)

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Material	Holding Capacity* ³	Extra Load	Stacking height inside each other	Colour
81911311	Mortar tub, with coated tubular steel frame, nestable, GS-tested through TÜV product service, no. AL 980811857008	Ø 628 x 385	Ø 576 x 385	7.3 kg	90 l	Tub PE, frame steel	250 kg	257 kg	105 mm	RAL 5010
81911310	Mortar tub 90 l, without frame, nestable	Ø 628 x 385	Ø 576 x 385	3.3 kg	90 l				105 mm	RAL 5010
82710000	Trolley, 4 rubber guide rollers	610 x 555 x 237		9.7 kg		zinc-coated

Art. no.: 81911311
Colour: RAL 5010
Description: Mortar tub, with coated tubular steel frame, nestable, GS-tested through TÜV product service, no. AL 980811857008

Art. no.: 81911310
Colour: RAL 5010
Description: Mortar tub 90 l, without frame, nestable

Art. no.: 82710000
Description: Trolley, 4 rubber guide rollers

Technical Data *¹

Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Material	Holding Capacity* ³	Extra Load	Stacking height inside each other	Colour
81911311	Mortar tub, with coated tubular steel frame, nestable, GS-tested through TÜV product service, no. AL 980811857008	Ø 628 x 385	Ø 576 x 385	7.3 kg	90 l	Tub PE, frame steel	250 kg	257 kg	105 mm	RAL 5010
81911310	Mortar tub 90 l, without frame, nestable	Ø 628 x 385	Ø 576 x 385	3.3 kg	90 l				105 mm	RAL 5010
82710000	Trolley, 4 rubber guide rollers	610 x 555 x 237		9.7 kg		zinc-coated

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

Technical Data *¹

Art. no.: 81911311
Colour: RAL 5010
Description: Mortar tub, with coated tubular steel frame, nestable, GS-tested through TÜV product service, no. AL 980811857008

Art. no.: 81911310
Colour: RAL 5010
Description: Mortar tub 90 l, without frame, nestable

Art. no.: 82710000
Description: Trolley, 4 rubber guide rollers

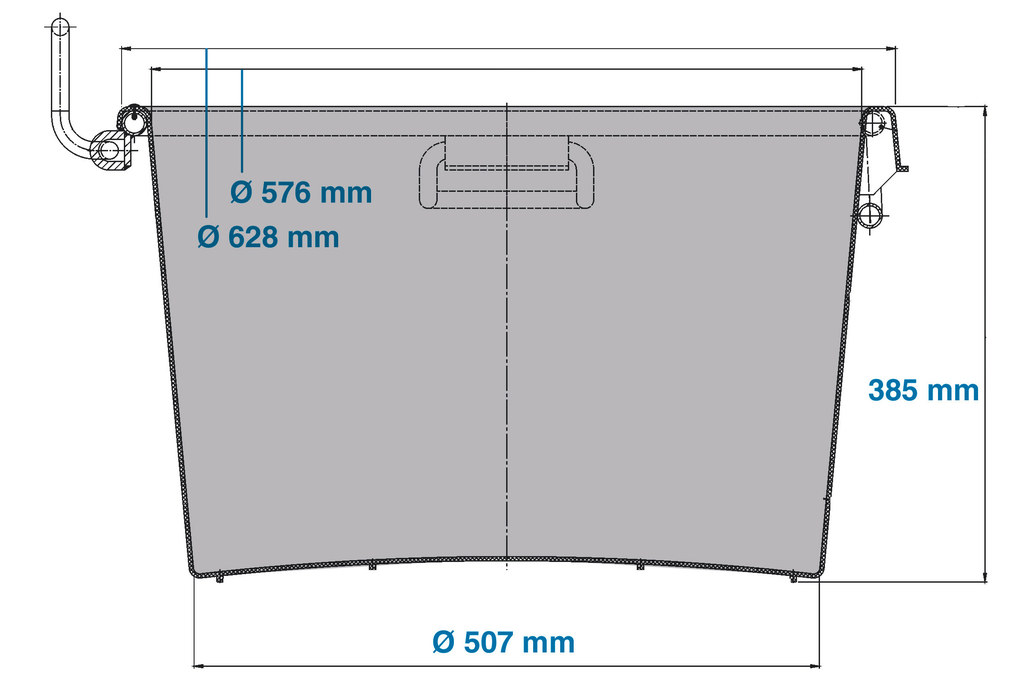

Technical drawings

Mortar tub 90 l
Loading quantities (Pcs / Approximate amount)

On request
Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
