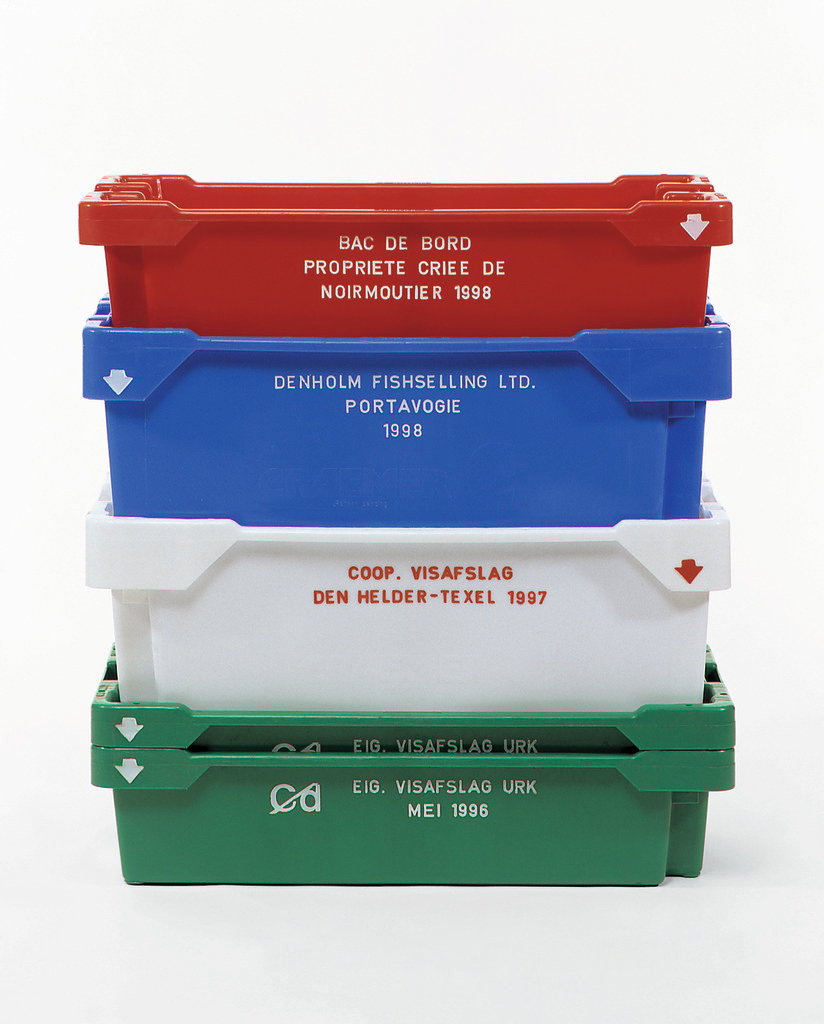

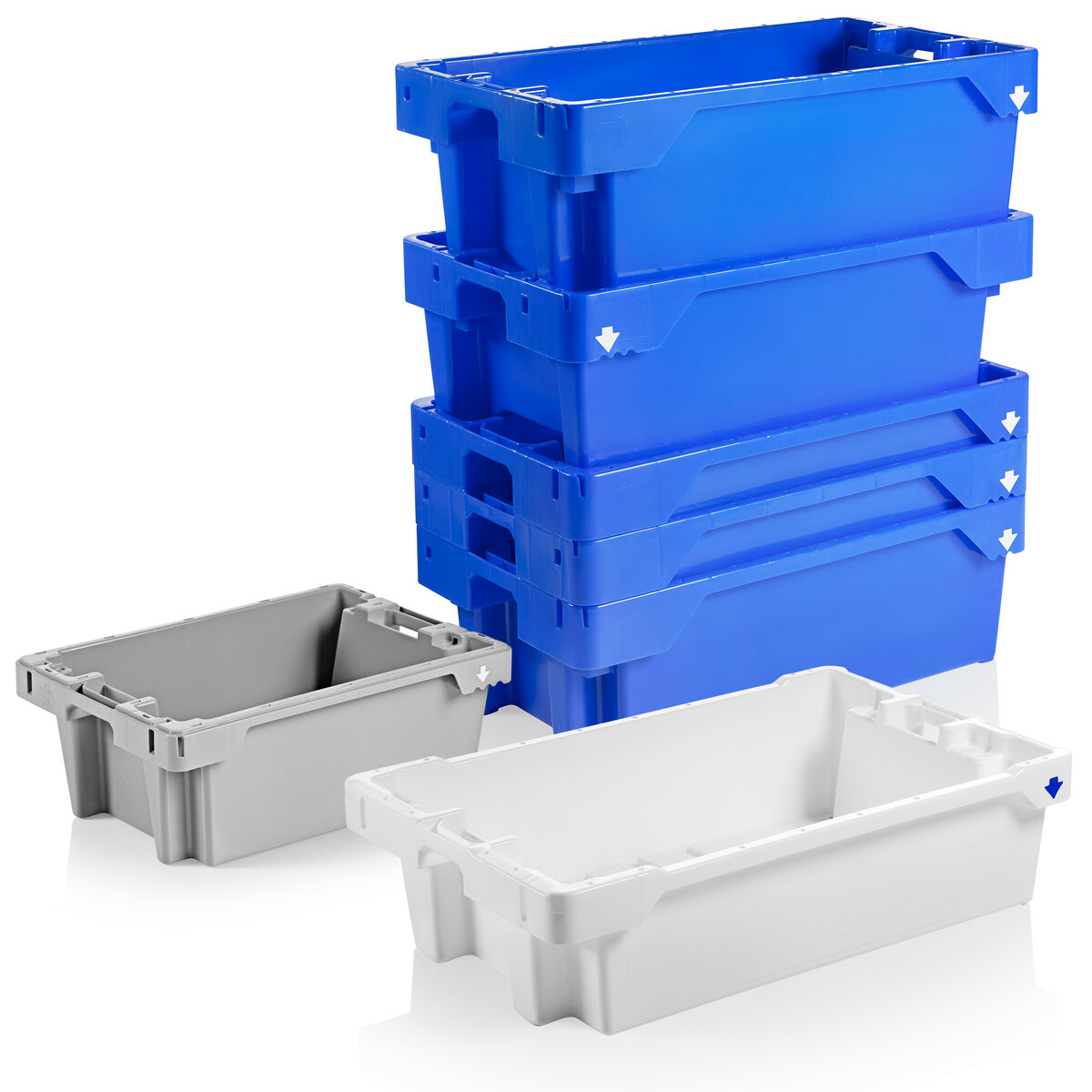

Stack & Nest Boxes

The stack & nest boxes are designed for daily use and fulfill all hygienic and technical requirements for a variety of industries. The application areas for these versatile boxes are manifold, one example is their use as baggage trays at numerous European airports. The stack and nest boxes convince with high impact resistance, long service life and volume reducibility.

Characteristics:

Available in various sizes and versions
Made from pure PE
Long lifetime thanks to high manufacturing quality
Low breakage rate, exceptionally impact resistant
Robust handles
Nestable, stackable
Arrow marking for visual stacking support

Option:

Integration of RFID transponder (selected versions)
Perforated side walls (20 kg box)
Lid (25 kg & 30 kg box)
With or without base openings
Individual colour or labelling available

Product enquiry

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Holding Capacity* ³	Extra Load	Stacking height inside each other	Stacking height on top of each other	Colour
83630300	Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation	600 x 400 x 125	493 x 370 x 100	1.5 kg	15 l	10 kg		55 mm	110 mm	blue
83640300	Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation	600 x 400 x 155	490 x 365 x 125	1.6 kg	20 l	15 kg		55 mm	140 mm	blue

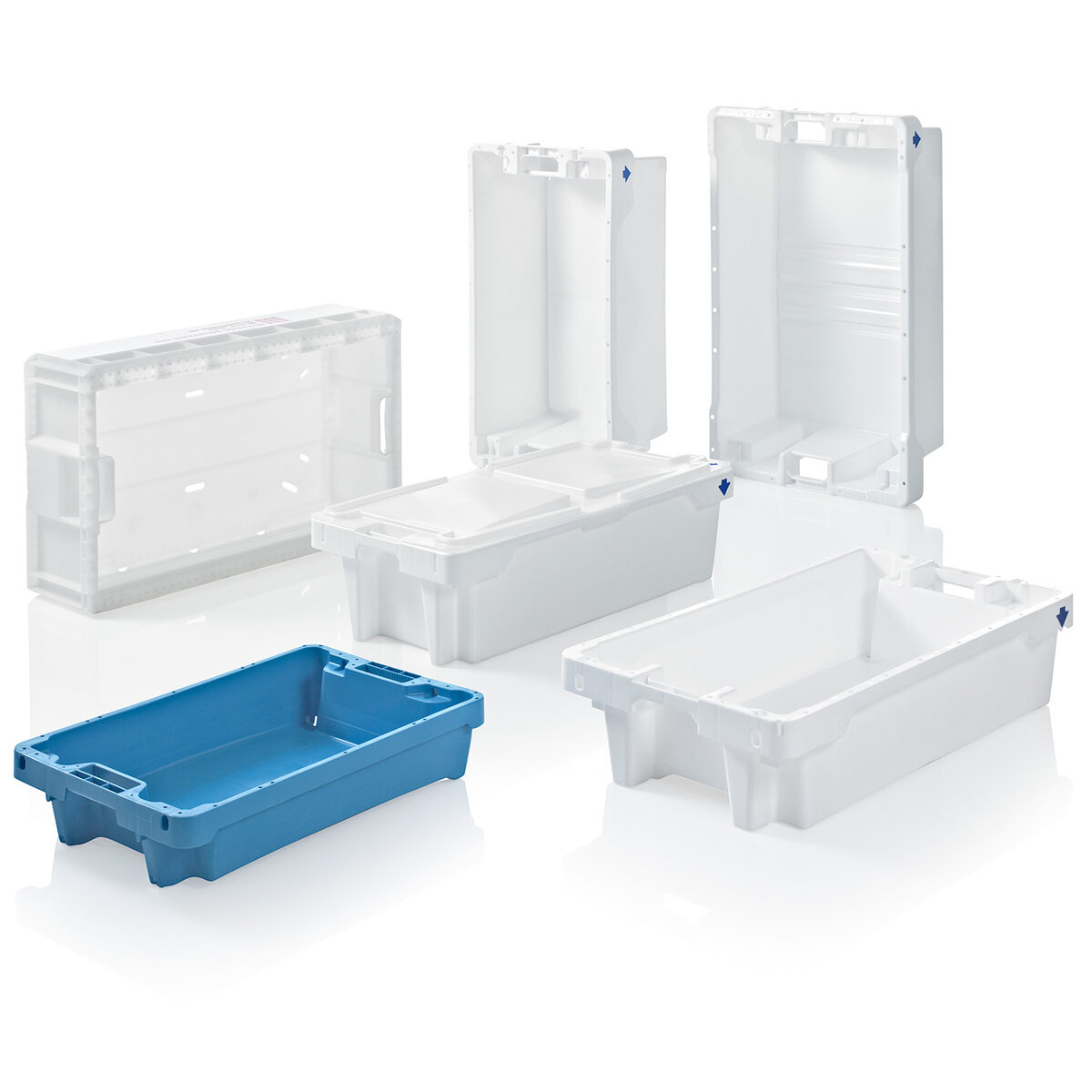

81671010	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	20 kg	295 kg	55 mm	157 mm	white
81670300	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	20 kg	295 kg	55 mm	157 mm	blue

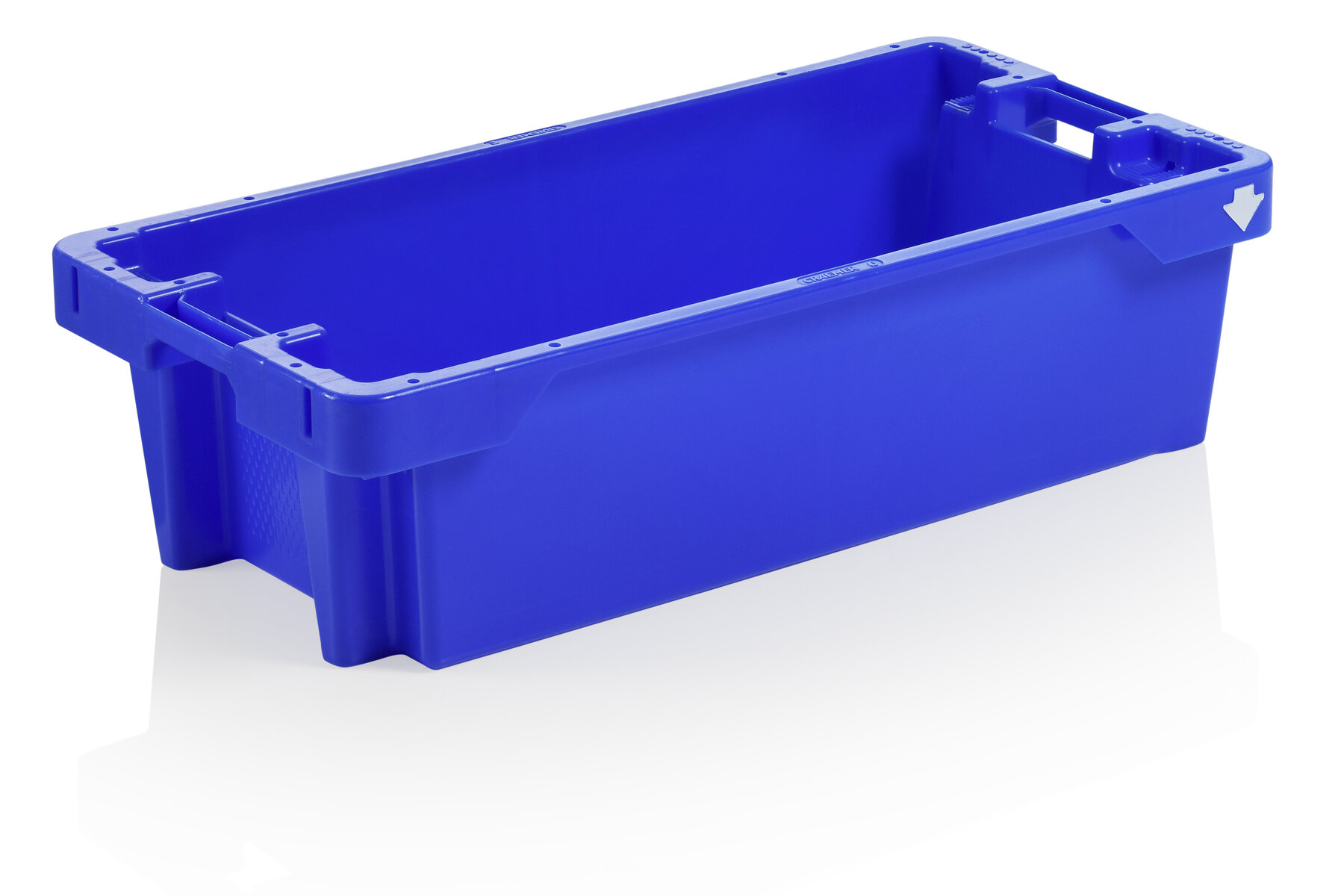

81651100	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	25 kg	250 kg	55 mm	197 mm	white
81650300	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	25 kg	250 kg	55 mm	197 mm	blue
83651110	Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid	800 x 400		1 kg						white

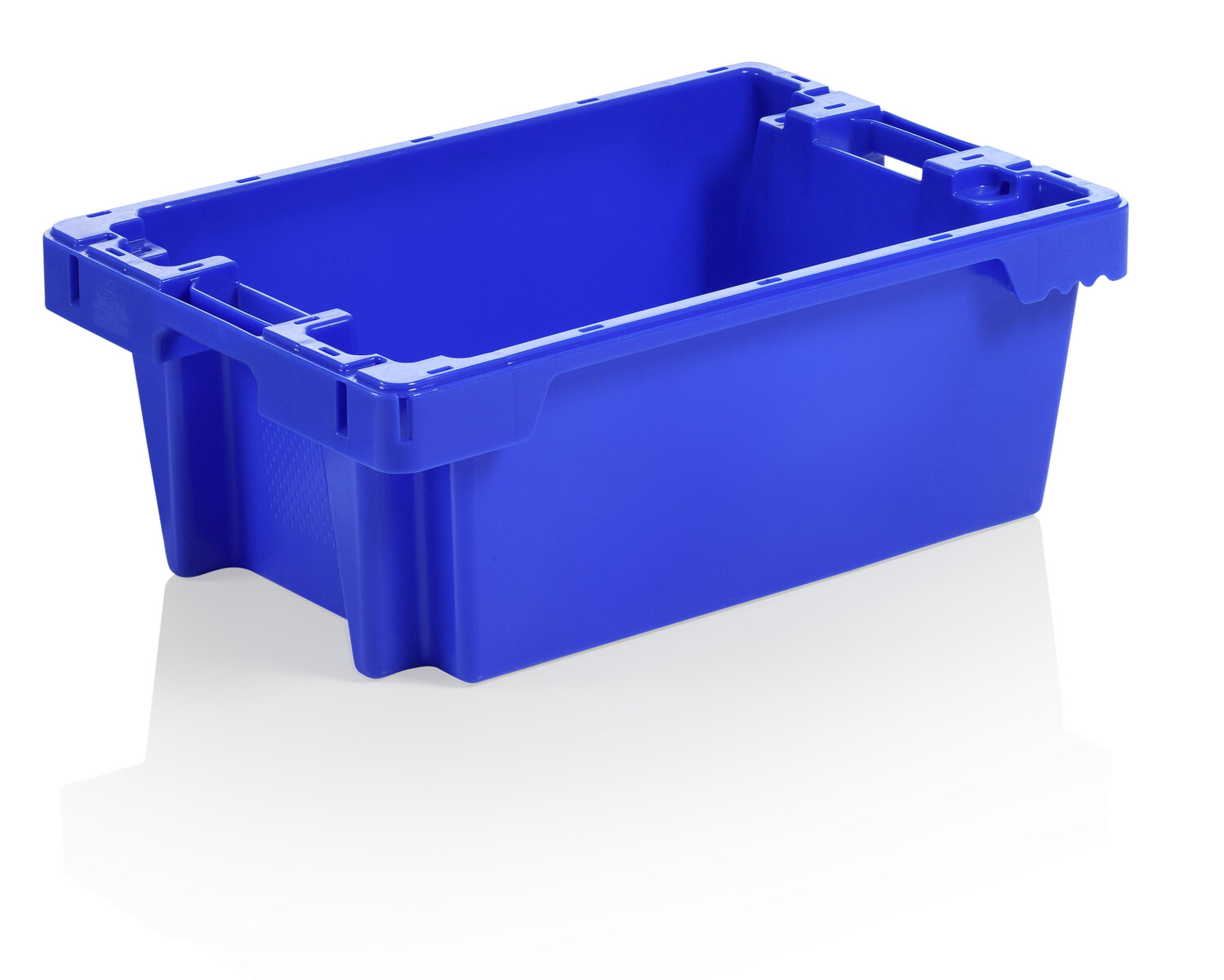

83861310	Stack & Nest Box 30 kg / 32 l, nestable and stackable	600 x 400 x 225	469 x 354 x 221	2.1 kg	32 l	30 kg	300 kg	50 mm	205 mm	blue
83861810	Stack & Nest Box 30 kg / 32 l, nestable and stackable	600 x 400 x 225	469 x 354 x 221	2.1 kg	32 l	30 kg	300 kg	50 mm	205 mm	light grey
83861220	Stack & Nest Box 30 kg / 32 l, nestable and stackable, ESD	600 x 400 x 225	469 x 354 x 221	2.4 kg	32 l	30 kg	300 kg	50 mm	205 mm	black

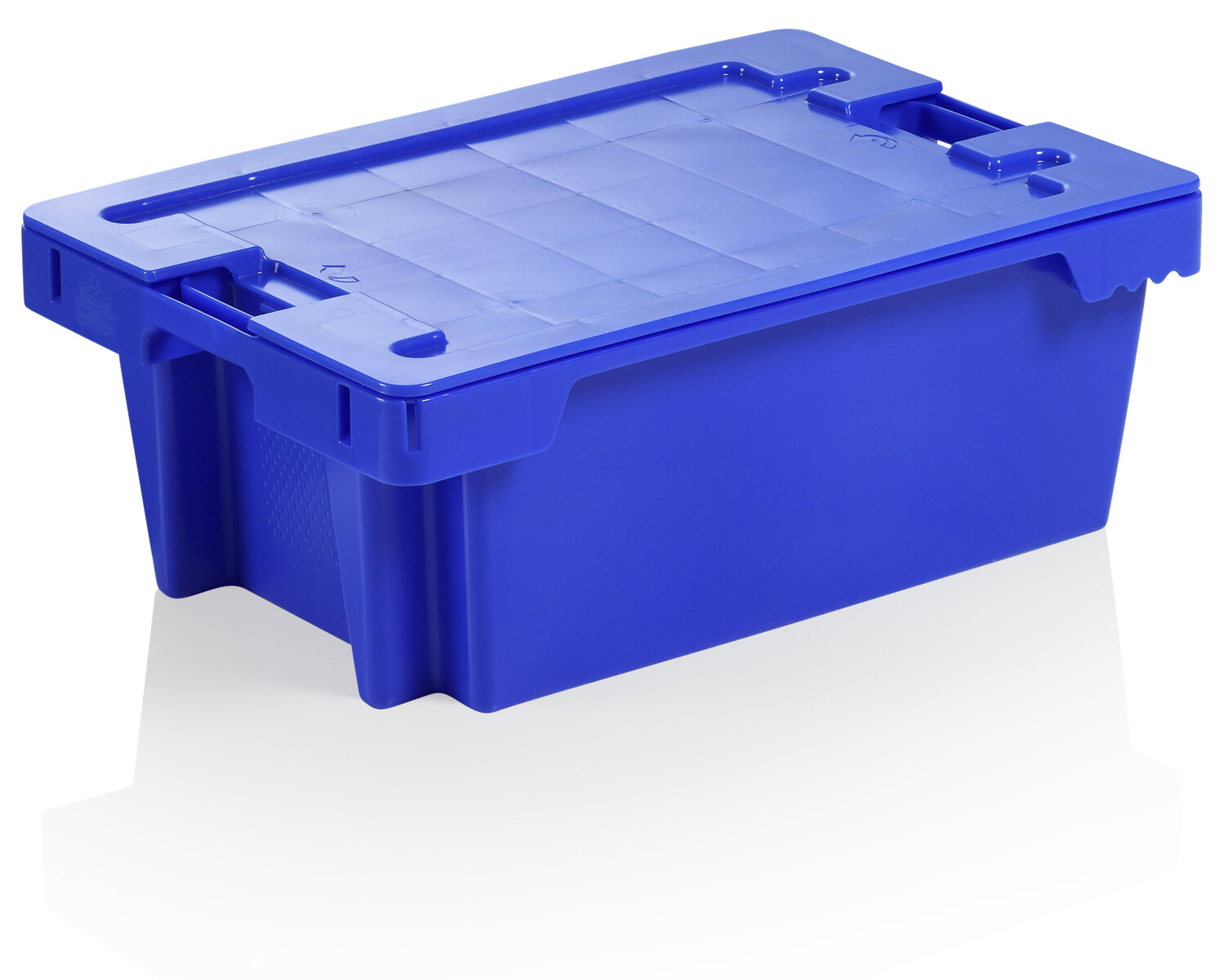

83871310	Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid	598 x 398 x 18		0.8 kg						blue

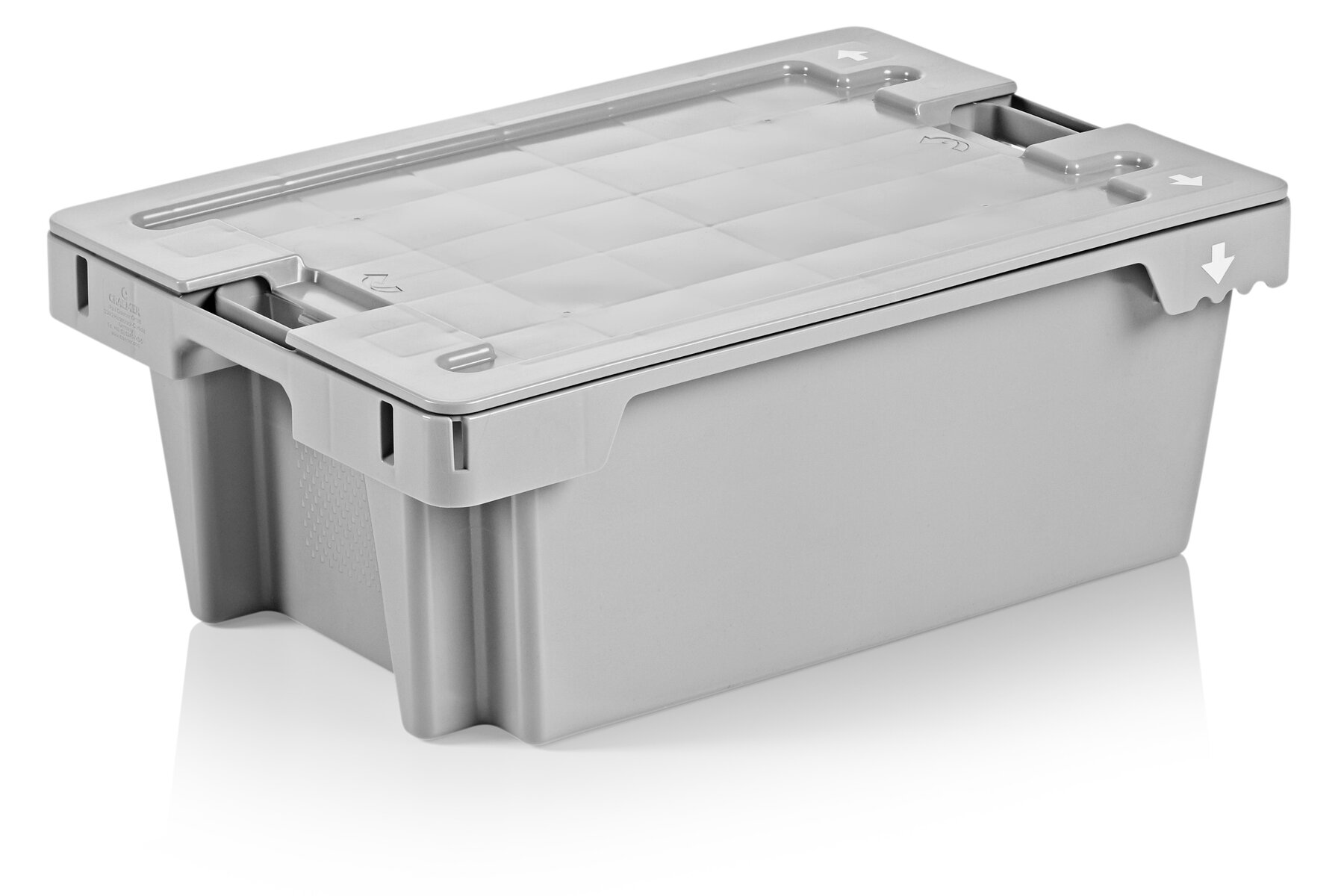

83871810	Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid	598 x 398 x 18		0.8 kg						light grey
81701010	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	40 kg	395 kg	89 mm	238 mm	white
81700300	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	40 kg	395 kg	89 mm	238 mm	blue

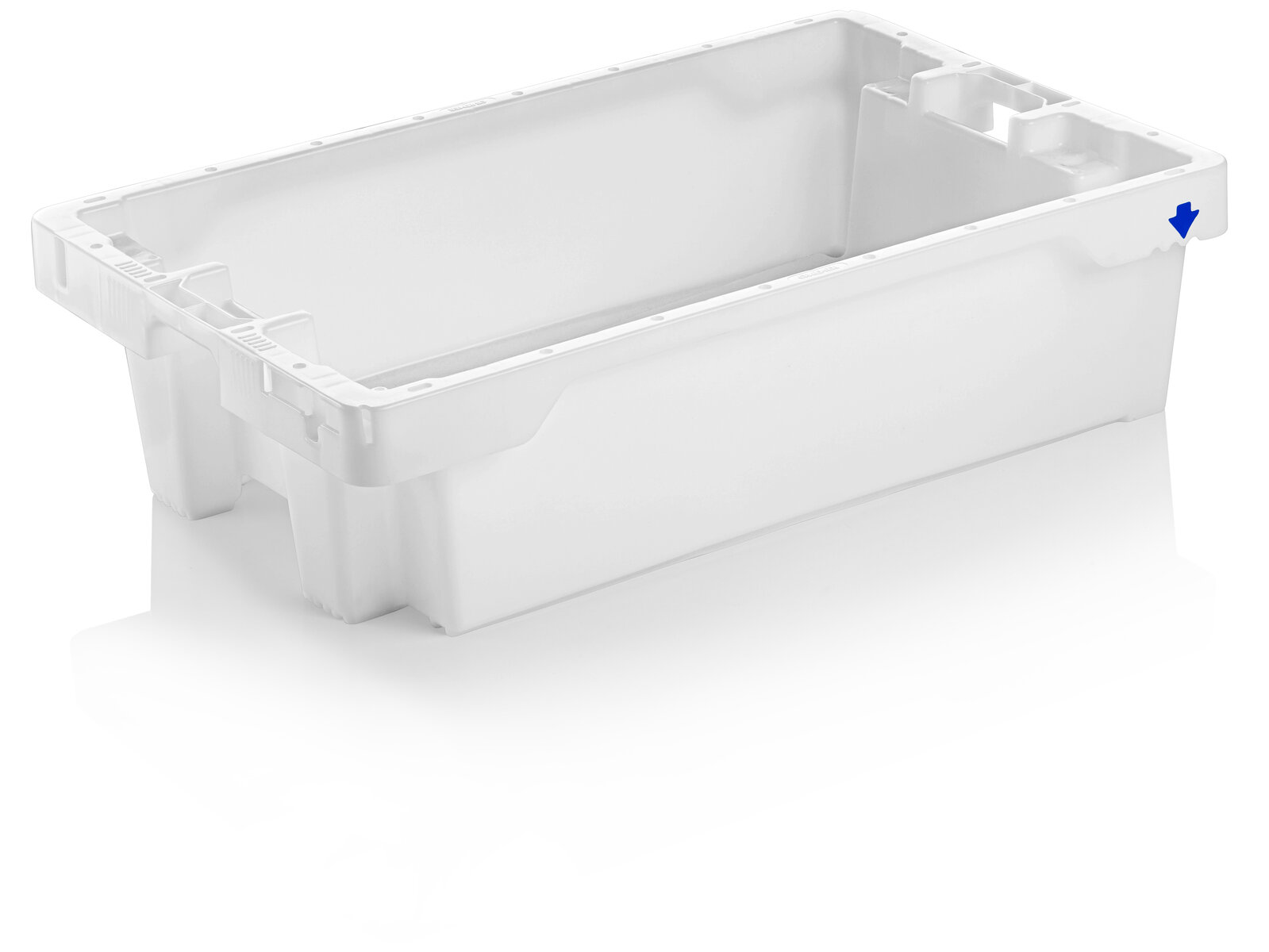

81641111	Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation	885 x 555 x 235	718 x 490 x 227	4.15 kg	75 l	50 kg	450 kg	65 mm	205 mm	white

Further links:

Video

Data sheet (PDF)

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Holding Capacity* ³	Extra Load	Stacking height inside each other	Stacking height on top of each other	Colour
83630300	Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation	600 x 400 x 125	493 x 370 x 100	1.5 kg	15 l	10 kg		55 mm	110 mm	blue
83640300	Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation	600 x 400 x 155	490 x 365 x 125	1.6 kg	20 l	15 kg		55 mm	140 mm	blue
81671010	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	20 kg	295 kg	55 mm	157 mm	white
81670300	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	20 kg	295 kg	55 mm	157 mm	blue
81651100	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	25 kg	250 kg	55 mm	197 mm	white
81650300	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	25 kg	250 kg	55 mm	197 mm	blue
83651110	Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid	800 x 400		1 kg						white
83861310	Stack & Nest Box 30 kg / 32 l, nestable and stackable	600 x 400 x 225	469 x 354 x 221	2.1 kg	32 l	30 kg	300 kg	50 mm	205 mm	blue
83861810	Stack & Nest Box 30 kg / 32 l, nestable and stackable	600 x 400 x 225	469 x 354 x 221	2.1 kg	32 l	30 kg	300 kg	50 mm	205 mm	light grey
83861220	Stack & Nest Box 30 kg / 32 l, nestable and stackable, ESD	600 x 400 x 225	469 x 354 x 221	2.4 kg	32 l	30 kg	300 kg	50 mm	205 mm	black
83871310	Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid	598 x 398 x 18		0.8 kg						blue
83871810	Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid	598 x 398 x 18		0.8 kg						light grey
81701010	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	40 kg	395 kg	89 mm	238 mm	white
81700300	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	40 kg	395 kg	89 mm	238 mm	blue
81641111	Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation	885 x 555 x 235	718 x 490 x 227	4.15 kg	75 l	50 kg	450 kg	65 mm	205 mm	white

Art. no.: 83630300
Colour: blue
Description: Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation

Art. no.: 83640300
Colour: blue
Description: Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation

Art. no.: 81671010
Colour: white
Description: Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation

Art. no.: 81670300
Colour: blue
Description: Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation

Art. no.: 81651100
Colour: white
Description: Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation

Art. no.: 81650300
Colour: blue
Description: Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation

Art. no.: 83651110
Colour: white
Description: Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid

Art. no.: 83861310
Colour: blue
Description: Stack & Nest Box 30 kg / 32 l, nestable and stackable

Art. no.: 83861810
Colour: light grey
Description: Stack & Nest Box 30 kg / 32 l, nestable and stackable

Art. no.: 83861220
Colour: black
Description: Stack & Nest Box 30 kg / 32 l, nestable and stackable, ESD

Art. no.: 83871310
Colour: blue
Description: Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid

Art. no.: 83871810
Colour: light grey
Description: Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid

Art. no.: 81701010
Colour: white
Description: Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation

Art. no.: 81700300
Colour: blue
Description: Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation

Art. no.: 81641111
Colour: white
Description: Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation

Technical Data *¹

Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Description	Length x width x height Outer dimensions (mm)	Length x width x height Internal dimensions (mm)	Weight (kg)	Volume	Holding Capacity* ³	Extra Load	Stacking height inside each other	Stacking height on top of each other	Colour
83630300	Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation	600 x 400 x 125	493 x 370 x 100	1.5 kg	15 l	10 kg		55 mm	110 mm	blue
83640300	Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation	600 x 400 x 155	490 x 365 x 125	1.6 kg	20 l	15 kg		55 mm	140 mm	blue
81671010	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	20 kg	295 kg	55 mm	157 mm	white
81670300	Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation	800 x 450 x 190	645 x 400 x 180	2.6 kg	35 l	20 kg	295 kg	55 mm	157 mm	blue
81651100	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	25 kg	250 kg	55 mm	197 mm	white
81650300	Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation	800 x 400 x 225	670 x 340 x 220	2.6 kg	40 l	25 kg	250 kg	55 mm	197 mm	blue
83651110	Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid	800 x 400		1 kg						white
83861310	Stack & Nest Box 30 kg / 32 l, nestable and stackable	600 x 400 x 225	469 x 354 x 221	2.1 kg	32 l	30 kg	300 kg	50 mm	205 mm	blue
83861810	Stack & Nest Box 30 kg / 32 l, nestable and stackable	600 x 400 x 225	469 x 354 x 221	2.1 kg	32 l	30 kg	300 kg	50 mm	205 mm	light grey
83861220	Stack & Nest Box 30 kg / 32 l, nestable and stackable, ESD	600 x 400 x 225	469 x 354 x 221	2.4 kg	32 l	30 kg	300 kg	50 mm	205 mm	black
83871310	Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid	598 x 398 x 18		0.8 kg						blue
83871810	Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid	598 x 398 x 18		0.8 kg						light grey
81701010	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	40 kg	395 kg	89 mm	238 mm	white
81700300	Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation	800 x 450 x 270	645 x 400 x 260	3.8 kg	60 l	40 kg	395 kg	89 mm	238 mm	blue
81641111	Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation	885 x 555 x 235	718 x 490 x 227	4.15 kg	75 l	50 kg	450 kg	65 mm	205 mm	white

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

Technical Data *¹

Art. no.: 83630300
Colour: blue
Description: Stack & Nest Box / Fillet Box 10 kg / 15 l, nestable and stackable, with base perforation

Art. no.: 83640300
Colour: blue
Description: Stack & Nest Box / Fillet Box 15 kg / 20 l, nestable and stackable, with base perforation

Art. no.: 81671010
Colour: white
Description: Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation

Art. no.: 81670300
Colour: blue
Description: Stack & Nest Box / Fish Box 20 kg / 35 l, nestable and stackable, with base perforation

Art. no.: 81651100
Colour: white
Description: Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation

Art. no.: 81650300
Colour: blue
Description: Stack & Nest Box / Euro Fish Box 25 kg / 40 l, nestable and stackable, with base perforation

Art. no.: 83651110
Colour: white
Description: Lid for Stack & Nest Box / Euro Fish Box 25 kg / 40 l with clamp flaps, container remains stackable with lid

Art. no.: 83861310
Colour: blue
Description: Stack & Nest Box 30 kg / 32 l, nestable and stackable

Art. no.: 83861810
Colour: light grey
Description: Stack & Nest Box 30 kg / 32 l, nestable and stackable

Art. no.: 83861220
Colour: black
Description: Stack & Nest Box 30 kg / 32 l, nestable and stackable, ESD

Art. no.: 83871310
Colour: blue
Description: Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid

Art. no.: 83871810
Colour: light grey
Description: Lid for Stack & Nest Box 30 kg / 32 l, container remains stackable with lid

Art. no.: 81701010
Colour: white
Description: Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation

Art. no.: 81700300
Colour: blue
Description: Stack & Nest Box / Fish Box 40 kg / 60 l, nestable and stackable, with base perforation

Art. no.: 81641111
Colour: white
Description: Stack & Nest Box / Fish Box 50 kg / 75 l, nestable and stackable, with base perforation
Technical drawings

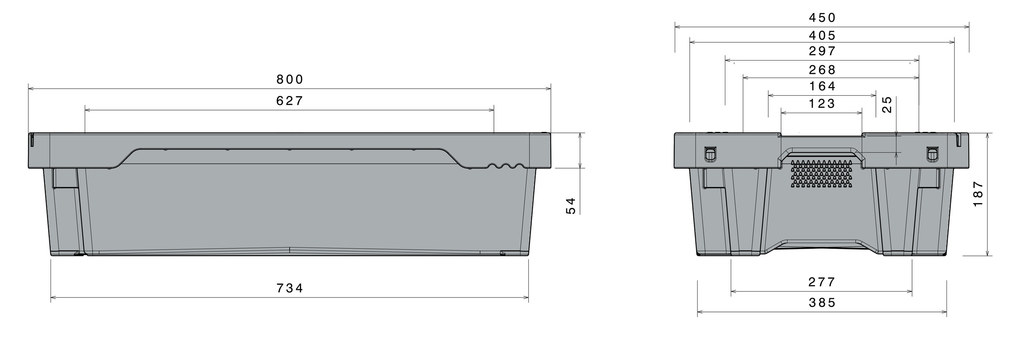

Fish Box 20 kg / 35 l

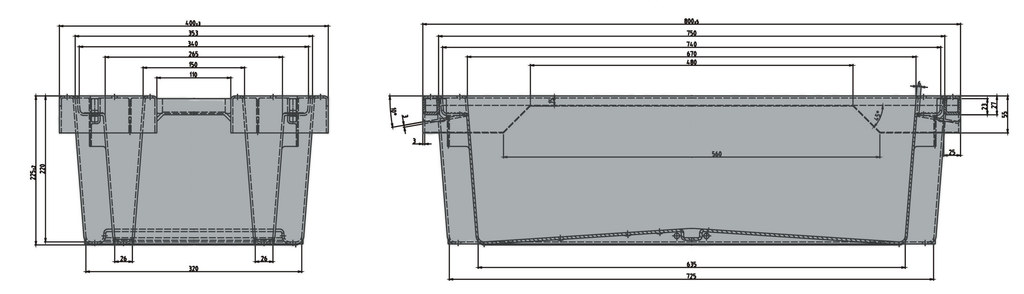

Euro Fish Box 25 kg / 40 l

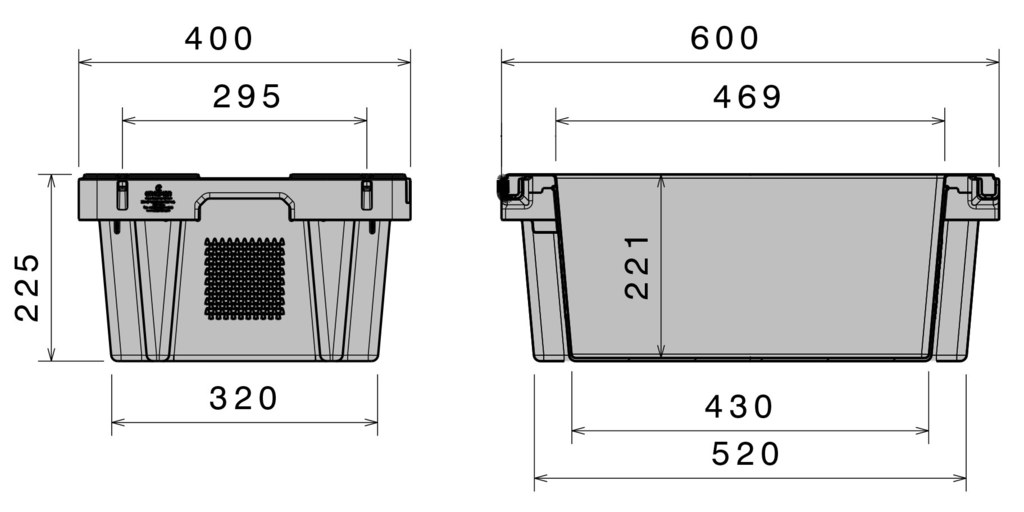

Stack & Nest Box 30 kg / 32 l

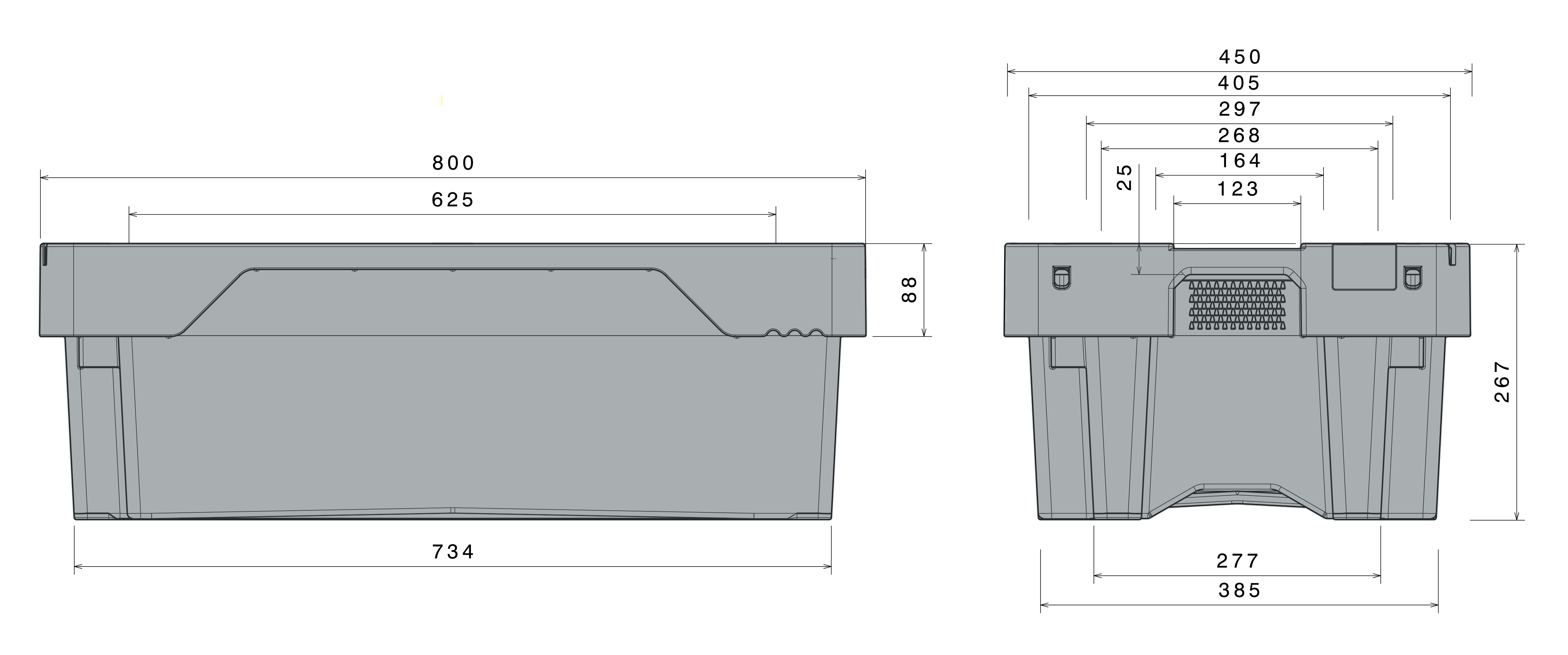

Fish Box 40 kg / 60 l

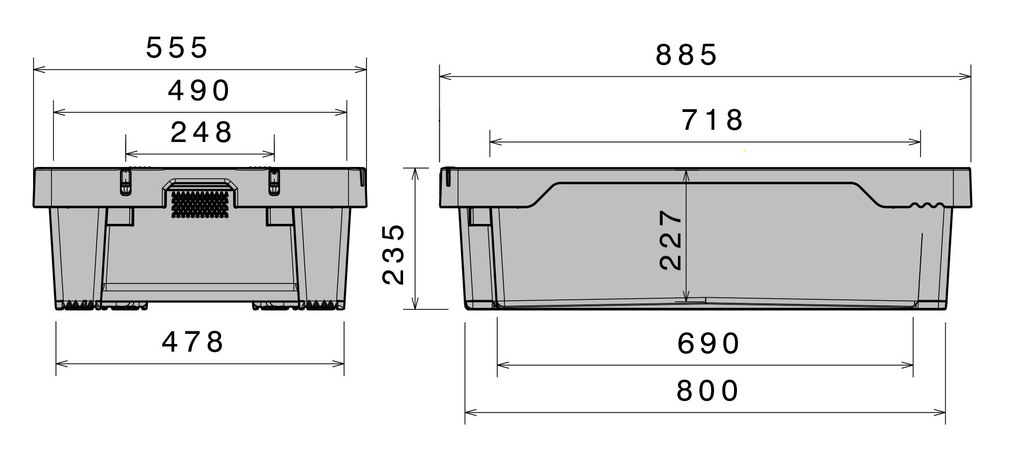

Stack & Nest Box / Fish Box 50 kg / 75 l
Loading quantities (Pcs / Approximate amount)

On request
Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
