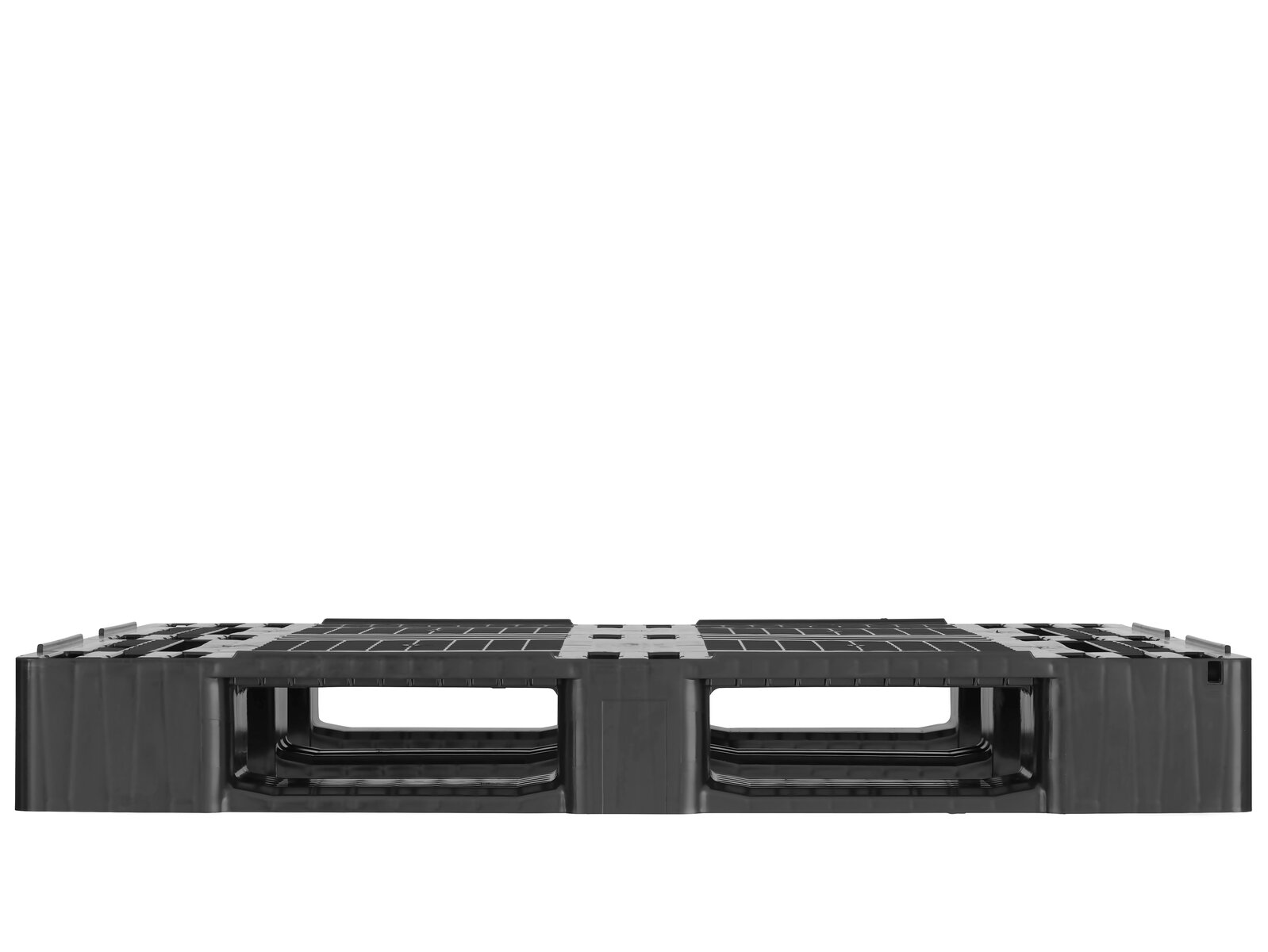

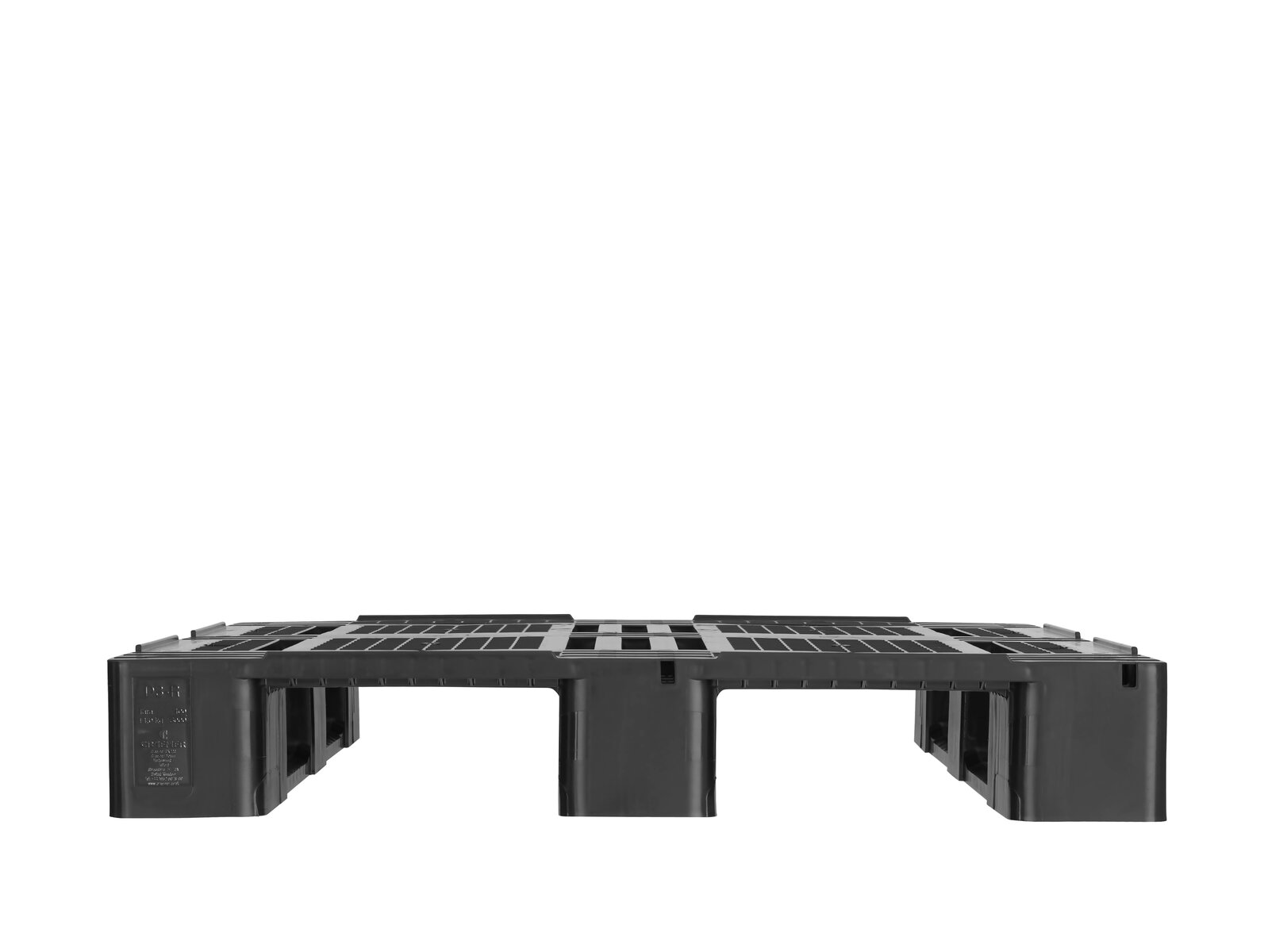

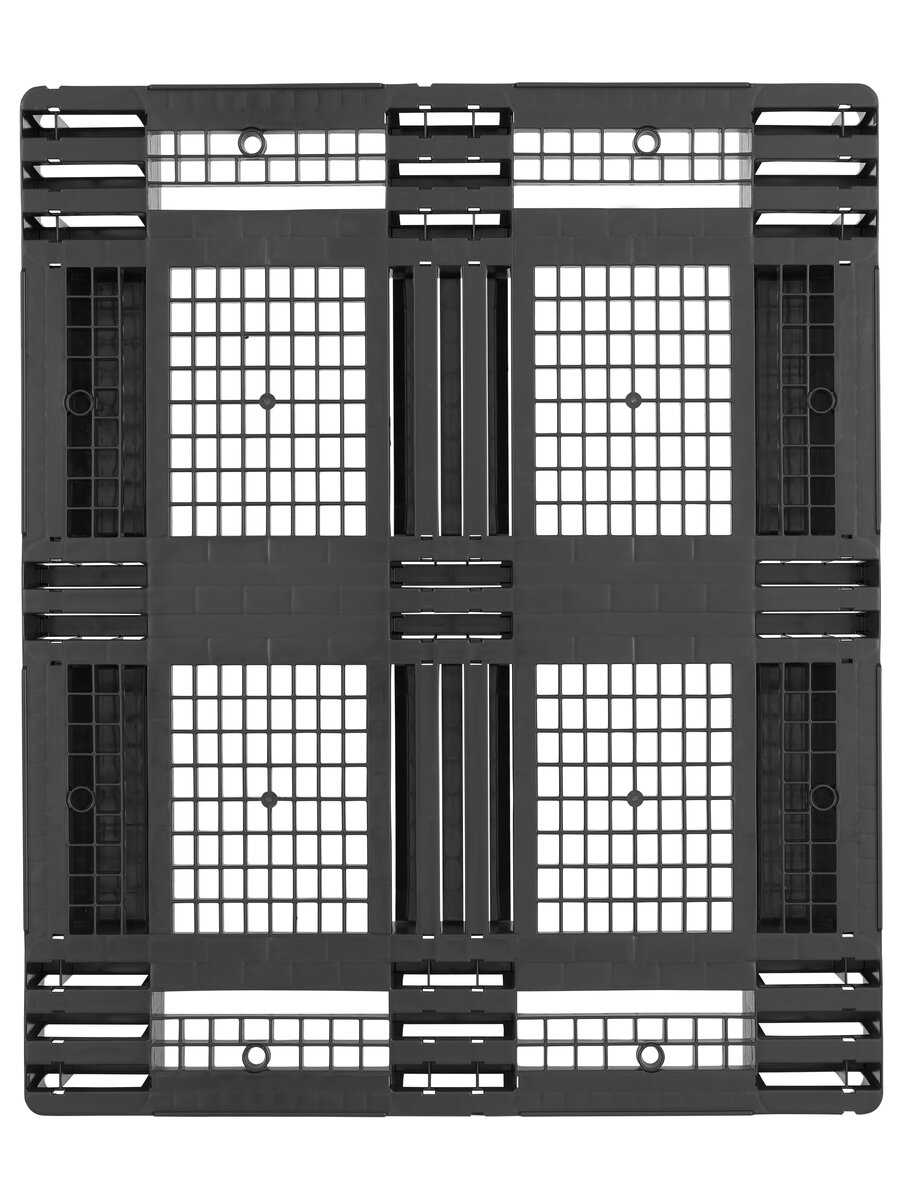

D3 / D3-5

The D3 / D3-5 industrial pallet impresses with a low weight, multiple options, and an attractive price-performance ratio. The industrial sized D pallet is available as a 3-runner pallet or 5-runner pallet and is a true all-around choice: It was specially developed for box applications in the automotive industry, and has proven itself as a universal pallet for use in the distribution and storage of medium weight goods. The load-bearing capacity of the D3 / D3-5 multi-purpose pallet can be increased if desired – with integrated corrosion-protected metal reinforcement profiles.

Characteristics:

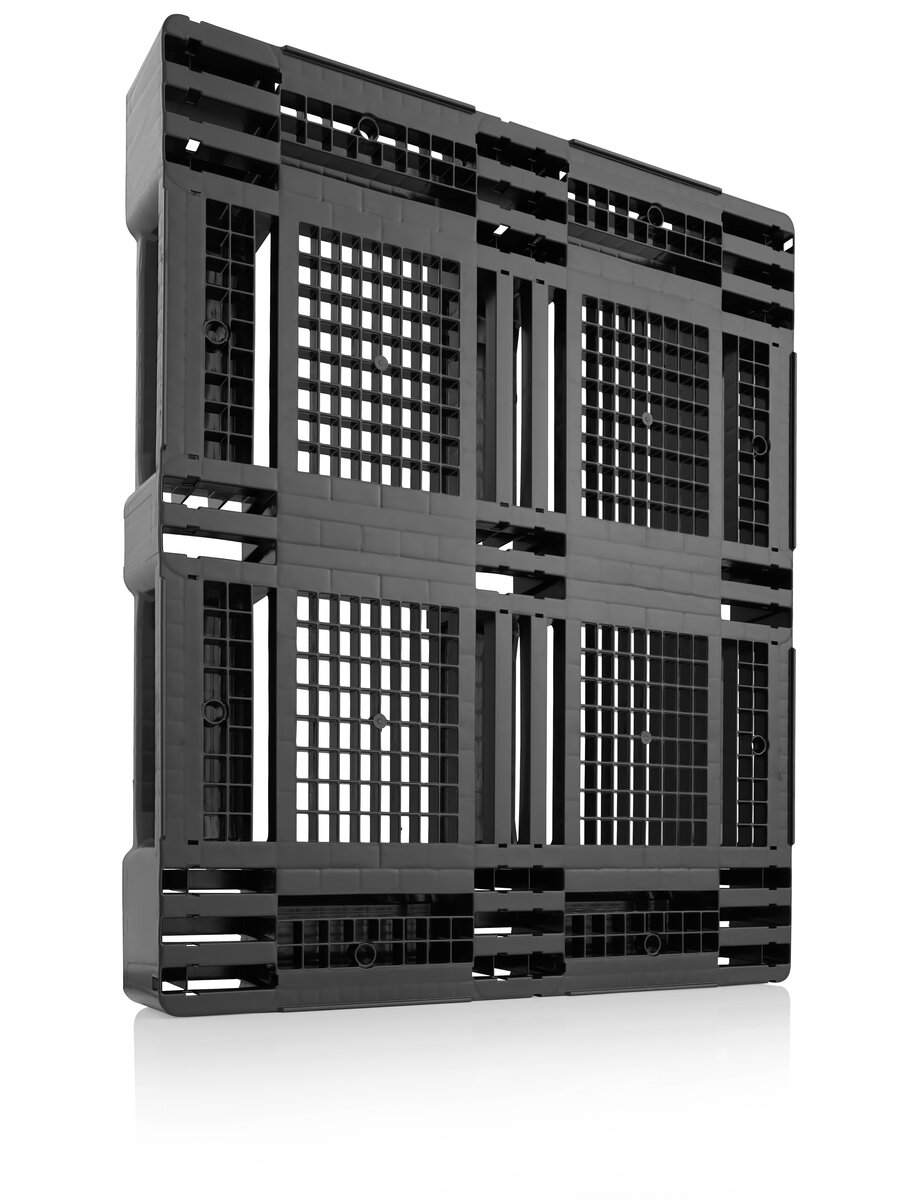

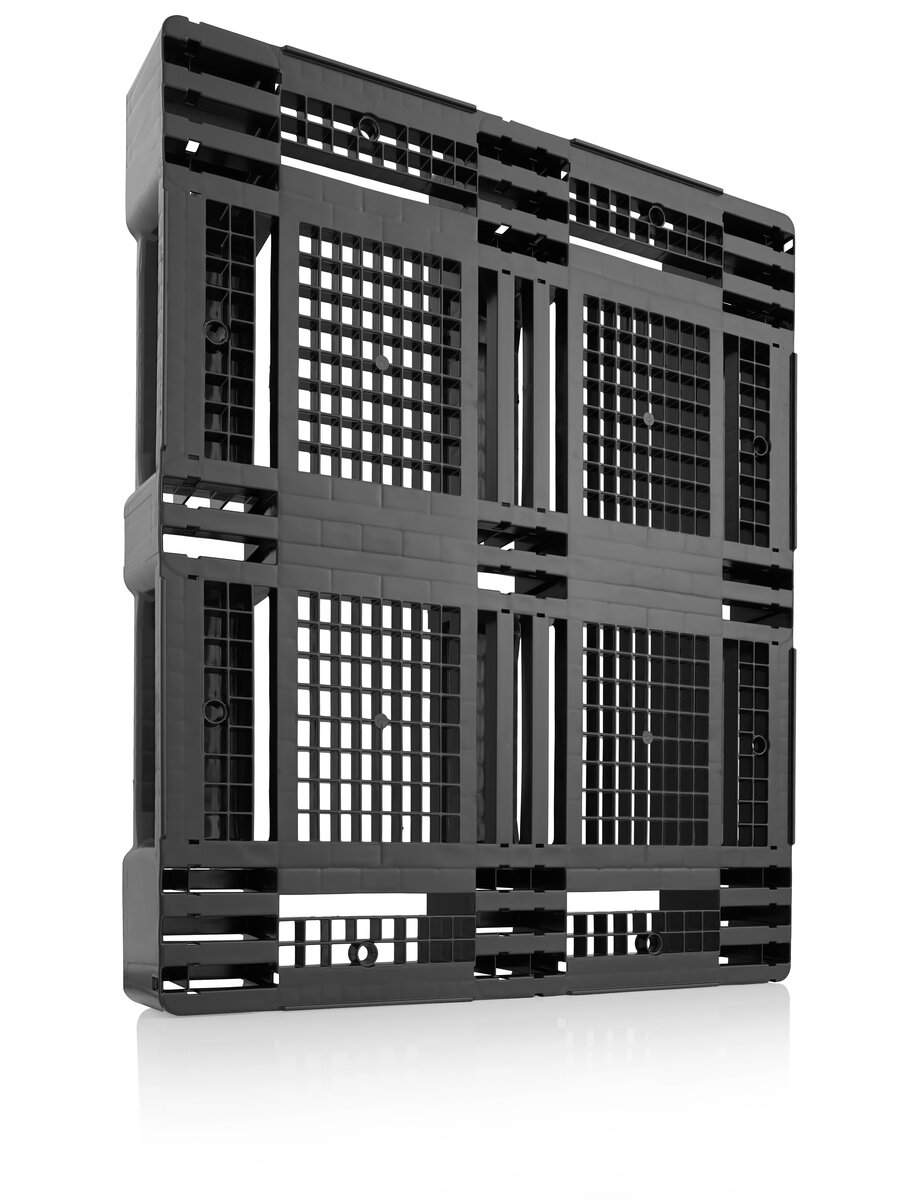

Available with 3 runners (D3) or 5 runners (D3-5)
Ideal for lightweight to medium weight loads
Low tare weight of just 14 and/or 15kg
Robust construction
Versatile and flexible to adapt to current and future requirements
With 22mm outer rim the D3 / D3-5 has interior dimensions of 1200 x 1000mm for box and blister applications
Chamfered edges on both sides of all runners for optimal handling with forklift trucks

Options:

Corrosion-protected reinforcement profiles, for a load-bearing capacity of up to 1,250kg in high rack
Rims: without, 7mm, 22mm, 22mm outside
Lid
Pop-ups for secure stacking when empty (with no-rim version)
RFID transponder
Retrofittable anti-slip plugs from the top to the bottom of the deck

Product enquiry

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	ESD	Reinforcement profiles	Central box retainers	Rim (mm)	Full-surface Palgrip® anti-slip top deck	Palgrip® anti-slip strips on the top deck	Palgrip® anti-slip pads on the top deck	Palgrip® anti-slip clips on the underside of the deck	Palgrip® anti-slip runners	Anti-slip plugs from the top to the underside of the deck	Amount
83310241	15 kg	5,000 kg	1,000 kg	400 kg	black	5, unwelded				7 mm
83315241	14 kg	5,000 kg	1,000 kg	400 kg	black	3, unwelded				7 mm

Further links:

Data sheet (PDF)

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	ESD	Reinforcement profiles	Central box retainers	Rim (mm)	Full-surface Palgrip® anti-slip top deck	Palgrip® anti-slip strips on the top deck	Palgrip® anti-slip pads on the top deck	Palgrip® anti-slip clips on the underside of the deck	Palgrip® anti-slip runners	Anti-slip plugs from the top to the underside of the deck
83310241	15 kg	5,000 kg	1,000 kg	400 kg	black	5, unwelded				7 mm
83315241	14 kg	5,000 kg	1,000 kg	400 kg	black	3, unwelded				7 mm

Art. no.: 83310241
Colour: black
Runners: 5, unwelded
Rim (mm): 7 mm

Art. no.: 83315241
Colour: black
Runners: 3, unwelded
Rim (mm): 7 mm

Technical Data *¹

Dimensions (mm)	1200 x 1000 x 150
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	ESD	Reinforcement profiles	Central box retainers	Rim (mm)	Full-surface Palgrip® anti-slip top deck	Palgrip® anti-slip strips on the top deck	Palgrip® anti-slip pads on the top deck	Palgrip® anti-slip clips on the underside of the deck	Palgrip® anti-slip runners	Anti-slip plugs from the top to the underside of the deck
83310241	15 kg	5,000 kg	1,000 kg	400 kg	black	5, unwelded				7 mm
83315241	14 kg	5,000 kg	1,000 kg	400 kg	black	3, unwelded				7 mm

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Static load: resistance to pressure on a flat ground surface and an evenly distributed load at a room temperature of approx. 20 °C.

Dynamic load: on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

In racking system: evenly distributed load (sacks) along the longitudinal sides. Resting on two supports for over 100 h at a room temperature of approx. 20°C.

Technical Data *¹

Art. no.: 83310241
Colour: black
Runners: 5, unwelded
Rim (mm): 7 mm

Art. no.: 83315241
Colour: black
Runners: 3, unwelded
Rim (mm): 7 mm
Technical drawings

D3 / D3-5 7mm

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 140 St. Container 40': 330 St. Container 40' High Cube: 365 St. Container 45': St. Conventional trailer 45’ high cube container: 416 St.
Truck	MEGA Trailer: 494 St. Jumbo: 532-570 St.

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
