TC3 / TC3-5

The completely closed TC3 / TC3-5 industrial pallet is available with 3 or 5 runners and the perfect fit for any industry that requires maximum hygiene, such as food, pharmaceutical or chemical industry. This hygienic pallet with smooth surfaces offers excellent cleaning properties and the cavity-free construction reliably protects against contamination or water ingress. The TC heavy-duty pallet can be equipped with a full-surface Palgrip^® anti-slip deck to ensure absolutely reliable securing of the load, even in damp conditions or inclined positions.

Characteristics:

Available with 3-runners (TC3) or 5-runners (TC3-5)
High load-bearing capacity for heavy-duty applications
Patented welding seam geometry of the top and bottom deck
Solid wall thicknesses ensure highest impact and breakage resistance
Dimensionally stable with first-class bending parameters, ideal for roller conveyors and automated high rack warehouses
Optimal for transportation and storage of bagged goods
Excellent cleaning properties
No moisture remaining after drying process
Chamfered edges on both sides of all runners for optimal handling with forklift trucks

Options:

Corrosion-protected reinforcement profiles, for a load-bearing capacity of up to 2,000kg in high rack
Rims: without, 7mm, 22mm
Lid
RFID transponder
Full-surface Palgrip^®anti-slip top deck

Product enquiry

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Rim (mm)
87035841	21.5 kg	7,500 kg	1,500 kg	1,250 kg	light grey	3, unwelded		7 mm
87035341	21.5 kg	7,500 kg	1,500 kg	1,250 kg	light blue	3, unwelded		7 mm
87035241	21.5 kg	7,500 kg	1,500 kg	1,250 kg	black	3, unwelded		7 mm
87035843	24 kg	7,500 kg	2,000 kg	2,000 kg	light grey	3, unwelded	3	7 mm
87035351	24 kg	7,500 kg	2,000 kg	2,000 kg	light blue	3, unwelded	3	7 mm
87035251	24 kg	7,500 kg	2,000 kg	2,000 kg	black	3, unwelded	3	7 mm
87030840	22.5 kg	7,500 kg	1,500 kg	1,250 kg	light grey	5, unwelded		7 mm
87030204	22.5 kg	7,500 kg	1,500 kg	1,250 kg	black	5, unwelded		7 mm
87030831	25 kg	7,500 kg	2,000 kg	2,000 kg	light grey	5, unwelded	3	7 mm
87030251	25 kg	7,500 kg	2,000 kg	2,000 kg	black	5, unwelded	3	7 mm

Further links:

Video

Data sheet (PDF)

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Rim (mm)
87035841	21.5 kg	7,500 kg	1,500 kg	1,250 kg	light grey	3, unwelded		7 mm
87035341	21.5 kg	7,500 kg	1,500 kg	1,250 kg	light blue	3, unwelded		7 mm
87035241	21.5 kg	7,500 kg	1,500 kg	1,250 kg	black	3, unwelded		7 mm
87035843	24 kg	7,500 kg	2,000 kg	2,000 kg	light grey	3, unwelded	3	7 mm
87035351	24 kg	7,500 kg	2,000 kg	2,000 kg	light blue	3, unwelded	3	7 mm
87035251	24 kg	7,500 kg	2,000 kg	2,000 kg	black	3, unwelded	3	7 mm
87030840	22.5 kg	7,500 kg	1,500 kg	1,250 kg	light grey	5, unwelded		7 mm
87030204	22.5 kg	7,500 kg	1,500 kg	1,250 kg	black	5, unwelded		7 mm
87030831	25 kg	7,500 kg	2,000 kg	2,000 kg	light grey	5, unwelded	3	7 mm
87030251	25 kg	7,500 kg	2,000 kg	2,000 kg	black	5, unwelded	3	7 mm

Art. no.: 87035841
Colour: light grey
Runners: 3, unwelded
Rim (mm): 7 mm

Art. no.: 87035341
Colour: light blue
Runners: 3, unwelded
Rim (mm): 7 mm

Art. no.: 87035241
Colour: black
Runners: 3, unwelded
Rim (mm): 7 mm

Art. no.: 87035843
Colour: light grey
Runners: 3, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Art. no.: 87035351
Colour: light blue
Runners: 3, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Art. no.: 87035251
Colour: black
Runners: 3, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Art. no.: 87030840
Colour: light grey
Runners: 5, unwelded
Rim (mm): 7 mm

Art. no.: 87030204
Colour: black
Runners: 5, unwelded
Rim (mm): 7 mm

Art. no.: 87030831
Colour: light grey
Runners: 5, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Art. no.: 87030251
Colour: black
Runners: 5, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Technical Data *¹

Dimensions (mm)	1200 x 1000 x 160
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Weight (kg)	Load Capacity (kg) Static *³	Load capacity (kg) Dynamic *³	Load Capacity (kg) In Racking System *³	Colour	Runners	Reinforcement profiles	Rim (mm)
87035841	21.5 kg	7,500 kg	1,500 kg	1,250 kg	light grey	3, unwelded		7 mm
87035341	21.5 kg	7,500 kg	1,500 kg	1,250 kg	light blue	3, unwelded		7 mm
87035241	21.5 kg	7,500 kg	1,500 kg	1,250 kg	black	3, unwelded		7 mm
87035843	24 kg	7,500 kg	2,000 kg	2,000 kg	light grey	3, unwelded	3	7 mm
87035351	24 kg	7,500 kg	2,000 kg	2,000 kg	light blue	3, unwelded	3	7 mm
87035251	24 kg	7,500 kg	2,000 kg	2,000 kg	black	3, unwelded	3	7 mm
87030840	22.5 kg	7,500 kg	1,500 kg	1,250 kg	light grey	5, unwelded		7 mm
87030204	22.5 kg	7,500 kg	1,500 kg	1,250 kg	black	5, unwelded		7 mm
87030831	25 kg	7,500 kg	2,000 kg	2,000 kg	light grey	5, unwelded	3	7 mm
87030251	25 kg	7,500 kg	2,000 kg	2,000 kg	black	5, unwelded	3	7 mm

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Static load: resistance to pressure on a flat ground surface and an evenly distributed load at a room temperature of approx. 20 °C.

Dynamic load: on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

In racking system: evenly distributed load (sacks) along the longitudinal sides. Resting on two supports for over 100 h at a room temperature of approx. 20°C.

Technical Data *¹

Art. no.: 87035841
Colour: light grey
Runners: 3, unwelded
Rim (mm): 7 mm

Art. no.: 87035341
Colour: light blue
Runners: 3, unwelded
Rim (mm): 7 mm

Art. no.: 87035241
Colour: black
Runners: 3, unwelded
Rim (mm): 7 mm

Art. no.: 87035843
Colour: light grey
Runners: 3, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Art. no.: 87035351
Colour: light blue
Runners: 3, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Art. no.: 87035251
Colour: black
Runners: 3, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Art. no.: 87030840
Colour: light grey
Runners: 5, unwelded
Rim (mm): 7 mm

Art. no.: 87030204
Colour: black
Runners: 5, unwelded
Rim (mm): 7 mm

Art. no.: 87030831
Colour: light grey
Runners: 5, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

Art. no.: 87030251
Colour: black
Runners: 5, unwelded
Rim (mm): 7 mm
Reinforcement profiles: 3

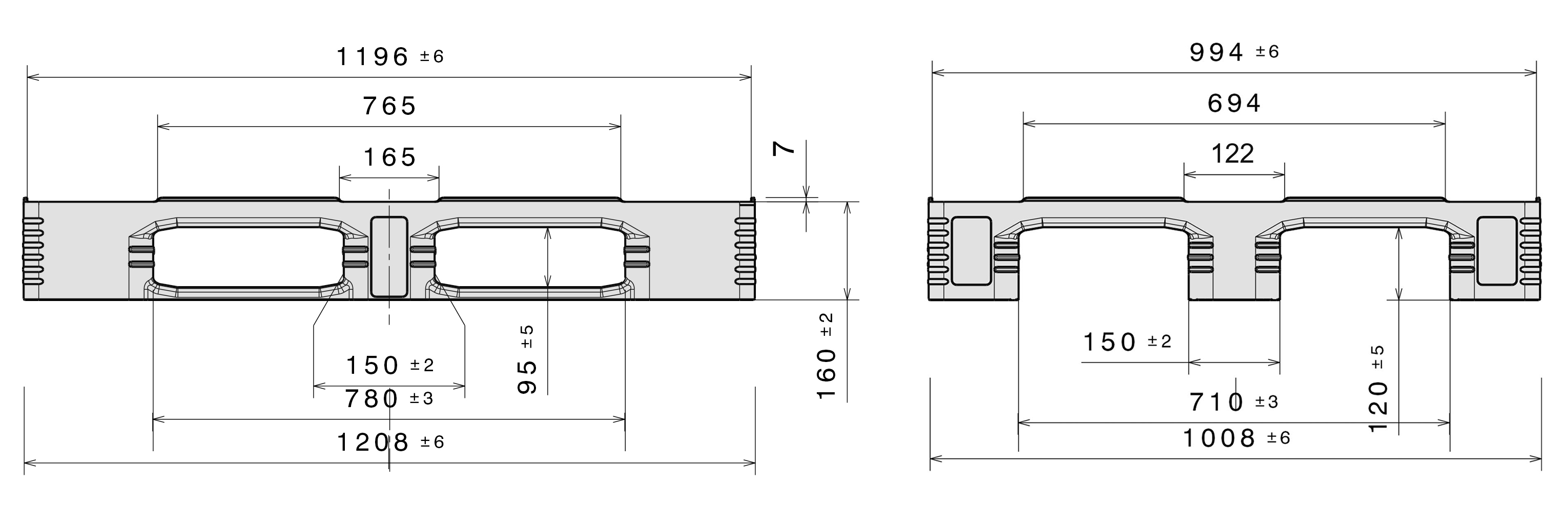

Technical drawings

TC3 7 mm

TC3-5

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 141 Pcs. Container 40': 300 Pcs. Container 40' High Cube: 340 Pcs. Conventional trailer 45’ high cube container: 416 Pcs.
Truck	MEGA Trailer: 468 Pcs. Jumbo: 504-540 Pcs.

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
