CB1

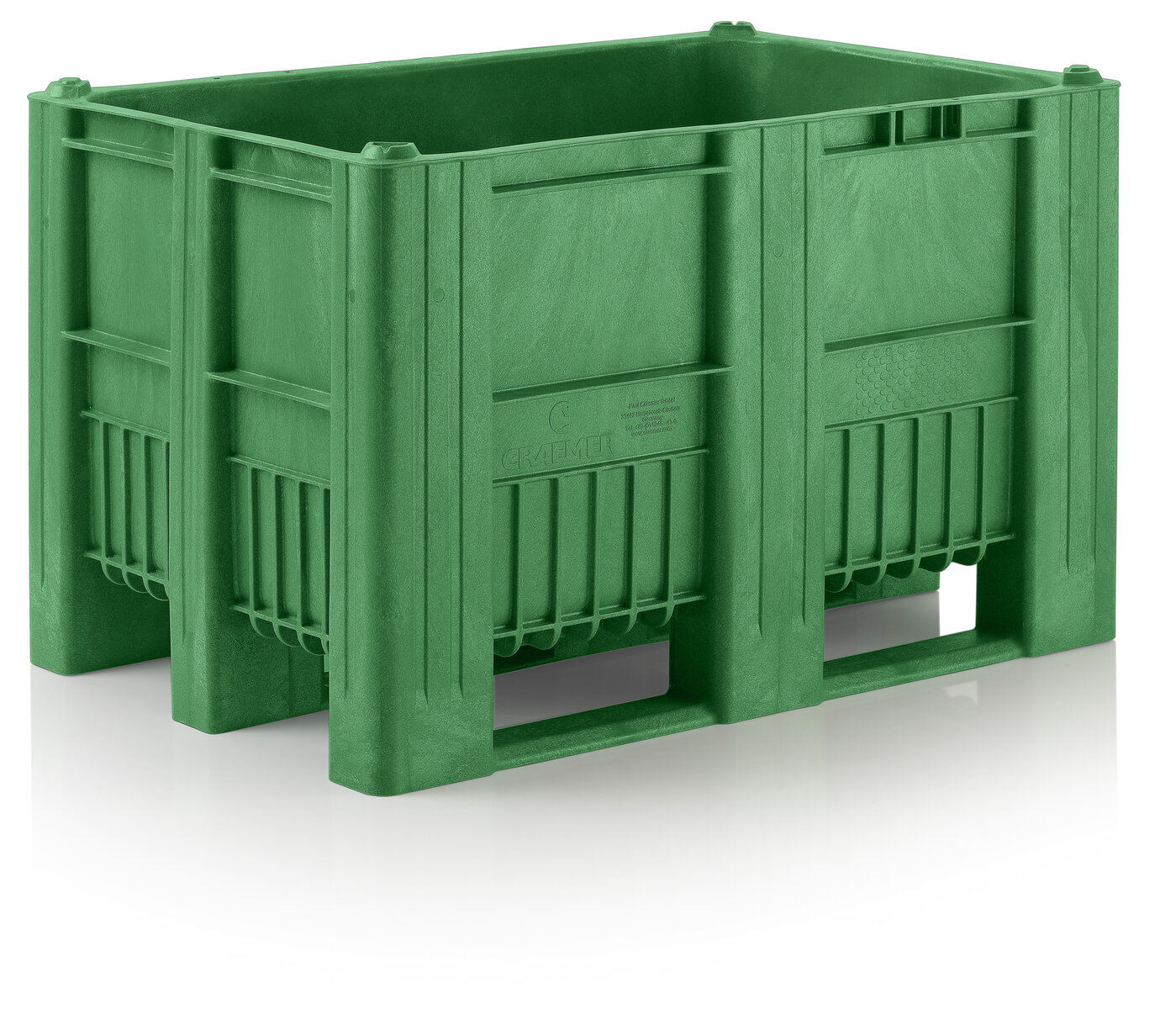

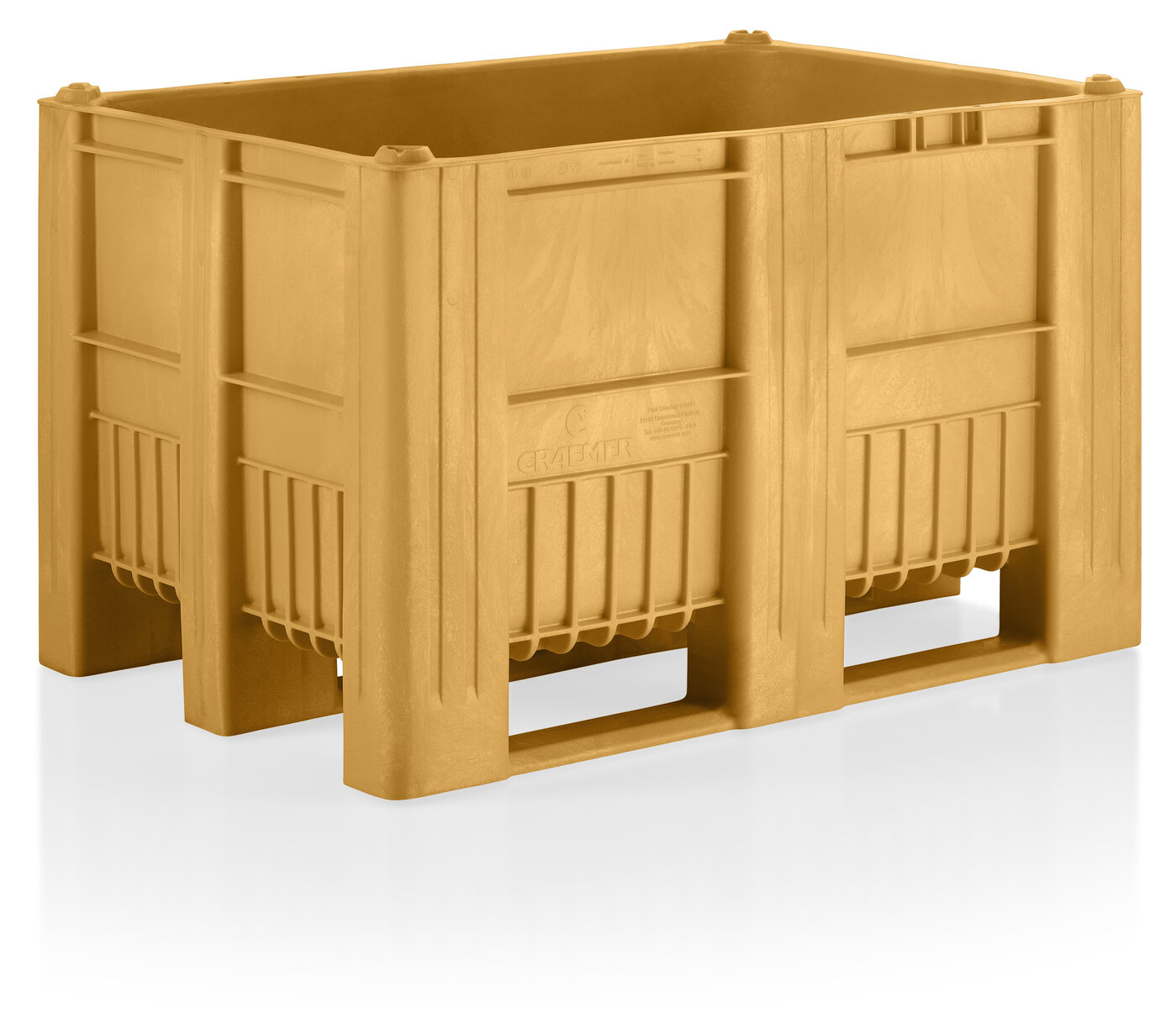

The CB1 pallet box from Craemer is one-piece injection moulded with three runners, making it highly robust. Further impact protection and resistance to forklift tines is provided by additional ribs over the entry openings of the closed exterior walls. The seamless construction and smooth interior walls of this large load carrier ensure easy emptying, simple cleaning and good drying capabilities. The CB1 is resistant to most chemicals and cleaning agents and able to withstand temperatures from -30 to +40 degrees Celsius, even +90 degrees for short periods of time. Integrated stacking cams on the outer corners give stacked pallet boxes a secure hold.

Characteristics:

One-piece injection moulded with 3 runners
Closed walls
Strong runner connection
Additional ribs for ram protection and increased resistance to forklift tines
Integrated interlocking corners for secure stacking (stacking cams)
Smooth interior walls for easy emptying and cleaning
Stippled area for temporary adhesive labels
Based on DIN EN 13626 and DIN EN ISO 12048

Options:

RFID Transponder
Lid
Individual printing
Available in various colours

Product enquiry

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
83381800	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	basalt grey	3, unwelded
83381810	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
83381310	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	blue	3, unwelded
83381300	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light blue	3, unwelded
83381910	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	red	3, unwelded
83381410	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	yellow	3, unwelded
83381500	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	green	3, unwelded
83381700	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded

Further links:

Landing page

Data sheet (PDF)

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
83381800	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	basalt grey	3, unwelded
83381810	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
83381310	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	blue	3, unwelded
83381300	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light blue	3, unwelded
83381910	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	red	3, unwelded
83381410	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	yellow	3, unwelded
83381500	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	green	3, unwelded
83381700	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded

Art. no.: 83381800
Colour: basalt grey
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381810
Colour: light grey
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381310
Colour: blue
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381300
Colour: light blue
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381910
Colour: red
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381410
Colour: yellow
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381500
Colour: green
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381700
Colour: light brown
Volume: 470 l
Runners: 3, unwelded

Technical Data *¹

Dimensions (mm)	1200 x 800 x 740
Internal Dimensions L x W x H (mm)	1115 x 715 x 595
Temperature stability	-30 °C to +40 °C, briefly up to +90 °C

Art. no.	Weight (kg)	Volume	Stacking Load* ³	Holding Capacity* ³	Dynamic Load ³	Colour	Runners
83381800	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	basalt grey	3, unwelded
83381810	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light grey	3, unwelded
83381310	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	blue	3, unwelded
83381300	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light blue	3, unwelded
83381910	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	red	3, unwelded
83381410	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	yellow	3, unwelded
83381500	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	green	3, unwelded
83381700	34.5 kg	470 l	5,000 kg	700 kg	1,200 kg	light brown	3, unwelded

*1:

All technical data include characteristic features, which have been tested under specially defined conditions. Varying data may result from different conditions of usage such as loading method, prevailing temperature and length of storage time. All data and specified information are subject to change without notice. Our service team is pleased to be at your disposal to check the special requirements of your individual application.

*2:

Our service team is pleased to be at your disposal if you require exact information about material compositions.

*3:

Stacking Load: With a maximum stacking height of 6 boxes (5 on 1 stacking) and evenly distributed load at approx. 20 °C.

Dynamic Load: on a forklift with an evenly distributed load at a room temperature of approx. 20 °C.

Technical Data *¹

Art. no.: 83381800
Colour: basalt grey
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381810
Colour: light grey
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381310
Colour: blue
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381300
Colour: light blue
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381910
Colour: red
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381410
Colour: yellow
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381500
Colour: green
Volume: 470 l
Runners: 3, unwelded

Art. no.: 83381700
Colour: light brown
Volume: 470 l
Runners: 3, unwelded
Technical drawings

CB1

Loading quantities (Pcs / Approximate amount)

Container	Container 20': 33 Pcs. Container 40' High Cube: 75 Pcs. Conventional trailer 45’ high cube container: 99 Pcs.
Truck	MEGA Trailer: 99 Pcs. Jumbo: 114 Pcs.

Labeling options
Customised printing and numbering available on request depending on quantity. Position upon consultation.
